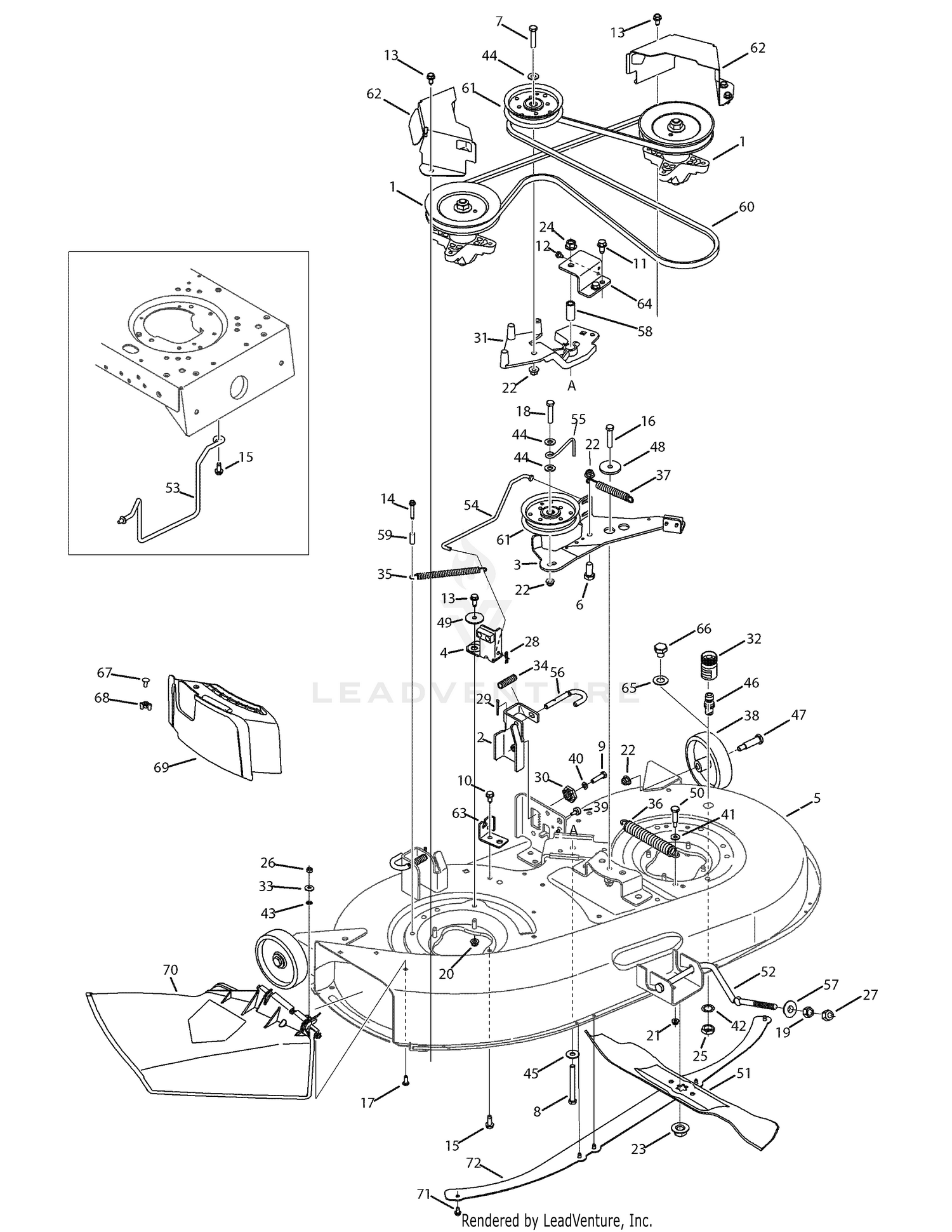

| Ref | Part Number | Description |
|---|
| 1 |
918-04456B |
SPINDLE ASSEMBLY This part replaces 618-04456. Price: $119.59 |
| 2 |
683-0254B |
Deck Hanger Bracket Assy. LH Not Available Price: |
| 4 |
983-04167 |
Deck Brake Assembly This part replaces 683-04167. Price: $41.74 |
| 5 |
983-04261 |
Deck Ass’y 42" w/wh. brkt This part replaces 683-04261. Price: $474.33 |
| 6 |
710-0216 |
Screw, 3/8-16 x .75 GR5 STD Price: $3.93 |
| 7 |
710-0347 |
Screw, 3/8-16 x 1.75 GR5 STD Price: $4.39 |
| 8 |
710-0510 |
Screw, 7/16-20 x 3.00 GR5 STD Price: $9.78 |
| 9 |
710-0528 |
Screw, 5/16-18 x 1.25 GR5 STD Price: $3.90 |
| 10 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 11 |
710-0623 |
Screw, 3/8-16 x 0.750 Price: $3.93 |
| 12 |
710-0653 |
Screw, 1/4-20 x 0.375 Price: $3.78 |
| 13 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 14 |
710-0778 |
Screw, 1/4-20 x 1.500 Price: $3.90 |
| 15 |
710-1260A |
Screw, 5/16-18 x 0.750 Price: $3.34 |
| 16 |
710-3005 |
Screw, 3/8-16 x 1.25 Price: $3.61 |
| 17 |
710-3015 |
Screw, 1/4-20 x .75 Price: $3.65 |
| 18 |
710-3144 |
Screw, 3/8-16 x 2.00 Price: $4.02 |
| 19 |
712-0206 |
HEX NUT This part replaces 7120206. Price: $3.90 |
| 20 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 21 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 22 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 23 |
712-0417A |
HEX NUT Price: $6.50 |
| 24 |
712-0459 |
Flange Lock Nut, 7/16-20 Price: $4.39 |
| 25 |
712-0641 |
Hex Nut, M16-1.5 DIN 936 Price: $5.58 |
| 26 |
712-3006 |
HEX NUT Price: $4.05 |
| 27 |
712-3083 |
Hex Lock Nut, 1/2-13 Price: $4.05 |
| 28 |
714-0104 |
Cotter Pin, .072 Dia. x 1.13 Lg. Price: $3.90 |
| 29 |
714-0470 |
Cotter Pin, 1/8 x 1.25 Price: $3.90 |
| 30 |
917-04074 |
Adjustment, Deck, Gear This part replaces 717-04074. Price: $11.45 |
| 31 |
719-04233-0637 |
Idler Bracket, Cast 42" DECK This part replaces 719-04233. Price: $62.92 |
| 32 |
921-04041 |
WATER NOZZLE This part replaces 721-04041. Price: $20.19 |
| 33 |
726-0233 |
Push Nut, .25 ID x .50 OD Price: $3.93 |
| 34 |
932-0306A |
COMPRESSION SPRING This part replaces 732-0306A. Price: $7.69 |
| 35 |
732-04287 |
Extension Spring, .500 x 6.375 Price: $14.19 |
| 36 |
732-0459C |
Extension Spring, .94 x 6.74 Price: $16.05 |
| 37 |
932-0470A |
Extension Spring, .53 x 4.75 This part replaces 732-0470A. Price: $9.14 |
| 38 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 39 |
735-0271A |
Bumper, .62 Dia. x .3 Price: $7.84 |
| 40 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 41 |
736-0173 |
Flat Washer, .28 x .74 x .063 Price: $3.76 |
| 42 |
736-0225 |
Lock Washer, 5/8 Price: $3.90 |
| 43 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 44 |
736-0300 |
Flat Washer, .406 x .875 x .059 Price: $3.93 |
| 45 |
736-0322 |
Flat Washer, .450 x 1.250 x .164 Price: $8.42 |
| 46 |
737-04003D |
Deck Water Nozzle Price: $20.69 |
| 47 |
938-0373 |
Shoulder Bolt, .496 x 1.525:3/8-16 This part replaces 738-0373. Price: $8.45 |
| 48 |
738-04162C |
Shoulder Spacer, .8840 x .190 This part replaces 738-04162A. Price: $12.76 |
| 49 |
738-04166 |
Shoulder Spacer, .5000 X .1475 Price: $5.48 |
| 50 |
738-04272 |
SHOULDER SCREW:.374 DIA x 1.16 LG Not Available Price: |
| 51 |
942-0616A |
Blades This part replaces 742-0616A. Price: $29.15 |
| 52 |
747-04269A |
Adjustible Front Deck Rod, Price: $25.65 |
| 54 |
747-04501 |
BRAKE CONTROL ROD Not Available Price: |
| 55 |
747-04530 |
BELT KEEPER ROD Price: $6.33 |
| 56 |
747-1116 |
Deck Release Handle Rod Price: $11.17 |
| 57 |
748-04069A |
DECK LIFT PIVOT CUP This part replaces 748-04069. Price: $4.93 |
| 58 |
750-04637B |
Spacer, .455 X .697 X 1.585 Price: Call Us |
| 59 |
750-0566A |
Spacer, .260 x .372 x 1.030 Price: $9.17 |
| 60 |
954-04045 |
Deck Spindle Belt This part replaces 754-04045. Price: $52.99 |
| 61 |
753-08171 |
Pulley Kit, Idler, 4.25"Dia This part replaces 756-04129. Price: $33.06 |
| 62 |
783-04327B |
Belt Covers, 6.00 DIA Price: $20.21 |
| 63 |
783-04740 |
Cable Deck Engage Bracket Price: $7.35 |
| 64 |
783-05490 |
SUPPORT BRACKET Not Available Price: |
| 65 |
736-0187 |
Flat Washer, .64 x 1.24 x .06 Price: $4.02 |
| 66 |
738-04146 |
Bolt Plug, M16 x 1.5 Price: $8.02 |
| 67 |
710-0134 |
Carriage Screw, 1/4-20 x .62 Price: $3.71 |
| 68 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
| 69 |
731-2363 |
Mulch Plug Price: $25.67 |
| 70 |
631-05229 |
CHUTE ASSEMBLY This part replaces 731-1032B. Price: $71.37 |
| 71 |
710-0599 |
Screw, Hex, 1/4-20, 0.500 Price: $3.86 |
