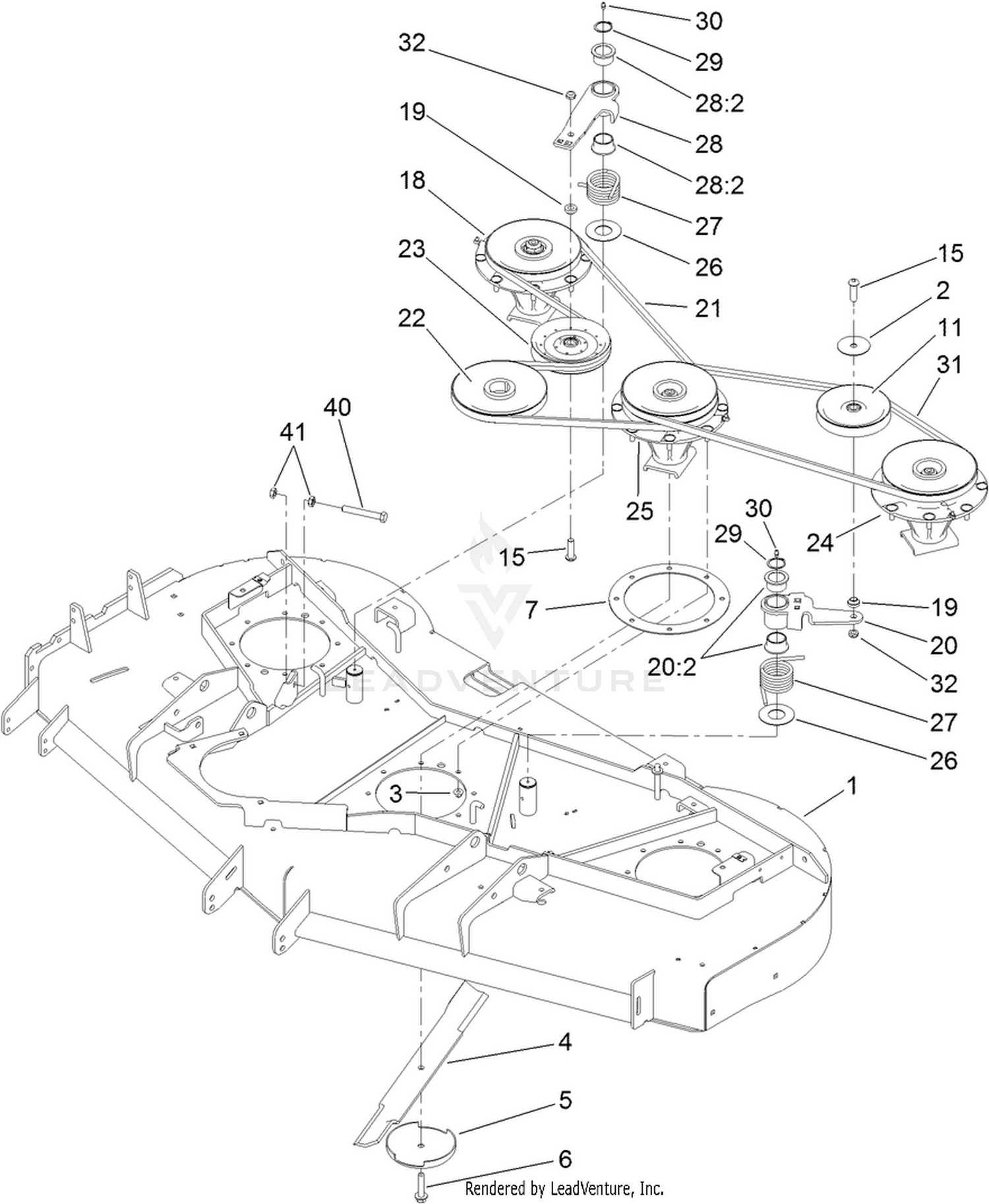

| Ref | Part Number | Description |
|---|
| 1 |
127-6481 |
DECK ASM Price: $5,261.34 |
| 2 |
100-3102 |
WASHER-FLAT Price: $3.70 |
| 3 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 4 |
110-0621-03 |
BLADE-MEDIUM FLOW Price: $38.49 |
| 4 |
110-0622-03 |
BLADE-ROTARY, HIGH FLOW Price: $38.49 |
| 4 |
110-0624-03 |
BLADE-ROTARY, ATOMIC Price: $43.26 |
| 5 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 6 |
92-5816 |
BOLT-BLADE Price: $4.93 |
| 7 |
120-6603-0P |
RING-DOUBLER This part replaces 120-6603-03. Price: $30.72 |
| 11 |
140-5847 |
PULLEY-IDLER This part replaces 01-268-0160. Price: $98.46 |
| 15 |
108-1993 |
SCREW-HSBH Price: $3.66 |
| 18 |
138-1930 |
LOW DRIVEN SPINDLE ASM This part replaces 119-4778. Price: $605.97 |
| 19 |
108-1924 |
SPACER-IDLER Price: $11.13 |
| 20 |
140-7079 |
IDLER ARM ASM This part replaces 117-9176. Price: $49.85 |
| 21 |
110-9590 |
BELT-V Price: $68.24 |
| 22 |
107-4767 |
PULLEY Price: $234.90 |
| 23 |
132-9421 |
PULLEY-IDLER, FLAT This part replaces 110-9596. Price: $41.10 |
| 24 |
139-1032 |
HIGH DRIVEN SPINDLE ASM This part replaces 117-9233. Price: $537.23 |
| 25 |
139-1033 |
DOUBLE DRIVEN SPINDLE ASM This part replaces 117-9234. Price: $537.23 |
| 26 |
108-1926 |
WASHER Price: $5.30 |
| 27 |
108-1921 |
SPRING-TORSION Price: $28.33 |
| 28 |
140-7078 |
IDLER ARM ASM This part replaces 108-1930. Price: $49.85 |
| 29 |
32120-84 |
RING-SNAP, EXTERNAL Price: $0.61 |
| 30 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 31 |
110-9591 |
BELT-V Price: $61.05 |
| 32 |
3296-45 |
NUT-HEX Price: $3.79 |
| 40 |
325-14 |
SCREW-HH Price: $2.64 |
