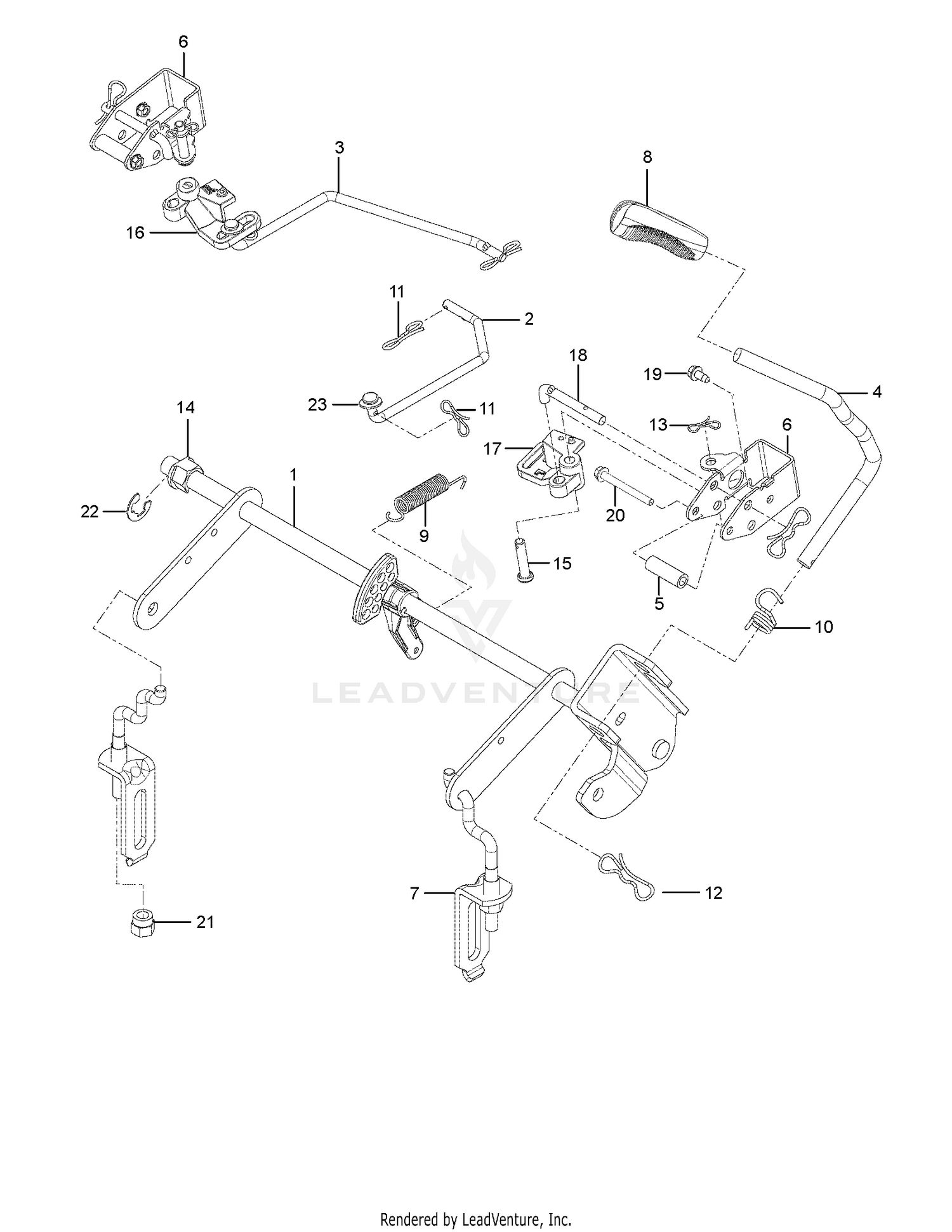

| Ref | Part Number | Description |
|---|
| 1 |
586429702 |
SHAFT ASSY DECK LIFT WELDMENT Price: $59.99 |
| 2 |
586457101 |
LINK.BRAKE.PARK.UPPER.LH Price: $8.99 |
| 3 |
586457201 |
LINK.BRAKE.PARK.UPPER.RH Price: $8.99 |
| 4 |
586428702 |
Supports This part replaces 586428701. Price: $17.99 |
| 5 |
580486102 |
Spacers This part replaces 580486101. Price: $3.99 |
| 7 |
587623001 |
LINK.ASM.RZ.LIFT.SERVICE Price: $9.99 |
| 8 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK This part replaces 580962301. Price: $7.99 |
| 9 |
547190203 |
BRAKE SPRING This part replaces 586867601. Price: $2.99 |
| 10 |
532196314 |
SPRING.TORSION.LIFT.HANDLE Price: $3.99 |
| 11 |
587225301 |
PIN COTTER;LOCKING;BOWTIE;1IN Price: $2.99 |
| 12 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 13 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 14 |
510184901 |
PLASTIC NUT Price: $4.99 |
| 15 |
585701401 |
PIN.5.16X1.5 Price: $2.99 |
| 18 |
585682001 |
ROD.PUSH.BRAKE Price: $2.99 |
| 19 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 20 |
586561301 |
SCREW THD;ROLL;1/4-20 X 2.25 Price: $12.99 |
| 21 |
589464902 |
NUT.LIFT LNK.7/16-2 This part replaces 532175994. Price: $3.99 |
| 22 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 23 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
