| Ref | Part Number | Description |
|---|
| 1 |
165892X421 |

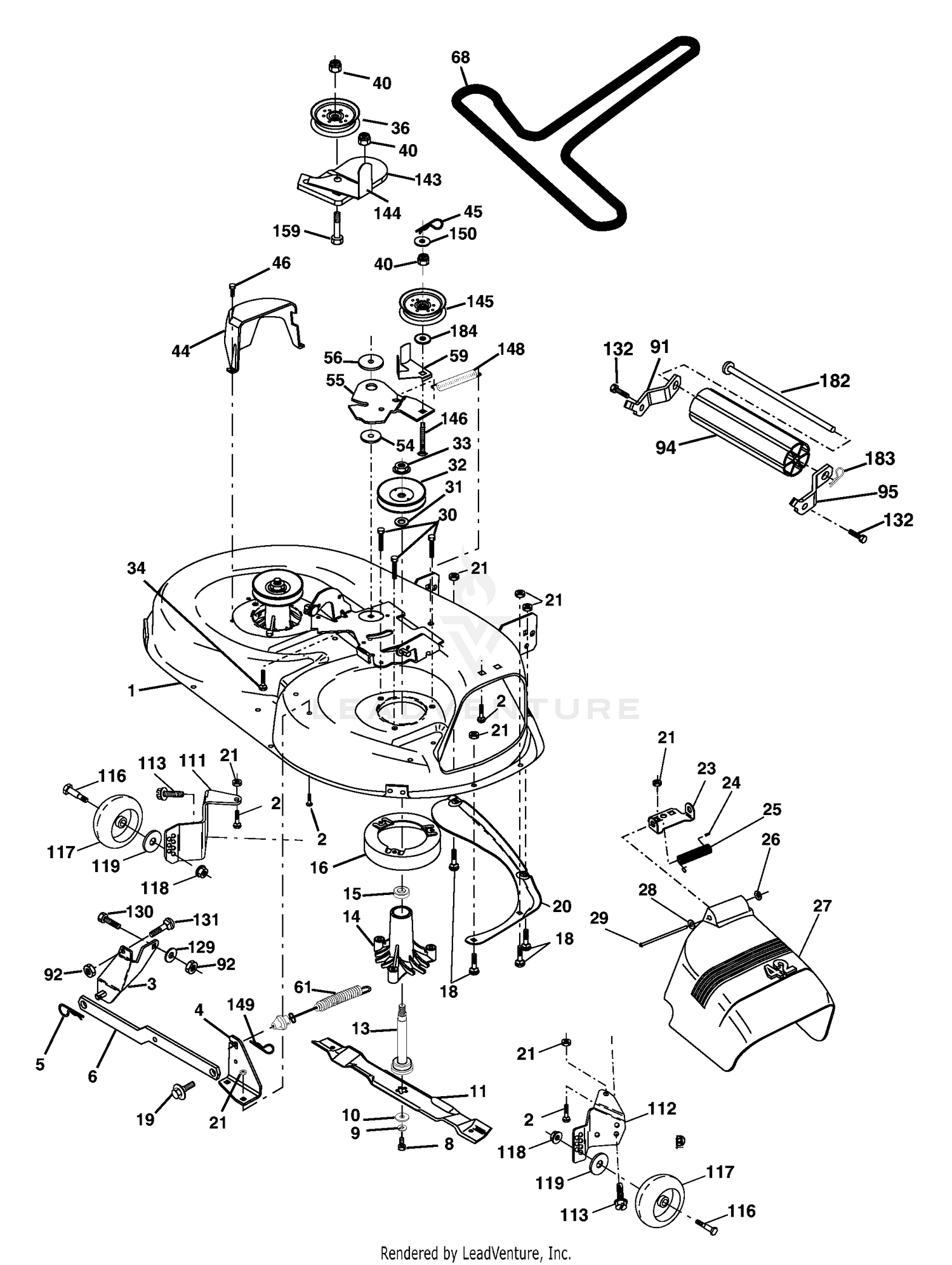

Mower Deck Assembly, 42" Price: Call Us |
| 1 |
69-3150 |
SCREW Price: $2.17 |
| 2 |
69-3070 |
WASHER Price: $0.28 |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
107-4379 |
CYLINDER BLOCK KIT This part replaces 69-3910. Price: $2,151.85 |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 4 |
69-3500 |
BEARING-SLEEVE Price: $472.61 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 5 |
69-3510 |
PIN Price: $29.51 |
| 6 |
107-4354 |
COVER-FRONT Price: $1,302.74 |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 7 |
76-4590 |
SCREW Price: $5.43 |
| 8 |
69-3200 |
RING-RETAINING Price: $20.29 |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Gr. 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
69-3190 |
SEAL-LIP Price: $94.91 |
| 10 |
95-4400 |
WASHER-BACKUP Price: $7.74 |
| 11 |
69-3170 |
RING-RETAINING Price: $11.40 |
| 12 |
75-0460 |
BEARING-BALL This part replaces 69-3210. Price: $175.71 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 13 |
69-3960 |
SCREW Price: $5.90 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
69-3970 |
BEARING-JOURNAL Price: $392.61 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
94-2878 |
PIN This part replaces 69-3520. Price: $9.76 |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 16 |
69-3980 |
SWASHPLATE Price: $589.79 |
| 17 |
69-3950 |
SHAFT-MOTOR Price: $816.22 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 18 |
76-4600 |
GASKET-COVER, FRONT Price: $81.78 |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 20 |
69-3990 |
PLATE-VALVE, MOTOR Price: $406.84 |
| 21 |
136-1026 |
PLUG ASM This part replaces 69-3940. Price: $9.75 |
| 21 |
73680500 |
Nut Price: Call Us |
| 22 |
69-3720 |
COVER-SERVO Price: $406.84 |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 23 |
69-3710 |
GASKET-SERVO Price: $58.74 |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 25 |
69-3920 |
PISTON RING AND O-RING KIT Price: $181.90 |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 26 |
69-3450 |
PIN Price: $3.33 |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 27 |
69-3370 |
BEARING-NEEDLE Price: $49.67 |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 28 |
69-3230 |
PIN-SPRING Price: $24.22 |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 29 |
69-3130 |
PLUG Price: $62.97 |
| 30 |
173984 |
Screw Thdrol Price: Call Us |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 31 |
69-4020 |
PISTON-SERVO Price: $565.06 |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 32 |
69-4030 |
SPRING-SERVO Price: $113.55 |
| 33 |
178342 |
Nut, Toplock Price: Call Us |
| 34 |
72110612 |
Bolt Carr SH 3/8-16 x 1-1/2 Gr.5 Price: Call Us |
| 36 |
173438 |
Pulley, Idler, Flat Price: Call Us |
| 40 |
73900600 |
Nut Lock 3/8-16 Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
122052X |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard TUV Idler Price: Call Us |
| 61 |
174882 |
Spring Ext Elect. Clutch Price: Call Us |
| 68 |
180260 |
V-Belt, 42" Mower Price: Call Us |
| 91 |
180532 |
Bracket Roller Nose LH Price: Call Us |
| 92 |
73800600 |
Nut Lock Hex w/Ins 3/8-16 unc Price: Call Us |
| 94 |
132264 |
Roller Nose Price: Call Us |
| 95 |
180533 |
Bracket Roller Nose RH Price: Call Us |
| 111 |
179292 |
Bracket Wheel Gauge LH Price: Call Us |
| 112 |
179293 |
Bracket Wheel Gauge RH Price: Call Us |
| 113 |
17000510 |
Screw 5/16-18 Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
188606 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 129 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 130 |
74780616 |
Bolt Fin HEx 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 131 |
72140608 |
Bolt RDHD SQNK 3/8-16 unc x 1 Price: Call Us |
| 132 |
17000612 |
Screw Hexwsh Thdr 3/8-16 x 3/4 Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
173441 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
173437 |
Pulley Idler Flat Price: Call Us |
| 146 |
173443 |
Bolt Carriage Idler Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 182 |
179126 |
Rod Roller Nose Price: Call Us |
| 183 |
163552 |
Retainer Spring Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
