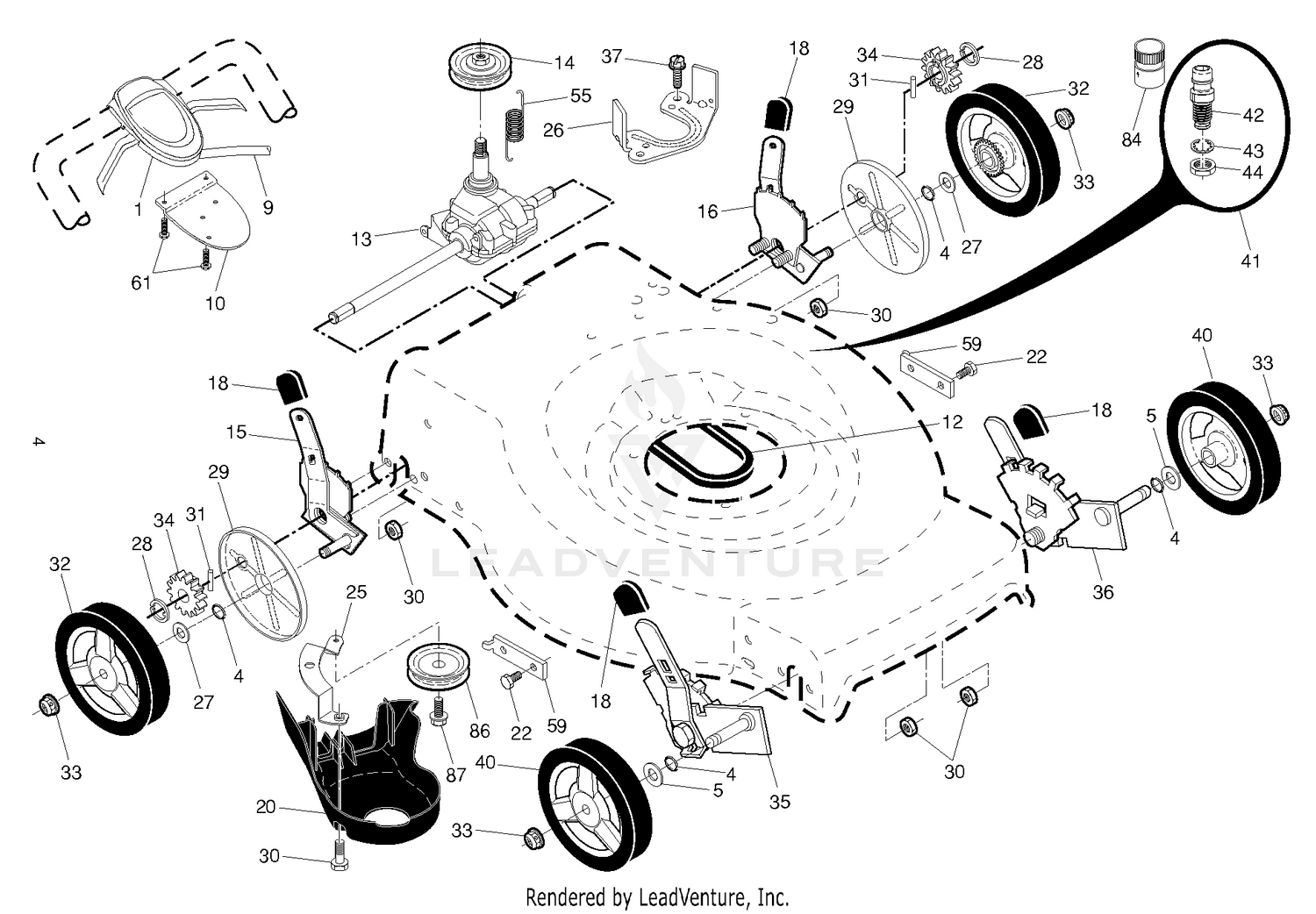

| Ref | Part Number | Description |
|---|
| 1 |
3220-3 |
NUT-HJ Price: $0.28 |
| 1 |
589818808 |
CONTROL.DR.AW2.22+.BLK.GEN This part replaces 581950501. Price: $39.99 |
| 2 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 3 |
323-9 |
SCREW-HH Price: $1.29 |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 4 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 5 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 5 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 6 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 7 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 8 |
75-3270-03 |
HUB-PIVOT, TRACTION This part replaces 75-3270. Price: $144.73 |
| 9 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 9 |
581952101 |
CABLE.DRIVE.RWD.WALK. Price: $29.99 |
| 10 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 10 |
532432790 |
BRACKET.DRIVE.CONTR.GEN2.BLACK Price: $3.99 |
| 11 |
49-6440-03 |
PEDAL-FORWARD This part replaces 49-6440. Price: $84.90 |
| 12 |
580364611 |
BELT V3L 35.42, CLUTCHING COVE This part replaces 532406557. Price: $8.99 |
| 12 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 13 |
581680801 |
TRANSMISSION.22+AWD.WALK.MOWER Price: $129.99 |
| 13 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 14 |
532194128 |
PULLEY Price: $17.99 |
| 14 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 16 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 17 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 18 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 18 |
93-6699 |
DECAL-FAST / SLOW Price: $18.07 |
| 19 |
233-42 |
KNOB Price: $12.88 |
| 20 |
580806901 |
COVER.REAR.DRIVE.22+2013 Price: $19.99 |
| 20 |
75-6490 |
LEVER ASM Price: $78.45 |
| 21 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 22 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 22 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 23 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 24 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 25 |
581313802 |
BRACKET.DRIVE.COVER.RGD. Price: $9.99 |
| 26 |
589318302 |
BRACKET.TRANS.BELTKEEP.21 RWD This part replaces 532426066. Price: $2.99 |
| 26 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 27 |
532067725 |
WASHER FLUT Price: $5.99 |
| 28 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 29 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK Price: $5.99 |
| 29 |
63-7733 |
LH BRAKE CABLE ASM Price: $210.39 |
| 30 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 30 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 31 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 31 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 32 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 32 |
581685101 |
WHEEL.8X1.75.3SPK.RAD3.GREY Price: $24.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 33 |
75-1440-03 |
PEDAL-BRAKE, LH This part replaces 75-1440. Price: $207.74 |
| 34 |
256-42 |
BUSHING Price: $7.03 |
| 34 |
532404835 |
PINIION.14.TOOTH.RGD Price: $5.99 |
| 35 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 36 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 37 |
532163409 |
SCREW Price: $3.99 |
| 37 |
75-2170-03 |
TUBE-CONTROL, PUMP This part replaces 75-2170. Price: $103.73 |
| 38 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 39 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 40 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 41 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 41 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK Price: $14.99 |
| 42 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK This part replaces 532434994. Price: $14.99 |
| 43 |
532415585 |
WASHER.LOCK.INTERNAL.TOOTH Price: $2.99 |
| 44 |
532415586 |
LOCKNUT.HEX.WITH.O-RING Price: $4.99 |
| 55 |
581351301 |
SPRING.RETURN.AUTO. Price: $4.99 |
| 59 |
532442113 |
BRACKET.SUPPORT.22+RWGD.BZP Price: $3.99 |
| 61 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 84 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
| 86 |
587969201 |
PULLEY.RWD.IDLER.DBL SEAL This part replaces 580364301. Price: $12.99 |
| 87 |
581127601 |
SCREW Price: $6.99 |
