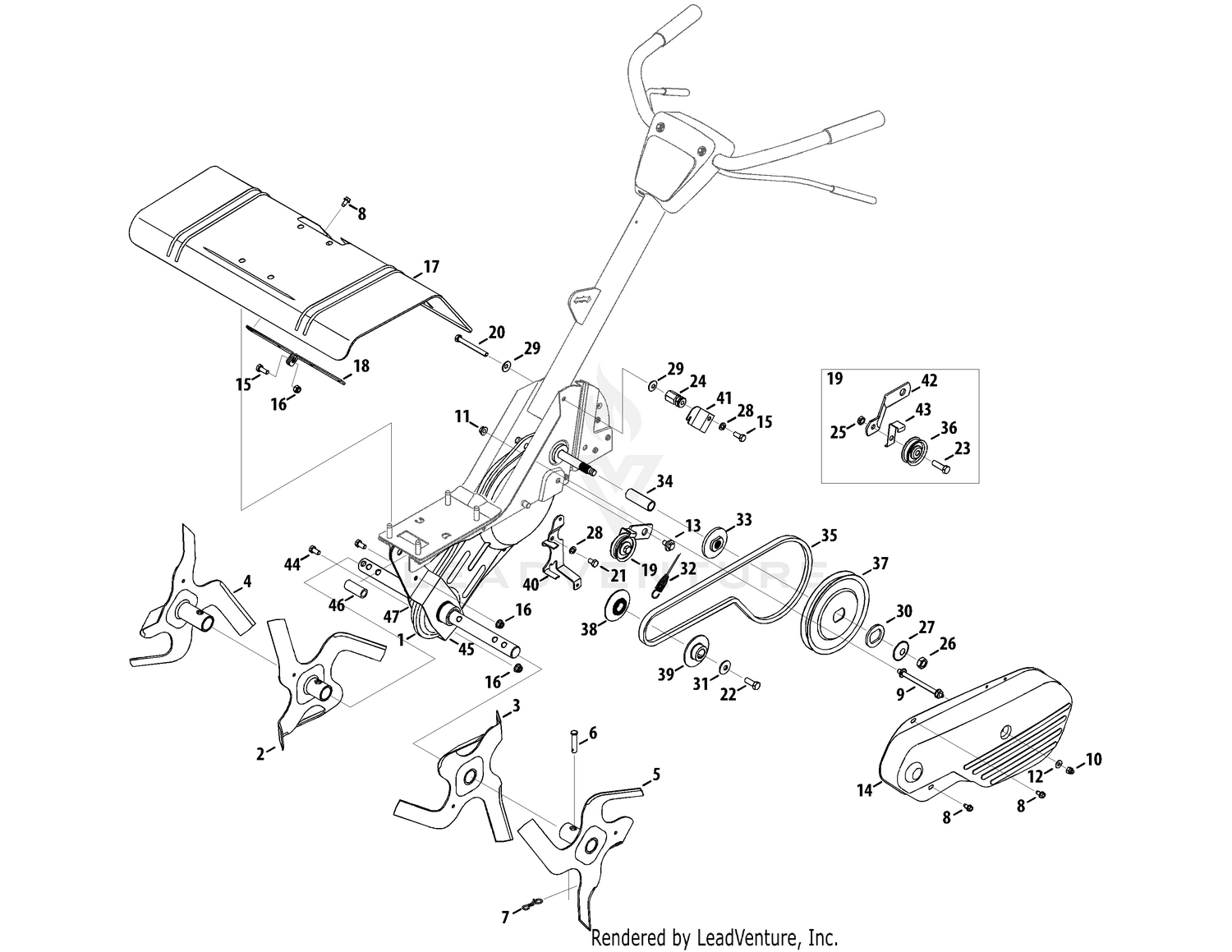

| Ref | Part Number | Description |
|---|
| 1 |
986-0091C |
CHAIN CASE This part replaces 986-0103. Price: $454.58 |
| 2 |
642-04104-5083 |
BOLO TINE ASSEMBLY (INNER) (RH) (LIBERTY RED) This part replaces 642-04104-0638. Price: $51.46 |
| 3 |
642-04103-5083 |
BOLO TINE ASSEMBLY (INNER) (LH) (LIBERTY RED) This part replaces 642-04103-0638. Price: $51.46 |
| 4 |
642-04106-5083 |
BOLO TINE ASSEMBLY (OUTER) (RH) (LIBERTY RED) This part replaces 642-04106-0638. Price: $51.46 |
| 5 |
642-04105-5083 |
BOLO TINE ASSEMBLY (OUTER) (LH) (LIBERTY RED) This part replaces 642-04105-0638. Price: $51.46 |
| 6 |
711-0415 |
Clevis Pin, 3/8 x 1.75 This part replaces 911-0415. Price: $4.04 |
| 7 |
714-04043 |
Bow Tie Cotter Pin Price: $4.24 |
| 8 |
710-0599 |
Screw, 1/4-20 x 0.500 Price: $3.86 |
| 9 |
711-0919 |
Bolt, Belt Cover Price: $16.72 |
| 10 |
712-0392 |
Nut, 1/4-28, Lock Price: $6.01 |
| 11 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 12 |
736-3020 |
Flat Washer .271 ID x .630 OD This part replaces 936-3020. Price: $5.94 |
| 13 |
738-0930 |
Shoulder Screw, .560 x .165 5/16-18 Price: $6.07 |
| 14 |
786-0056-0638 |
Belt Cover Price: $81.33 |
| 15 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 16 |
712-04063 |
Nut, 5/16-18, Flange Lock Price: $3.56 |
| 17 |
786-0043A-0638 |
Tine Shield Price: $128.27 |
| 18 |
786-0053-0637 |
Bracket, Tine Shield Price: $9.28 |
| 19 |
686-0088 |
Idler Bracket Assembly Price: $126.17 |
| 20 |
710-0189 |
Hex Head Screw, 5/16-18 x 3.00 Price: $5.30 |
| 21 |
710-0237 |
Hex Head Screw, 5/16-24 x .625 Price: $3.93 |
| 22 |
710-1039 |
Hex Head Screw, 3/8-24 x 1.00 Price: $4.02 |
| 23 |
710-3005 |
Hex Head Screw, 3/8-16 x 1.25 Price: $3.61 |
| 24 |
711-1036A |
Hex Nut, 5/16-18 Price: $15.34 |
| 25 |
712-0266A |
Jamlock Nut, 3/8-16 Price: $3.43 |
| 26 |
712-3029 |
Nut, 1/2-20, Jam Price: $6.01 |
| 27 |
736-0112 |
Washer, .531 x 1.62 x .045 Price: $8.48 |
| 28 |
936-0119 |
Lock Washer, 5/16 Price: $4.29 |
| 29 |
736-0242 |
Bell Washer, .340 x .872 x .060 Price: $3.75 |
| 30 |
736-0312 |
Flat Washer, 1.26 x 1.87 x .150 Price: $3.50 |
| 31 |
736-0452 |
Bell Washer, .396 x 1.14 x .095 This part replaces 936-0452. Price: $4.05 |
| 32 |
946-0918 |
Forward Clutch Cable Price: $26.69 |
| 33 |
948-0350 |
Pulley Adaptor Price: $18.85 |
| 34 |
950-0892 |
Spacer, .64 ID x 2.4 Price: $9.85 |
| 35 |
954-0428 |
Belt, 4L x 41.9 LG Price: $32.28 |
| 36 |
756-0313 |
Pulley 1.88 OD Price: $24.48 |
| 37 |
756-0585 |
Pulley 6.00 OD Price: $36.43 |
| 38 |
756-0971 |
Inner Engine Pulley Price: $12.60 |
| 39 |
756-0972 |
Outer Engine Pulley Price: $14.17 |
| 40 |
786-0039B-0637 |
Belt Keeper Bracket Price: $42.14 |
| 41 |
786-0129-0637 |
Cable Guide Bracket Price: $23.79 |
| 42 |
786-0144-0637 |
Idler Bracket Price: $12.24 |
| 43 |
786-0149 |
Belt Keeper Price: $8.55 |
| 44 |
710-3025 |
Hex Head Screw, 5/16-18 x .625 Price: $3.64 |
| 45 |
786-0161-0637 |
CHAIN CASE BRACKET Not Available Price: |
| 46 |
N/A |
Spacer, .505 ID x .75 OD x 1.75 |
