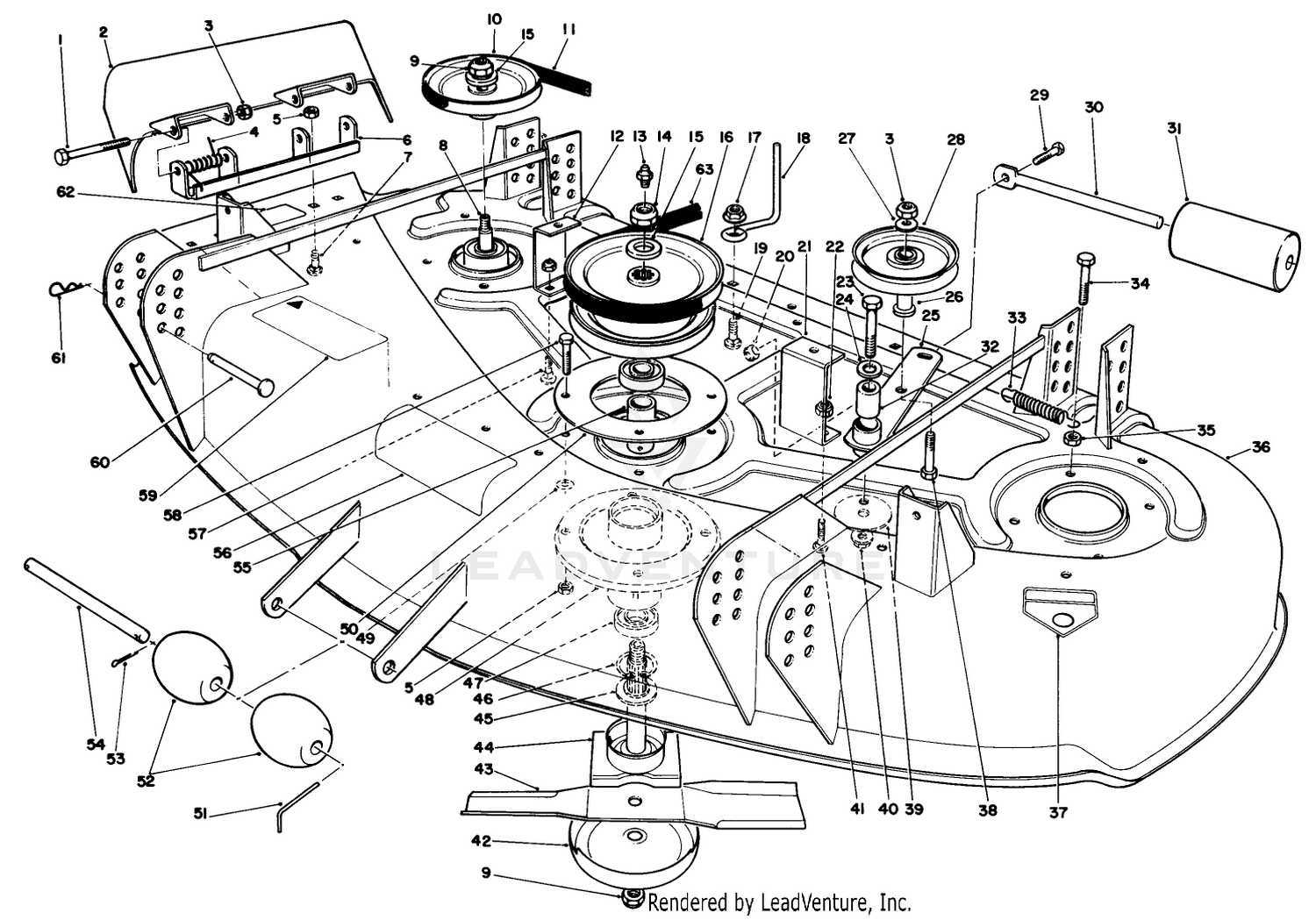

| Ref | Part Number | Description |
|---|
| 1 |
3211-15 |
SCREW-HH Price: $7.99 |
| 2 |
57-6970 |
Deflector-Grass Price: Call Us |
| 3 |
3296-5 |
NUT-HEX Price: $3.09 |
| 4 |
40-6230 |
SPRING Price: $37.99 |
| 5 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 6 |
55-8320 |
PIVOT BRKT WA *R/*B Price: $51.40 |
| 7 |
3230-18 |
SCREW-CARR Price: $4.09 |
| 8 |
47-0094 |
SPDL/BLD RET.WA Price: Call Us |
| 9 |
3296-41 |
NUT-LOCK NI Price: $5.49 |
| 10 |
55-7690 |
DECK PULLEY Price: Call Us |
| 11 |
27-1160 |
V-BELT Price: $51.80 |
| 12 |
54-3230-03 |
RH COVER BRACKET ASM This part replaces 54-3230. Price: $26.34 |
| 13 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 14 |
3296-63 |
NUT-LOCK, NI Price: $1.02 |
| 15 |
62-5420 |
WASHER Price: $39.26 |
| 16 |
57-4140 |
PULLEY WA Price: Call Us |
| 17 |
32128-13 |
NUT-HF Price: $1.79 |
| 18 |
52-4780 |
ROD-BELT Price: $13.99 |
| 19 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 21 |
54-3240-03 |
LH COVER BRACKET ASM This part replaces 54-3240. Price: $26.34 |
| 22 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 23 |
323-11 |
SCREW-HH Price: $1.08 |
| 24 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 25 |
14-8649 |
IDLER ARM ASM This part replaces 54-2710. Price: $75.10 |
| 26 |
65-5950 |
BUSHING-PULLEY Price: $4.44 |
| 27 |
7-0081 |
WASHER-FLAT Price: $0.89 |
| 28 |
65-5940 |
PULLEY-IDLER Price: $35.61 |
| 29 |
322-3 |
SCREW-HH Price: $0.79 |
| 30 |
62-4480 |
ROD-ROLLER Price: $18.99 |
| 31 |
36-1740 |
ROLLER-DECK Price: $37.03 |
| 32 |
51-3640 |
SLEEVE Price: $9.66 |
| 33 |
54-2730 |
SPRING-EXTENSION Price: $21.99 |
| 34 |
322-6 |
SCREW-HH Price: $0.45 |
| 35 |
3218-2 |
NUT-JAM Price: $0.25 |
| 36 |
54-2900 |
Housing Price: Call Us |
| 37 |
43-8480 |
DECAL-DANGER Price: $6.49 |
| 38 |
3211-8 |
SCREW-HH Price: $3.50 |
| 39 |
20-9530 |
WASHER-END Price: $28.36 |
| 40 |
32128-21 |
NUT-HF Price: $0.39 |
| 41 |
3229-3 |
SCREW-CARR Price: $4.49 |
| 42 |
92-6313 |
CUP-SCALP, ANTI This part replaces 7-3522. Price: $30.28 |
| 43 |
54-0010-03 |
BLADE This part replaces 54-0010. Price: $22.97 |
| 44 |
57-4130 |
SPDL/BLD RET.WA Price: $229.91 |
| 45 |
62-5430 |
IDLER SPACER Price: $6.96 |
| 46 |
32151-75 |
RING-RETAINING This part replaces 32120-11. Price: $2.51 |
| 47 |
251-318 |
BEARING-BALL Price: $16.40 |
| 48 |
79-1050-03 |
HOUSING-SPINDLE This part replaces 60-9670. Price: $153.13 |
| 49 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 50 |
55-8280-01 |
DECK RING This part replaces 55-8280. Price: $32.20 |
| 51 |
57-0690 |
PIN-SPECIAL Price: $3.66 |
| 52 |
29-4820 |
ROLLER Price: $14.88 |
| 53 |
5272-11 |
Pin-Cotter Price: Call Us |
| 54 |
40-6400 |
SHAFT-ROLLER Price: $38.99 |
| 55 |
55-7680 |
BEARING SPACER Price: Call Us |
| 56 |
42-6860 |
DISCONTINUED Price: Call Us |
| 57 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 58 |
322-4 |
SCREW-HH Price: $0.35 |
| 59 |
42-6430 |
DISCONTINUED Price: Call Us |
| 60 |
283-55 |
PIN-CLEVIS Price: $11.14 |
| 61 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 62 |
26-7970 |
CAUTION DECAL (BLADE) Price: $14.83 |
| 63 |
54-2750 |
V-BELT, DRIVE Price: $41.57 |
