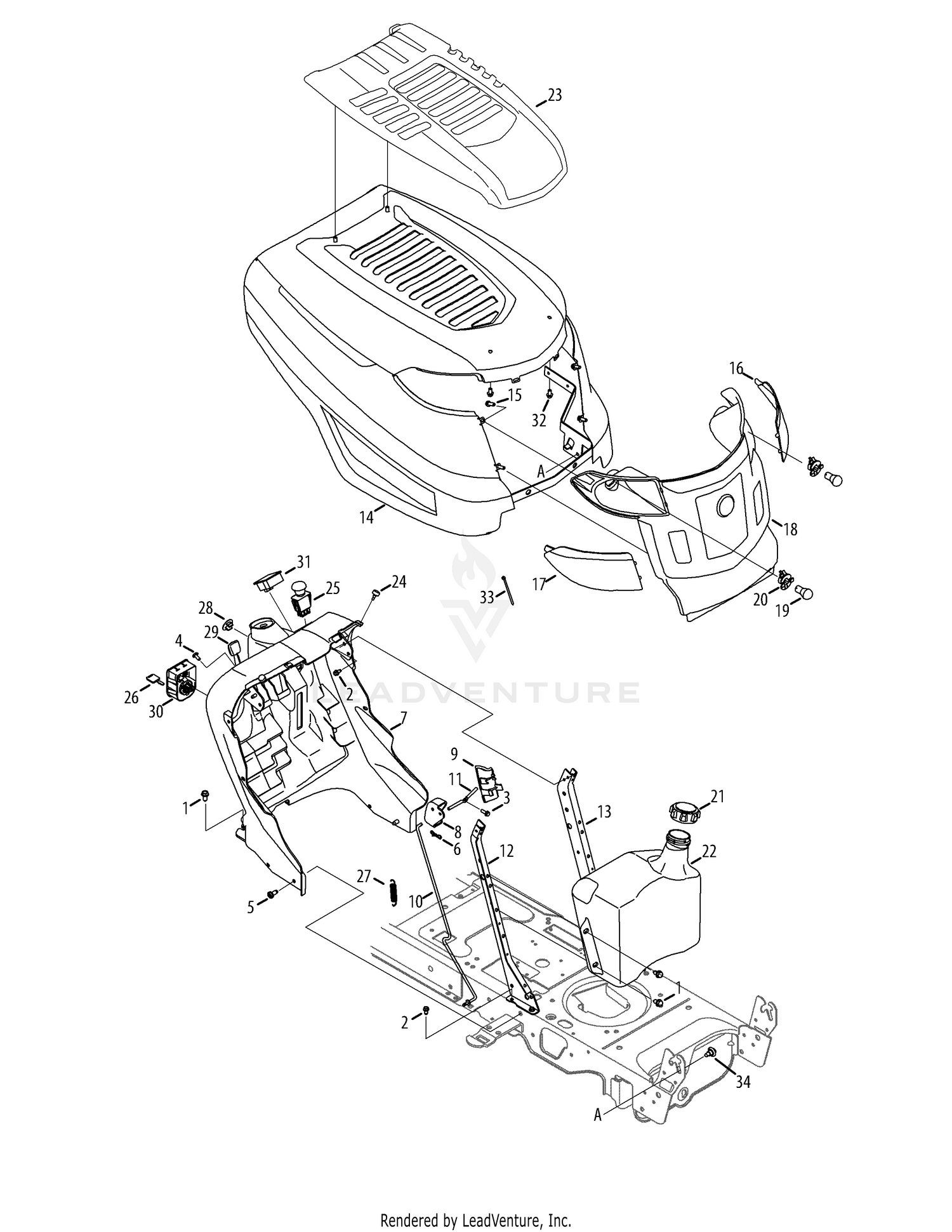

| Ref | Part Number | Description |
|---|
| 1 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 2 |
710-0599 |
Taptite Screw,1/4-20:0.500 Price: $3.86 |
| 3 |
710-0895 |
Hi-Lo Screw, 1/4-15:0.750 Price: $5.82 |
| 4 |
710-1017 |
Screw, 1/4-14:0.625 Price: $7.26 |
| 5 |
710-1611B |
Taptite Screw, 5/16-18:0.750 Price: $5.94 |
| 6 |
714-04040 |
Bow Tie Cotter Pin Price: $1.28 |
| 7 |
931-04664 |
DASH PANEL K-STYLE (ELECTRIC) Not Available Price: |
| 8 |
731-06639 |
PARK/BRAKE LEVER Not Available Price: |
| 9 |
731-06642 |
COVER PLATE Not Available Price: |
| 10 |
747-05008 |
PARK BRAKE ROD Not Available Price: |
| 11 |
747-1196 |
Lever Price: $13.38 |
| 12 |
783-04285F-0637 |
DASH SUPPORT Not Available Price: |
| 13 |
783-04323F-0637 |
DASH SUPPORT Not Available Price: |
| 14 |
683-04774-0638 |
HOOD ASSEMBLY(K STYLE) (MTD RED) Price: $302.86 |
| 15 |
710-05108 |
Screw, 1/4 DIA:.750 Price: $3.19 |
| 16 |
731-06095 |
LH Lens Price: $10.81 |
| 17 |
731-06096 |
RH Lens Price: $10.74 |
| 18 |
631-04272 |
Grill Price: $61.79 |
| 19 |
925-0963 |
Lamp Price: $6.73 |
| 20 |
925-1649A |
HEADLIGHT SOCKET (1/4 TURN) This part replaces 925-1649. Price: $10.30 |
| 21 |
951-12179C |
FUEL CAP W/12"TETHER VENTED This part replaces 951-12179A. Price: $33.78 |
| 22 |
951-04308 |
FUEL TANK ASSEMBLY 2.0 GAL LO PRM Not Available Price: |
| 23 |
731-06194B |
Hood Scoop Price: $49.26 |
| 24 |
735-0271A |
Bumper Price: $7.84 |
| 25 |
925-04174A |
PTO SWITCH (BLACK KNOB) TEXT SYM This part replaces 925-04174. Price: $62.00 |
| 26 |
925-1745A |
Key Price: $15.91 |
| 27 |
732-04580 |
Extension Spring, .500 DIA x 2.733 LG Price: $5.65 |
| 28 |
731-1999 |
Choke Plug Price: $8.98 |
| 29 |
946-04542 |
Throttle/Choke Cable Price: $41.41 |
| 30 |
925-06119C |
IGNITION MODULE SWITCH RMC (MAN PTO BLK) This part replaces 925-04227B. Price: $102.50 |
| 31 |
925-06170B |
HOUR METER/SERVICE MINDER This part replaces 925-04036C. Price: $65.84 |
| 32 |
710-04187A |
HEX SCREW 1/4-15 x .50 This part replaces 710-04187. Price: $5.99 |
| 33 |
725-0157 |
Cable Tie, 3/16 X .05 X 7.4 Price: $3.46 |
