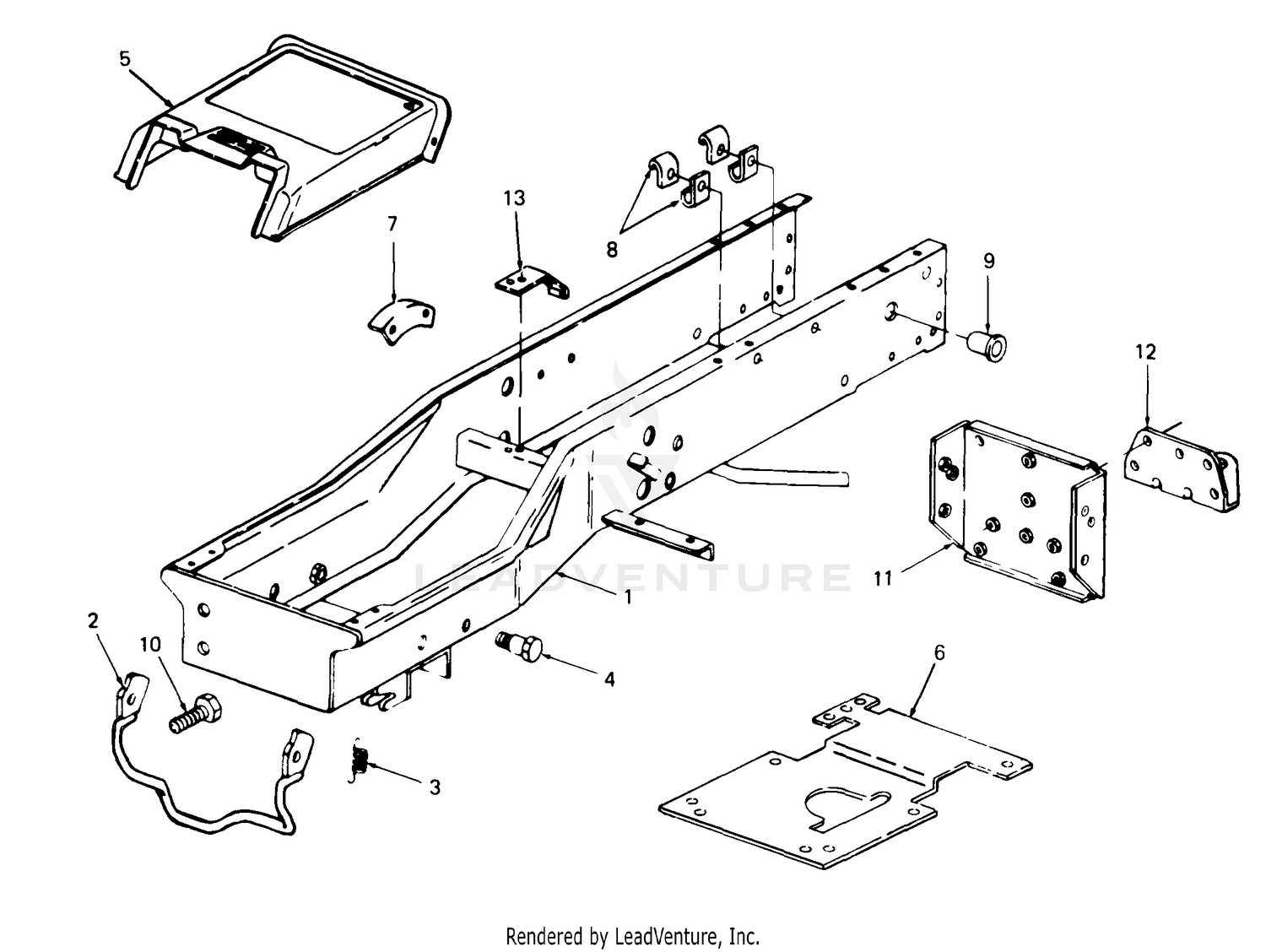

| Ref | Part Number | Description |
|---|
| 1 |
603-0021 |
FRAME ASSY Not Available Price: |
| 1 |
98-9590 |
NUT-CAP Price: $3.86 |
| 2 |
703-1726 |
LATCH ASSEMBLY Not Available Price: |
| 2 |
98-9547 |
CAM-FUEL Price: $87.63 |
| 3 |
932-3002 |
Extension Spring, .51 x 2.12 This part replaces 732-3002. Price: $7.93 |
| 3 |
98-9548 |
WASHER Price: $3.49 |
| 4 |
738-3001 |
BOLT-SHOUL Not Available Price: |
| 4 |
98-9669 |
GEAR-PUMP, INJECTION Price: $86.00 |
| 5 |
731-3120 |
FRAME COVER Not Available Price: |
| 5 |
98-9350 |
BOLT Price: $0.98 |
| 6 |
703-2156 |
BAFFLE-LOWER Not Available Price: |
| 6 |
98-9511 |
STOPPER-FUEL, CAMSHAFT Price: $5.18 |
| 7 |
703-0828 |
Bracket, Height Indicator Price: Call Us |
| 7 |
98-9383 |
DISCONTINUED Price: Call Us |
| 8 |
726-3008 |
Clip, Cable Price: $4.26 |
| 8 |
98-9595 |
KEY-WOODRUFF Price: $2.04 |
| 9 |
723-3042 |
SNAP BUSHING 7/8 Not Available Price: |
| 9 |
98-9459 |
CAMSHAFT-FUEL Price: $159.71 |
| 10 |
710-3182 |
SCREW 1/2-20X1.0 GR5 Not Available Price: |
| 10 |
98-9382 |
BEARING-BALL Price: $23.27 |
| 11 |
703-1943A |
PLATE ASSY, HITCH Not Available Price: |
| 11 |
98-9657 |
CIRCLIP-SHAFT, GOVERNOR Price: $4.48 |
| 12 |
703-0904-0498 |
DRAW BAR (CUB YELLOW) Not Available This part replaces 703-0904. Price: |
| 12 |
98-9381 |
BEARING-BALL Price: $21.66 |
| 13 |
703-0026C |
SWITCH BRACKET Not Available This part replaces 703-0026B. Price: |
| 13 |
98-9565 |
SCREW-SET Price: $2.66 |
| 14 |
98-9644 |
GOVERNOR SHAFT ASM Price: $527.54 |
| 15 |
98-9564 |
WASHER-THRUST Price: $5.01 |
| 16 |
98-9563 |
SLEEVE-GOVERNOR Price: $29.68 |
| 17 |
98-9560 |
SHAFT-WEIGHT, GOVERNOR Price: $6.17 |
| 18 |
98-9692 |
ROLLER Price: $11.45 |
| 19 |
98-9559 |
GOVERNOR WEIGHT ASM Price: $105.15 |
| 20 |
98-9673 |
GEAR-GOVERNOR Price: $137.25 |
| 21 |
98-9562 |
HOLDER-GEAR, GOVERNOR Price: $61.49 |
| 22 |
98-9561 |
HOLDER-WEIGHT, GOVERNOR Price: $23.68 |
| 502206504 |
502206504 |
SCREW Price: $2.99 |
| 502208302 |
502208302 |
KNOB Price: $5.99 |
| 503226503 |
503226503 |
NUT Price: $3.99 |
| 503281804 |
536033701 |
CARBRETOR HD-12C H372 This part replaces 503281804. Price: $99.99 |
| 503281805 |
536033701 |
CARBRETOR HD-12C H372 This part replaces 503281805. Price: $99.99 |
| 503400606 |
503400606 |
TUBE Price: $5.99 |
| 503431801 |
503431801 |
SLEEVE Price: $4.99 |
| 503560004 |
505283309 |
HOSE CLAMP This part replaces 503560004. Price: $3.99 |
| 503627501 |
503627502 |
FILTER HOLDER XP This part replaces 503627501. Price: $9.99 |
| 503665301 |
503665301 |
SLEEVE Price: $5.99 |
| 503667401 |
503667401 |
SLEEVE Price: $5.99 |
| 503684101 |
503684101 |
LEVER Price: $3.99 |
| 503701101 |
503701101 |
PIPE Price: $3.99 |
| 503712701 |
503712701 |
FLANGE Price: $9.99 |
| 503735401 |
503735401 |
AIR FILTER CLIP Price: $3.99 |
| 503814501 |
575269101 |
AIR FILTER ASSY This part replaces 503814501. Price: $22.99 |
| 503814502 |
575269102 |
AIR FILTER ASSY This part replaces 503814502. Price: $27.99 |
| 503814503 |
575269103 |
AIR FILTER ASSY This part replaces 503814503. Price: $24.99 |
| 503817801 |
503817801 |
FILTER HOLDER Price: $6.99 |
| 503818001 |
503818004 |
AIR FILTER This part replaces 503818001. Price: $27.99 |
| 503818002 |
503818005 |
AIR FILTER This part replaces 503818002. Price: $32.99 |
| 503818003 |
503818006 |
AIR FILTER This part replaces 503818003. Price: $37.99 |
| 503964501 |
503964501 |
INTAKE PIPE - EPA Price: $9.99 |
| 725530555 |
725530555 |
SCREW Price: $2.99 |
