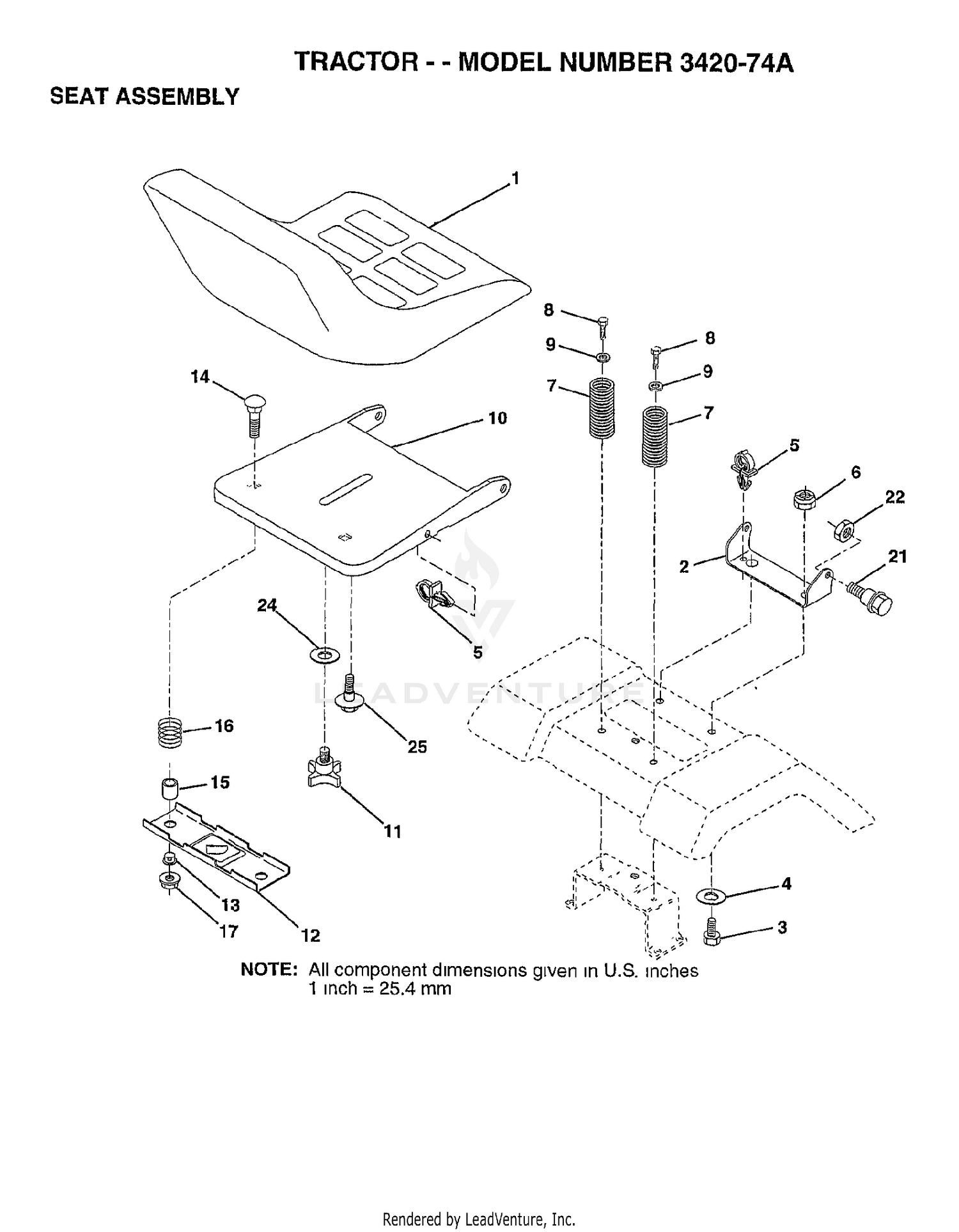

| Ref | Part Number | Description |
|---|
| 1 |
323-14 |
SCREW-HH Price: $1.34 |
| 1 |
532127429 |
Seat V550 Blk/blk Std (AYP part number) Price: $129.99 |
| 2 |
24-2690-01 |
CLAMP PLATE This part replaces 24-2690. Price: $48.58 |
| 2 |
532126656 |
Bracket, Pivot Seat (AYP part number) This part replaces 532105513. Price: $5.46 |
| 3 |
24-2680-01 |
DISCONTINUED This part replaces 24-2680. Price: Call Us |
| 3 |
874780616 |
BOLT This part replaces 874760614. Price: $3.99 |
| 4 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 4 |
819131610 |
WASHER PM Price: $3.99 |
| 5 |
3217-7 |
NUT-HEX Price: $0.28 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
5-3505-01 |
PIN This part replaces 5-3505. Price: $74.63 |
| 6 |
873680600 |
LOCKNUT This part replaces 532062336. Price: $1.99 |
| 7 |
5-3126 |
PIN-LYNCH Price: $0.73 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 8 |
23-9930 |
DISCONTINUED Price: Call Us |
| 8 |
817000616 |
SCREW 3/8-16X1 This part replaces 817490616. Price: $3.99 |
| 9 |
21-3000-01 |
NUT-JAM, PUSH ARM This part replaces 21-3000. Price: $37.02 |
| 9 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 10 |
3217-9 |
NUT-HH Price: $0.37 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532155925. Price: $14.99 |
| 11 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 12 |
24-2660-01 |
OUTSIDE WEIGHT This part replaces 24-2660. Price: $479.27 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $4.99 |
| 13 |
325-4 |
SCREW-HH Price: $0.95 |
| 13 |
532121248 |
BUSHING Price: $3.99 |
| 14 |
24-2630-01 |
STOP WA This part replaces 24-2630. Price: $123.09 |
| 14 |
872050411 |
BOLT CARRIAGE 1/4-20X1 3/8 Price: $2.99 |
| 15 |
25-1350 |
PIN-PLAIN Price: $174.74 |
| 15 |
532121249 |
SPACER SPLIT Price: $3.99 |
| 16 |
24-2670-01 |
INSIDE WEIGHT This part replaces 24-2670. Price: $244.62 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
325-22 |
SCREW-HH Price: $4.26 |
| 17 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532153236. Price: $1.99 |
| 22 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
