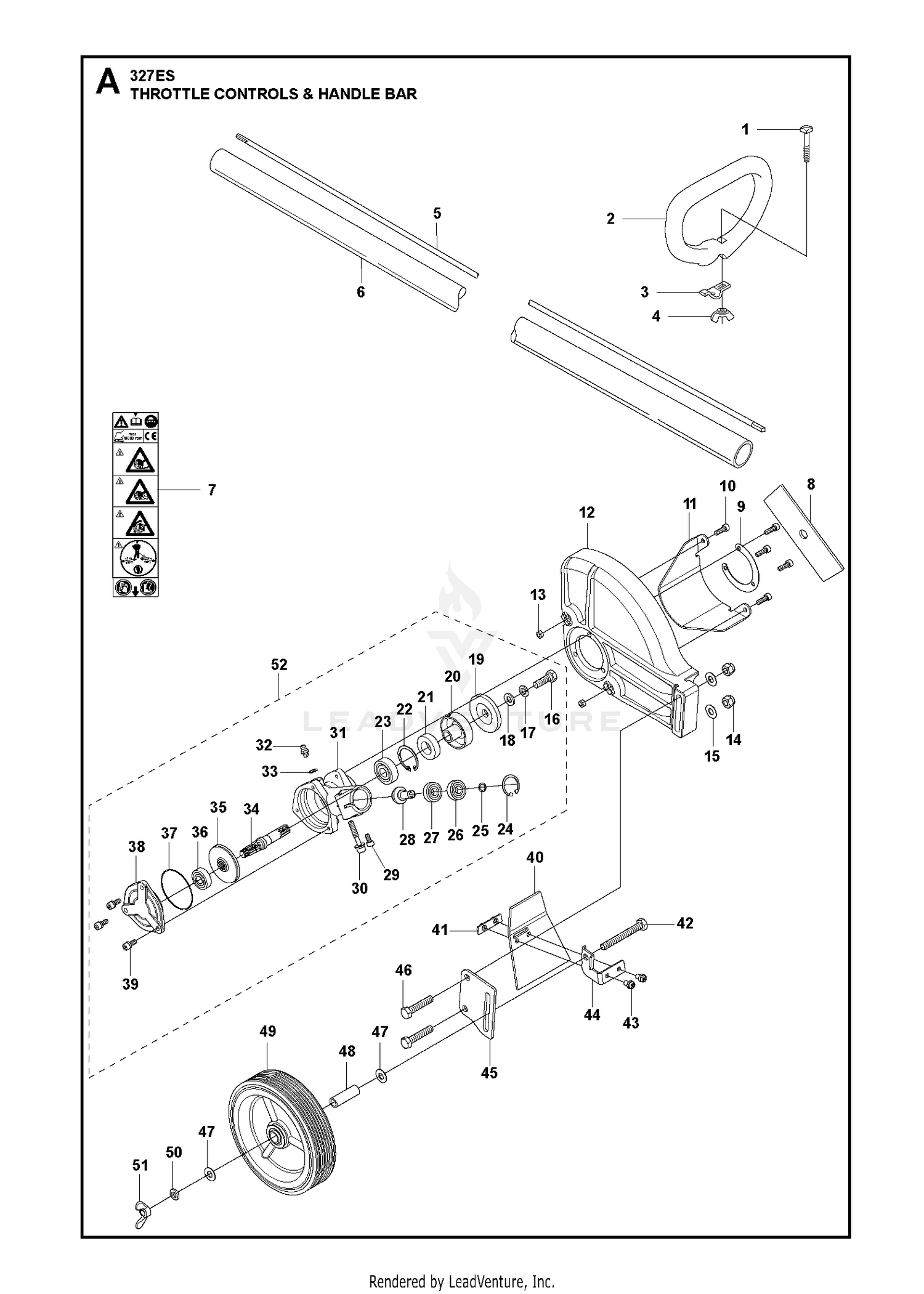

THROTTLE CONTROLS & HANDLE BAR
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503219835 | SCREW Price: $3.99 |
| 2 | 537076801 | HANDLE, LOOP This part replaces 537076802. Price: $12.99 |
| 3 | 530038599 | CLAMP This part replaces 537042501. Price: $0.36 |
| 4 | 503222601 | WING NUT Price: $3.99 |
| 5 | 537234801 | DRIVE SHAFT Price: $24.99 |
| 6 | 503888801 | DRIVE TUBE ASSEMBLY Price: $59.99 |
| 7 | 503847801 | DECAL, SAFETY Price: $5.99 |
| 8 | 531300233 | EDGER BLADE (IN CLAM) This part replaces 503848202. Price: $7.99 |
| 9 | 505171901 | PLATE Price: $5.99 |
| 10 | 505171801 | BOLT M5 X L16 ALLEN Price: $5.99 |
| 11 | 505172003 | PROTECTIVE PLATE This part replaces 505172001. Price: $6.99 |
| 12 | 505171702 | Guards This part replaces 505171701. Price: $74.99 |
| 13 | 505172301 | NUT Price: $2.99 |
| 14 | 532184362 | NUT.HEX.FLANGE.TOPLOCK This part replaces 505174801. Price: $3.99 |
| 15 | 505175001 | RP_WASHER Price: $2.99 |
| 16 | 505169601 | BOLT M8 X L25 L/H Price: $5.99 |
| 18 | 505169801 | WASHER Price: $3.99 |
| 19 | 505171401 | HOLDER (B) Price: $11.99 |
| 20 | 505171201 | HOLDER (A) Price: $17.99 |
| 21 | 505168701 | OIL SEAL Price: $3.99 |
| 22 | 505168801 | RING Price: $0.96 |
| 23 | 505168601 | BEARING Price: $11.99 |
| 24 | 505169401 | RP_RING Price: $2.99 |
| 25 | 505169501 | RING Price: $2.99 |
| 26 | 505169301 | BEARING Price: $4.99 |
| 27 | 505169201 | BEARING Price: $5.99 |
| 28 | 505169101 | PINION Price: $19.99 |
| 29 | 505173901 | BOLT M5 X L10 This part replaces 505169901. Price: $3.99 |
| 30 | 505170001 | BOLT M6 X L35 ALLEN Price: $2.99 |
| 31 | 505168401 | GEARCASE Price: $54.99 |
| 32 | 505171501 | FITTING Price: $4.99 |
| 33 | 505171601 | WASHER Price: $2.99 |
| 34 | 505168901 | SHAFT Price: $19.99 |
| 35 | 505169001 | GEAR Price: $49.99 |
| 36 | 505170201 | BEARING Price: $5.99 |
| 37 | 505168501 | O-RING Price: $2.99 |
| 38 | 505170101 | COVER Price: $11.99 |
| 39 | 574081301 | RP_BOLT This part replaces 505170601. Price: $2.99 |
| 40 | 505173701 | RUBBER Price: $12.99 |
| 41 | 505173601 | PLATE Price: $3.99 |
| 42 | 505172601 | BOLT M8 X L65 Price: $3.99 |
| 43 | 505173901 | BOLT M5 X L10 Price: $3.99 |
| 44 | 505173501 | BRACKET Price: $8.99 |
| 45 | 505174601 | MAIN BRACKET Price: $6.99 |
| 46 | 505174701 | BOLT M8 X L40 Price: $3.99 |
| 47 | 505175001 | RP_WASHER Price: $2.99 |
| 48 | 505173301 | SLEEVE Price: $9.99 |
| 49 | 505172501 | WHEEL Price: $14.99 |
| 50 | 505172901 | WASHER Price: $2.99 |
| 51 | 527068601 | NUT This part replaces 505173101. Price: $12.99 |
| 52 | 588163001 | GEAR CASE ASSY This part replaces 505168301. Price: $119.99 |
