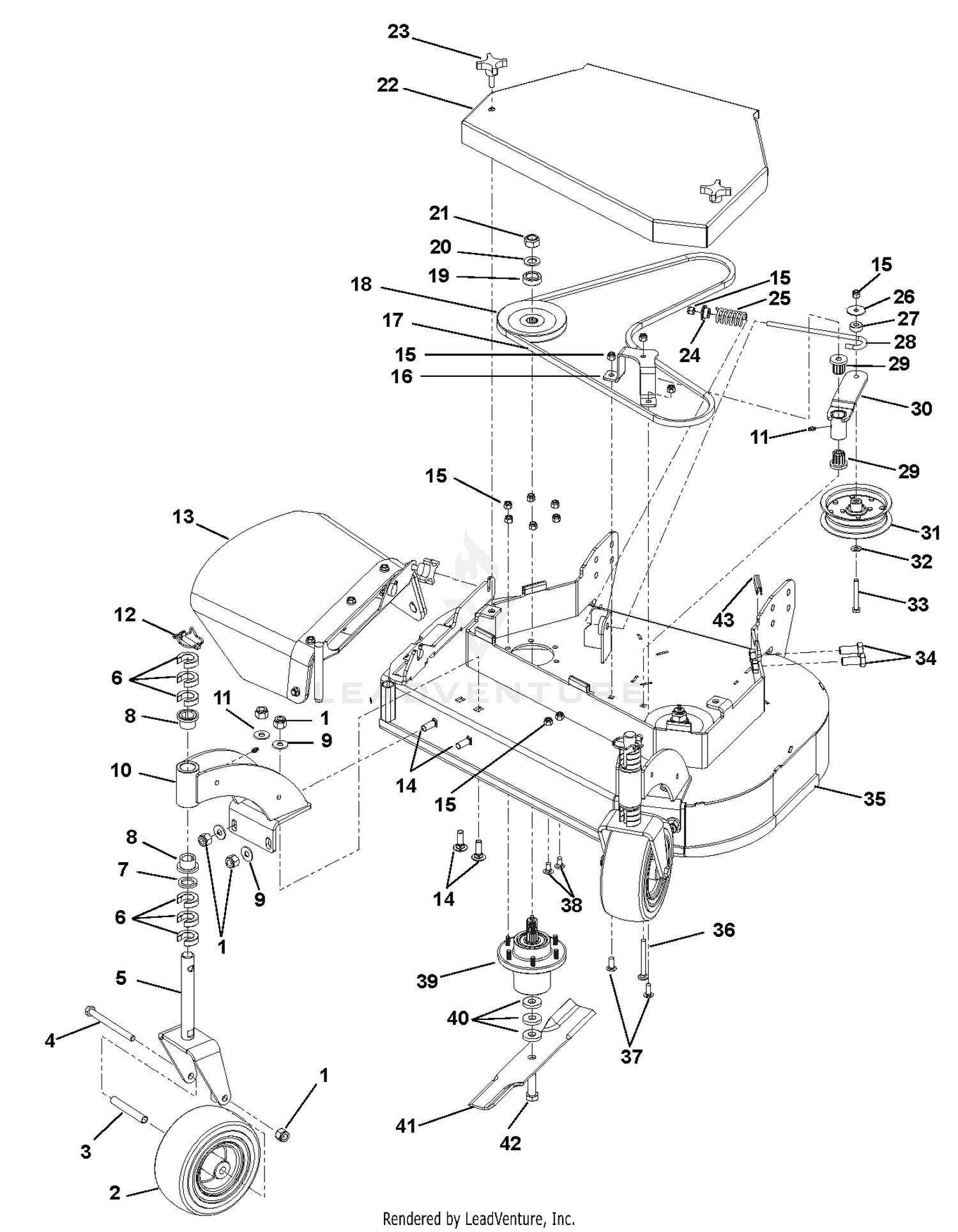

| Ref | Part Number | Description |
|---|
| 1 |
06500830 |
NUT,NYL .50-13 G5 ZCC This part replaces 00964015. Price: $2.45 |
| 3 |
D13003 |
TUBE, CASTER AXLE Price: $18.95 |
| 4 |
05901632 |
BLT,HEX .50-13X5.50 G5 ZCC This part replaces 05964100. Price: $6.45 |
| 5 |
00200534 |
WLDT, CASTER YOKE W/EVRRD PNT Price: Call Us |
| 6 |
00164145 |
C-SPACER, 1.00 X 1.77 X .500 Price: $3.45 |
| 7 |
D13008 |
BUSHING, 1.03 X 1.50 X .179 Y Price: $8.95 |
| 8 |
D18076 |
BRG, FLG 1.00X1.25X1.00 Price: $6.45 |
| 9 |
00960703 |
MANUAL, OWNERS RAPID XZ FRENCH Price: Call Us |
| 10 |
03987461 |
WLDT, STRUT FRONT WHEEL FXWLK Price: Call Us |
| 11 |
00959995 |
FTG, 1/4-28 STRGT GREASE ZERK Price: $3.45 |
| 12 |
00161397 |
PIN, KLIK .438X2.00 Price: $8.45 |
| 13 |
56155061 |
ASSY, DISCHARGE SHIELD Price: Call Us |
| 14 |
06200421 |
BLT, RHSN .50-13X1.50 G5 ZCC This part replaces 06223100. Price: $4.45 |
| 15 |
00968087 |
LOCKNUT, 3/8-16 NYLOC Y Price: Call Us |
| 16 |
04054951 |
BRACKET, IDLER Price: $10.95 |
| 17 |
00201010 |
BELT, HB 80.3 EL AMD OHR Price: $62.95 |
| 18 |
07329567 |
PULLEY, W/HUB This part replaces D18083. Price: $81.95 |
| 19 |
D13024 |
SPACER, SPINDLE TOP-PULLEY Price: $12.45 |
| 20 |
06401037 |
WSHR-FL-STL .75X1.312X.12 ZC12 This part replaces 03399703. Price: $1.95 |
| 21 |
06500031 |
LOCKNUT, 3/4-16 CROWN GR 8 Y This part replaces 00964024. Price: $3.45 |
| 22 |
04057961 |
WLDT, BELT SHIELD 36 GRWK G2 Price: Call Us |
| 23 |
03820400 |
KNOB, 3/8 X 1.25 - 4 PRONG Price: $9.45 |
| 24 |
D33062 |
KEEPER, SPRING Price: $31.45 |
| 25 |
D38128 |
SPRING, COM 1.22X.162X2.50 Y Price: $14.45 |
| 26 |
06401028 |
WSHR,FLT .380X1.50X.062 ZCC This part replaces 00964502. Price: $2.95 |
| 27 |
D13023 |
BUSHING, .380 X 1.00 X .410 Y Price: $15.95 |
| 28 |
D23040 |
J-BOLT, 3/8-16 X 7.88 Y Price: $10.45 |
| 29 |
TCU14540 |
BRG, FLG M10XM25XM27 FLUTED Price: $15.95 |
| 30 |
04056251 |
WLDT, IDLER ARM WITH OFFSET Price: $54.45 |
| 31 |
07346700 |
IDLER, FLAT-5.00" X .75" This part replaces D18032. Price: $72.45 |
| 32 |
00964501 |
WASHER, .406X.813X.065 FLAT Y Price: Call Us |
| 33 |
05901611 |
BLT, HEX .38-16X2.75 G5 ZCC This part replaces 05961400. Price: $3.95 |
| 34 |
05901723 |
BLT, HEX .62-11X1.50 G8 ZCC This part replaces 05901321. Price: $3.45 |
| 35 |
50522008 |
DECK, W/DECALS 36 WASP GRWLK Price: Call Us |
| 36 |
03H1836 |
BOLT, 3/8-16X3.50 CRG 5 Y Price: Call Us |
| 37 |
00963019 |
BOLT, 3/8-16X1.00 CRG 5 SN Y Price: Call Us |
| 39 |
00200262 |
ASSY, SPINDLE S/O Price: $258.45 |
| 40 |
06401033 |
WSHR,FLT .630X1.50X.25 ZCC This part replaces D18055. Price: $6.45 |
| 41 |
GDU10231 |
BLADE, 18.000 X .80 LIFT Price: $27.45 |
| 42 |
05901725 |
BLT, HEX .62-11X2.00 G8 ZCC This part replaces 00967348. Price: $5.45 |
