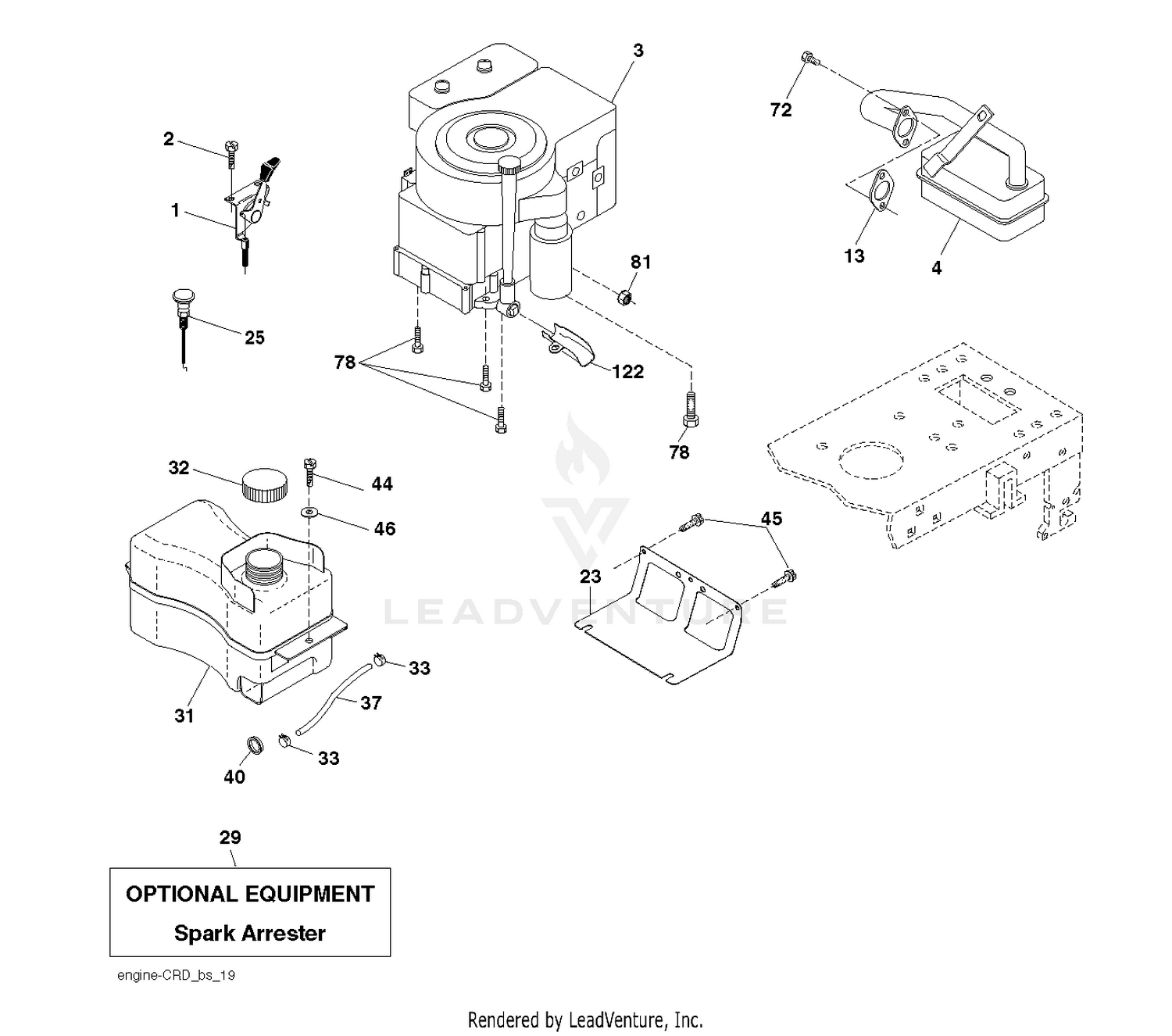

| Ref | Part Number | Description |
|---|
| 1 |
3-9226 |
Wire Price: Call Us |
| 1 |
532170551 |
CONTROL.THROTTLE/CHOKE.BLACK Price: $22.99 |
| 2 |
3220-2 |
NUT-JAM Price: $0.50 |
| 2 |
539990071 |
HCS 1/4-20. This part replaces 817720408. Price: $1.99 |
| 3 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 4 |
532179758 |
MUFFLER.B&S.MODEL.21.11HP.OHV Price: $39.99 |
| 4 |
6-1600 |
SOLENOID Price: $55.95 |
| 5 |
3290-134 |
SCREW Price: $0.27 |
| 6 |
3219-14 |
NUT-HEX Price: $0.25 |
| 7 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 8 |
3-9225 |
Wire Price: Call Us |
| 9 |
3217-6 |
NUT-HEX Price: $1.19 |
| 10 |
2412-31 |
CLAMP-BODEN Price: $1.56 |
| 11 |
3-8947 |
DISCONTINUED Price: Call Us |
| 12 |
3220 |
Nut, Jam Price: Call Us |
| 13 |
3-8928 |
DISCONTINUED Price: Call Us |
| 13 |
532272293 |
Gasket Eng 1 313 Id Tin Plated (AYP part number) This part replaces 532165291. Price: $7.99 |
| 14 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 15 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 16 |
324-6 |
SCREW-HH Price: $0.81 |
| 17 |
5-0786 |
KEY Price: $13.87 |
| 18 |
3246-4 |
SCREW-SET Price: $0.75 |
| 19 |
321-2 |
SCREW-HH Price: $2.79 |
| 20 |
5-2944 |
Heat Shield, Upper Price: Call Us |
| 21 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 22 |
49-8110 |
HANDLE GRIP This part replaces 235-11. Price: $13.80 |
| 23 |
5-3443 |
Heat Shield, Lower Price: Call Us |
| 23 |
532169837 |
SHIELD.BROWNING.DBR.GUARD Price: $7.99 |
| 24 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 25 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 25 |
532190695 |
KNOB.ERGO.EXTENDED.RED (1 2) Price: $2.99 |
| 26 |
5-1671 |
DISCONTINUED Price: Call Us |
| 27 |
5-1667 |
DISCONTINUED Price: Call Us |
| 28 |
3-9351 |
EXT SPRING *R Price: $47.40 |
| 29 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR(392390 B&S) Price: $129.99 |
| 30 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 31 |
3-8997 |
DISCONTINUED Price: Call Us |
| 31 |
532407516 |
Price: Call Us |
| 32 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $14.99 |
| 33 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
323-7 |
SCREW-HH Price: $0.65 |
| 35 |
3218-3 |
NUT-JAM Price: $0.25 |
| 36 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 37 |
5-2793 |
DISCONTINUED Price: Call Us |
| 37 |
532137040 |
LINE.FUEL.20 Price: $3.99 |
| 38 |
5-1853 |
DISCONTINUED Price: Call Us |
| 39 |
321-6 |
SCREW-HH Price: $0.25 |
| 40 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 40 |
532124028 |
GROMMET T Price: $3.99 |
| 41 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 42 |
5-0701 |
ANCHOR Price: $4.07 |
| 43 |
3-9026 |
DISCONTINUED Price: Call Us |
| 44 |
3-8945 |
DISCONTINUED Price: Call Us |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
| 45 |
3220-3 |
NUT-HJ Price: $0.28 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 46 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 46 |
819091416 |
WASHER Price: $3.99 |
| 47 |
282-1 |
DISCONTINUED Price: Call Us |
| 48 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 50 |
5-3840 |
DISCONTINUED Price: Call Us |
| 51 |
323-9 |
SCREW-HH Price: $1.29 |
| 52 |
321-6 |
SCREW-HH Price: $0.25 |
| 53 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 54 |
2212-16 |
DISCONTINUED Price: Call Us |
| 55 |
3-9263 |
DISCONTINUED Price: Call Us |
| 56 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 57 |
3217-5 |
NUT-HEX Price: $0.25 |
| 58 |
3217-7 |
NUT-HEX Price: $0.28 |
| 59 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 60 |
323-7 |
SCREW-HH Price: $0.65 |
| 61 |
2812-4 |
REDUCER-PIPE Price: $9.67 |
| 62 |
324-4 |
SCREW-HH Price: $0.95 |
| 63 |
5-2390 |
DISCONTINUED Price: Call Us |
| 64 |
5-1626 |
DISCONTINUED Price: Call Us |
| 65 |
5-1628 |
DISCONTINUED Price: Call Us |
| 66 |
3-9066 |
DISCONTINUED Price: Call Us |
| 67 |
3-9001 |
DISCONTINUED Price: Call Us |
| 68 |
5-3270 |
DISCONTINUED Price: Call Us |
| 69 |
2811-9 |
FITTING-ELBOW-90 Price: $15.86 |
| 70 |
3290-153 |
DISCONTINUED Price: Call Us |
| 71 |
289-25 |
DISCONTINUED Price: Call Us |
| 72 |
288-3 |
DISCONTINUED Price: Call Us |
| 72 |
532192334 |
SCREW.SOCKET HD.5/16-1 Price: $2.99 |
| 73 |
5-2665 |
DISCONTINUED Price: Call Us |
| 74 |
3-8946 |
DISCONTINUED Price: Call Us |
| 76 |
3217-26 |
NUT-HEX Price: $0.25 |
| 77 |
5-2933 |
DISCONTINUED Price: Call Us |
| 78 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 81 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
