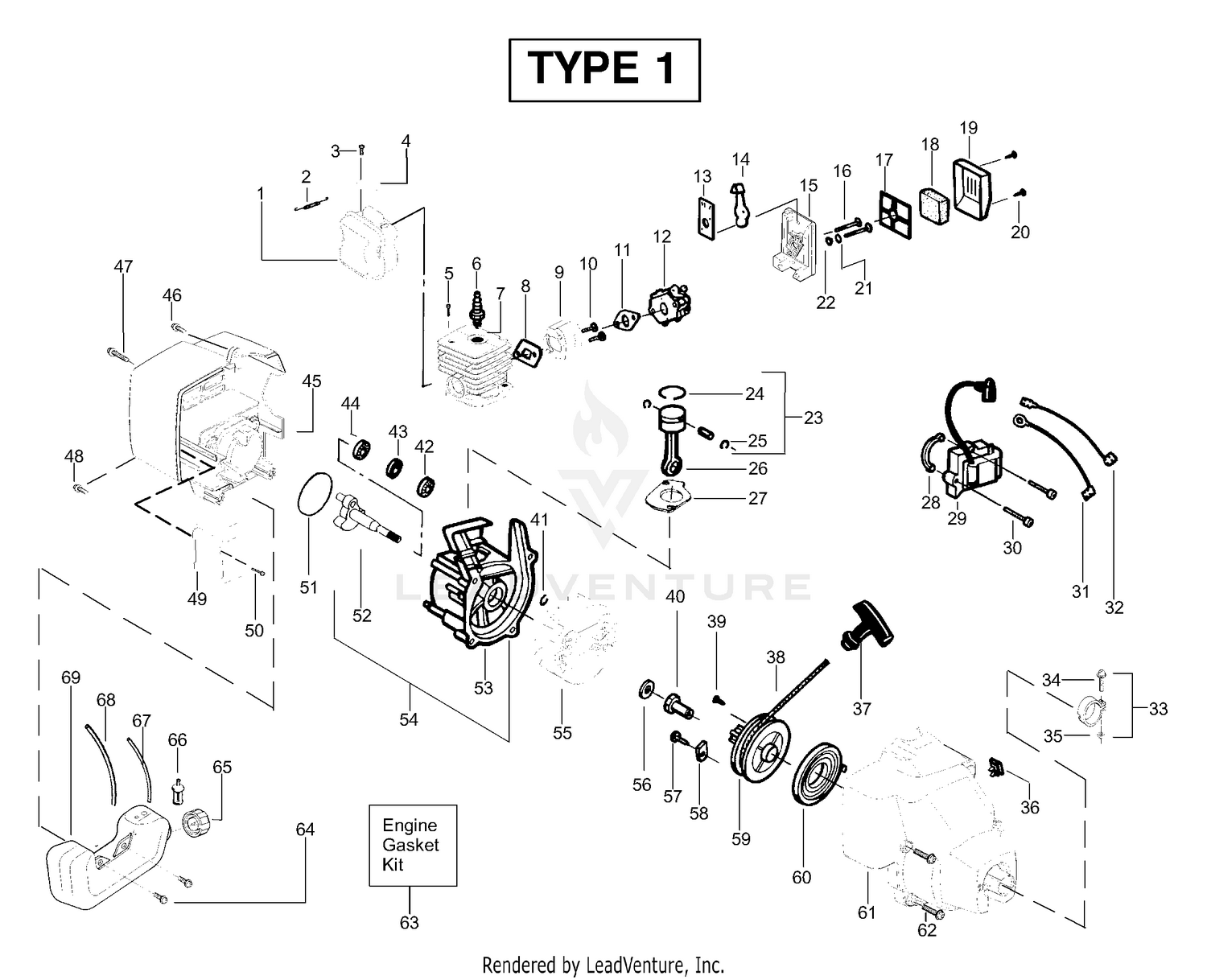

| Ref | Part Number | Description |
|---|
| 1 |
117-0959 |
ROLLER-WIEHLE, PLASTIC Price: $366.77 |
| 2 |
117-0957 |
SHAFT-ROLLER, WIEHLE Price: $105.15 |
| 2 |
530042088 |
Spring-Muffler Price: $1.99 |
| 3 |
530015241 |
Screw-Screen Price: $1.99 |
| 4 |
530071361 |
Kit-Spark Arrestor Price: $4.99 |
| 5 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 6 |
952030249 |
Spark Plug (RCJ 6Y) Price: $3.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
530012416 |
Cylinder This part replaces 530071359. Price: $17.99 |
| 8 |
530071363 |
Gasket-Cylind./Carb. Price: $5.99 |
| 9 |
545030402 |
CARBURETOR ADAPTOR This part replaces 530056403. Price: $8.99 |
| 10 |
530016309 |
Screw Price: $1.99 |
| 11 |
530071363 |
Gasket-Carb. Price: $5.99 |
| 12 |
530071628 |
Kit-Carb.(C1U-W10B) Price: $34.99 |
| 13 |
530038747 |
Choke Plate Mounting Price: $1.99 |
| 14 |
530038686 |
Shutter-Choke Price: $1.99 |
| 15 |
530052431 |
Air Box Price: $1.99 |
| 16 |
530016353 |
Screw Price: $1.99 |
| 17 |
530036569 |
Plate - Filter Support Price: $1.99 |
| 18 |
530036575 |
Foam-Air Filter Price: $1.99 |
| 19 |
530054414 |
Cover-Air Filter Price: $3.99 |
| 20 |
530015892 |
Screw Price: $1.99 |
| 21 |
530015852 |
Spacer-Choke Price: $1.99 |
| 22 |
530015254 |
Washer Price: $1.99 |
| 24 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 25 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 26 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 27 |
530071363 |
Gasket-Cylinder Price: $5.99 |
| 28 |
530036145 |
Spacer-Module Price: $1.99 |
| 29 |
530055160 |
Ignition Module Price: $34.99 |
| 30 |
530015954 |
Screw Price: $1.99 |
| 31 |
581425901 |
SWITCH, GROUND WIRE This part replaces 530014662. Price: $1.99 |
| 32 |
530014663 |
Assy-Leadwire Price: $5.99 |
| 34 |
530016381 |
Screw-Nose Cone Price: $2.99 |
| 35 |
530016382 |
Nut-Nose Cone Price: $2.99 |
| 36 |
530071356 |
Kit-Switch Price: $4.99 |
| 37 |
530027569 |
Handle-Starter Price: $1.99 |
| 38 |
530069232 |
Kit - Rope Price: $3.99 |
| 39 |
530016080 |
Screw Price: $1.99 |
| 40 |
530038604 |
Coupling-Drive Price: $1.99 |
| 41 |
530015941 |
Retain. Ring-C'shaft Price: $1.99 |
| 42 |
530055728 |
Outer Bearing Price: $6.99 |
| 43 |
530071615 |
Kit-C'case Seal Price: $4.99 |
| 44 |
530032125 |
Inner Bearing Price: $11.99 |
| 45 |
530057242 |
Shroud-Rear Price: $14.99 |
| 46 |
530015934 |
Screw Price: $1.99 |
| 47 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 48 |
530015880 |
Screw Price: $1.99 |
| 49 |
530055351 |
Shield-Heat Price: $2.99 |
| 50 |
114-5430 |
ROLLER REBUILD KIT Price: $99.53 |
| 50 |
530015805 |
Screw Price: $1.99 |
| 51 |
530071363 |
O-Ring-C'case/Shrd Price: $5.99 |
| 52 |
530054753 |
Assy-Crankshaft Price: $27.99 |
| 55 |
545221701 |
FLYWHEEL ASSY This part replaces 530069886. Price: $8.99 |
| 56 |
530015828 |
Washer-Flat Price: $1.99 |
| 57 |
530015775 |
Screw Price: $1.99 |
| 58 |
530027523 |
Retainer-Can Price: $2.99 |
| 60 |
545008010 |
STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 61 |
530056706 |
Assy.-Fan Hsg Price: $17.99 |
| 62 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 64 |
530016379 |
Retainer Price: $2.99 |
| 65 |
530014347 |
Assy-Fuel Cap Price: $4.99 |
| 66 |
530095646 |
Assy-Fuel Pickup Price: $2.99 |
| 67 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 68 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
