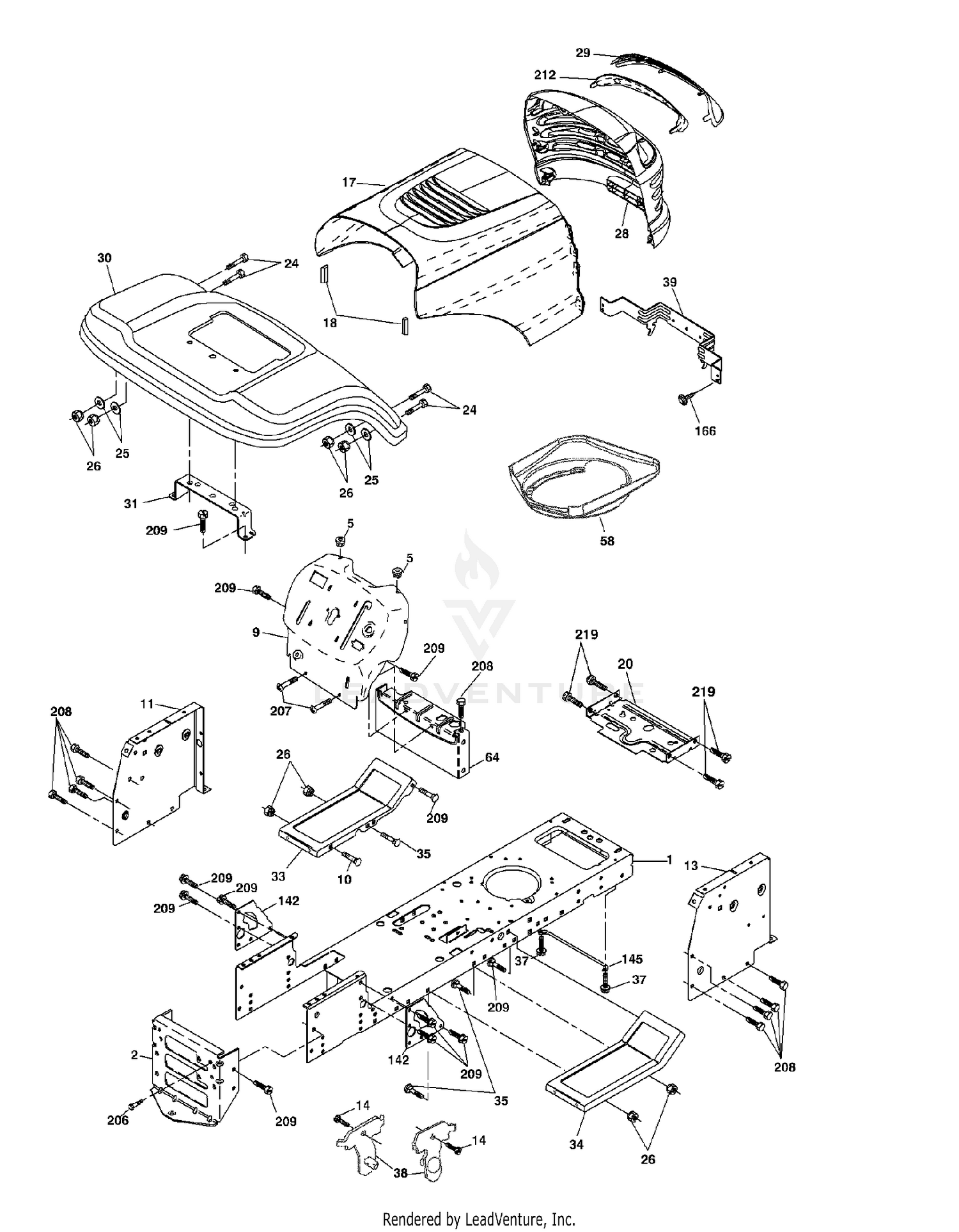

| Ref | Part Number | Description |
|---|
| 0 |
632500 |
CARBURETOR Price: $69.63 |
| 1 |
100-6643 |
O-RING Price: $4.94 |
| 1 |
532174619 |
CHASSIS STAMPING Price: $84.99 |
| 1 |
631615 |
SHAFT & LEV Price: $6.48 |
| 2 |
532176554 |
DRAWBAR, 12GA Price: $24.99 |
| 2 |
631767 |
SPRING Price: $1.25 |
| 2 |
99-0758 |
NUT Price: $20.97 |
| 3 |
100-6658 |
GASKET Price: $9.96 |
| 4 |
106-1240 |
BULKHEAD Price: $147.50 |
| 4 |
631184 |
WASHER Price: $1.25 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 5 |
631183 |
WASHER Price: $1.25 |
| 6 |
632504 |
SHUTTER Price: $1.25 |
| 7 |
650506 |
SCREW Price: $0.87 |
| 10 |
872110608 |
BOLT D This part replaces 872140608. Price: $3.99 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $8.99 |
| 12 |
532145660 |
CLIP Price: $2.99 |
| 14 |
817490608 |
SCREW LT Price: $3.99 |
| 16 |
632527 |
FUEL FITTING This part replaces 631775. Price: $6.03 |
| 18 |
532126938 |
Bumper Hood Price: $3.99 |
| 20 |
532180679 |
PLATE MTG.BATTERY/FUEL TANK Price: $7.99 |
| 24 |
874780616 |
BOLT Price: $3.99 |
| 25 |
631867 |
FLOAT BOWL Price: $2.34 |
| 25 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 26 |
873680600 |
LOCKNUT This part replaces 532062336. Price: $1.99 |
| 27 |
631024 |
FLOAT SHAFT Price: $1.17 |
| 28 |
632019A |
FLOAT This part replaces 632019. Price: $5.85 |
| 29 |
631028A |
GASKET This part replaces 631028. Price: $1.95 |
| 30 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 31 |
532136619 |
BRACKET FENDER Price: $3.99 |
| 31 |
631022 |
CLIP Price: $1.25 |
| 35 |
632433A |
PRIMER This part replaces 632433. Price: $9.45 |
| 35 |
872110606 |
BOLT Price: $2.99 |
| 35A |
632647 |
FILTER Price: $1.17 |
| 37 |
817490508 |
SCREW LT Price: $3.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR Price: $5.99 |
| 39 |
532407807 |
BRACKET PIVOT This part replaces 532174714. Price: $14.99 |
| 40 |
632682 |
NUT This part replaces 632503. Price: $5.16 |
| 44 |
27110A |
GASKET This part replaces 27110. Price: $1.45 |
| 58 |
532178000 |
Price: $6.49 |
| 64 |
532154798 |
DASH LOWER Price: $22.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $8.99 |
| 206 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $2.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $3.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 219 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $3.99 |
