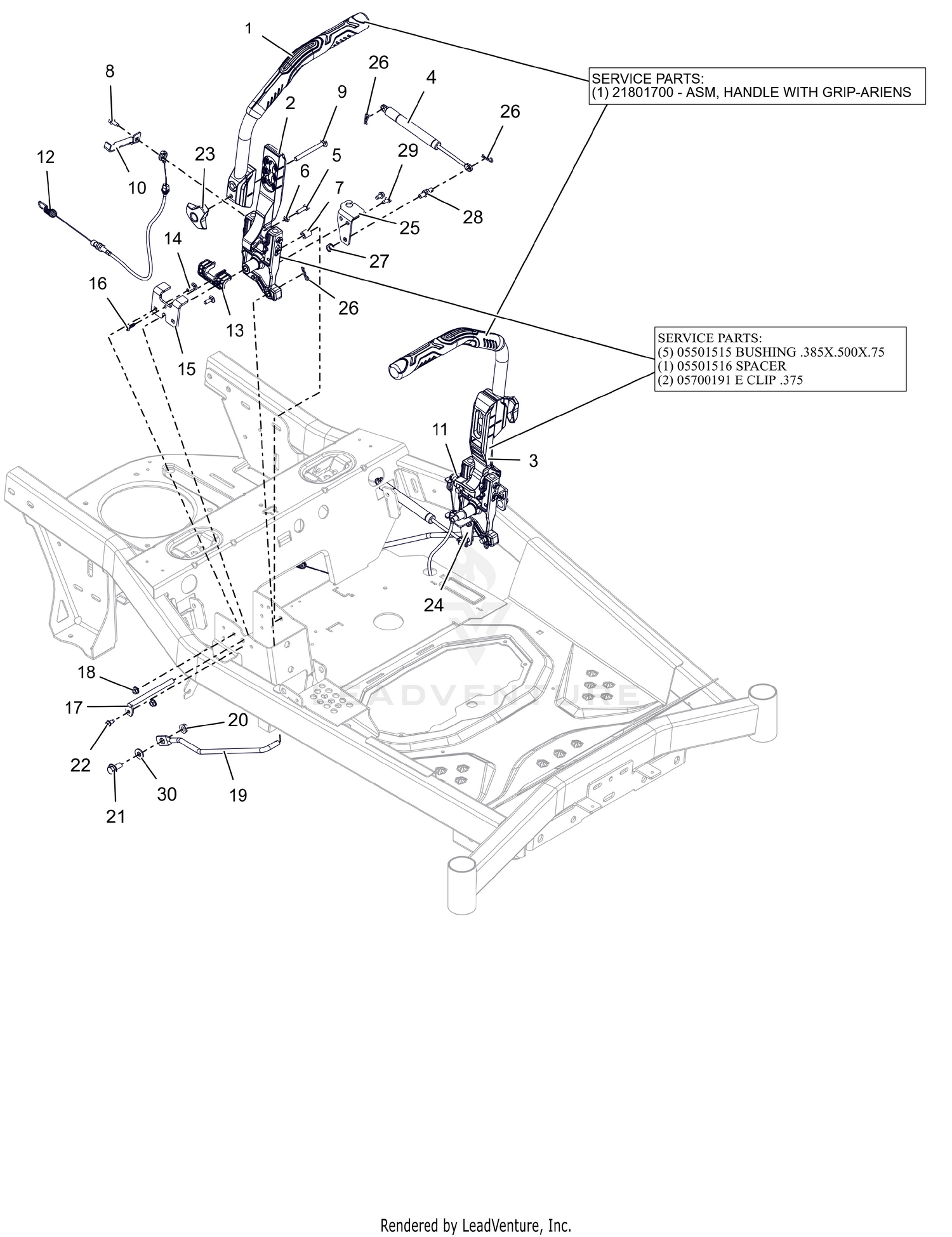

| Ref | Part Number | Description |
|---|
| 1 |
30222200 |
ASM, HANDLEBAR -ARIENS Price: Call Us |
| 2 |
30221700 |
CONTROL, ASM -RH Price: Call Us |
| 3 |
30221600 |
CONTROL, ASM LH Price: Call Us |
| 4 |
09670000 |
DAMPER- STRAIGHT MOUNT Price: $38.45 |
| 5 |
05901639 |
BLT,HEX .25-20X1.00 G5 ZCC Price: $1.45 |
| 6 |
06500908 |
NUT-JAM .250-20 G2 ZCC Price: $0.95 |
| 7 |
09670100 |
SPCR- SNAP-ON 1/2 X 1 1/2 Price: $5.45 |
| 8 |
07400135 |
SCR,TAP .25-20X.625 HWH ZCC Price: $2.45 |
| 9 |
06200516 |
BLT,RHSN .313-18 X 3.25 G5 ZCC Price: Call Us |
| 10 |
30158951 |
BRKT, PARKING BRK ENG R (BLACK) Price: $9.45 |
| 11 |
30159051 |
BRKT, PARKING BRK ENG L (BLACK) Price: $9.45 |
| 12 |
09669900 |
CABLE- PARK BRAKE Price: $41.95 |
| 13 |
07500530 |
STEERING-PLASTIC LINER Price: $4.45 |
| 14 |
06200307 |
BLT, RHSN .25-20X.750 G5 ZCC Price: $0.95 |
| 15 |
09669351 |
PLATE- BRAKE STOP Price: $10.45 |
| 16 |
07400101 |
SCR-TAP 12-14X.75PLSTITE @BLZC Price: $0.95 |
| 17 |
30135500 |
PIN- FIXED STEERING PIVOT Price: $5.45 |
| 18 |
06500821 |
NUT-LK-CTR-FLG .25-20 ZC120 Price: $0.45 |
| 19 |
09659900 |
WIREFORM- STEERING LINKAGE Price: $17.45 |
| 20 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 21 |
07002029 |
BLT-SHLDR .50X.175 ZCC Price: $5.45 |
| 22 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
| 23 |
30298400 |
KNOB- STEERING ADJUSTMENT Price: $4.95 |
| 24 |
30222500 |
BRKT, CABLE RETAINER LH Price: Call Us |
| 25 |
30222600 |
BRAKE, CABLE RETAINER RH Price: Call Us |
| 26 |
06700222 |
PIN, HAIR #213 .08X1.19 ZCC Price: $0.45 |
| 27 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 28 |
05171400 |
COUPLER, DAMPER MOUNT Price: $6.45 |
| 29 |
07400210 |
SCR-TAP .25X.50 HWH ZB500 Price: $2.95 |
