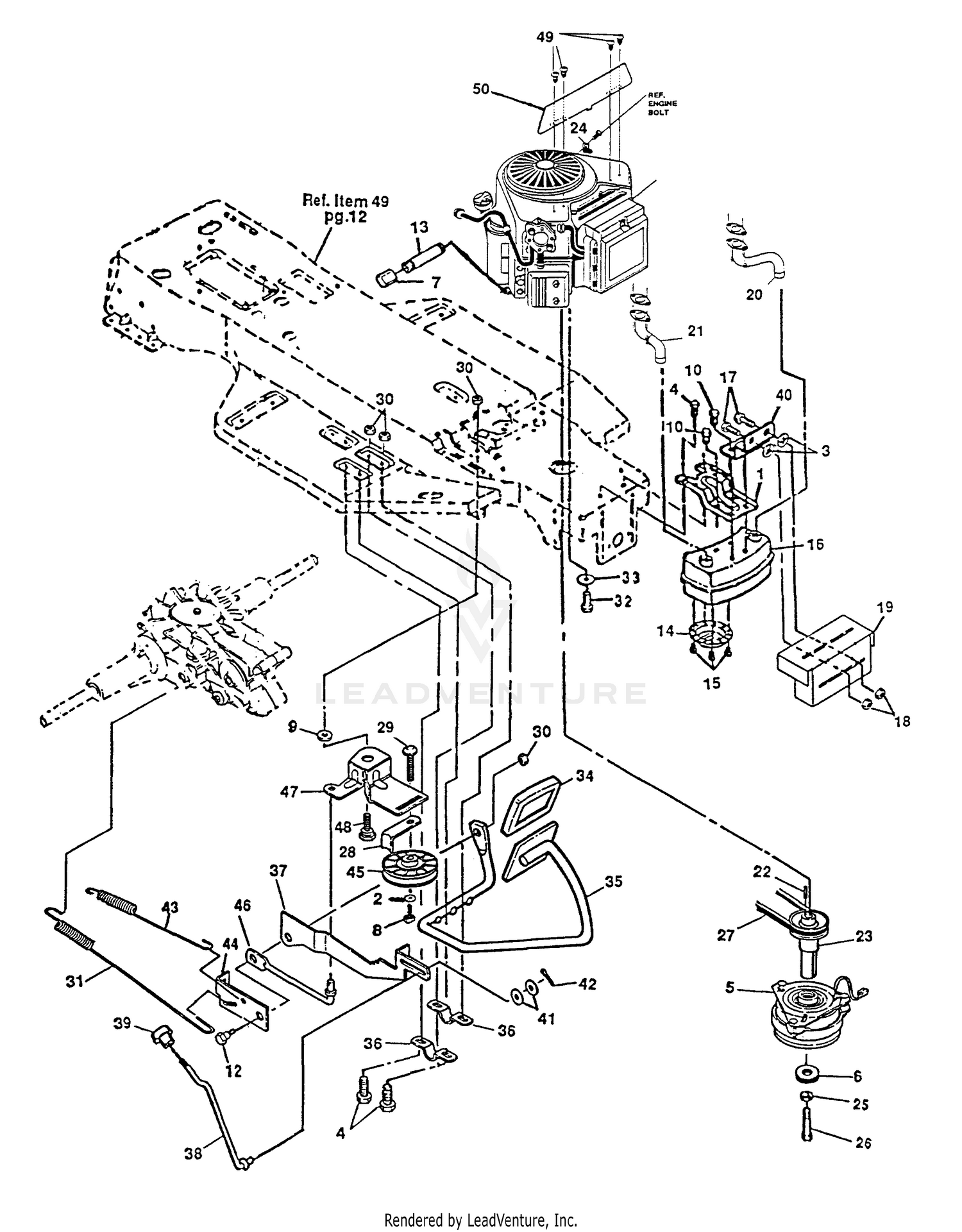

| Ref | Part Number | Description |
|---|
| 1 |
601000711 |
PF BRACKET-MUFFLER BLACK Price: $7.99 |
| 1 |
98-9486 |
PLATE-END, REAR Price: $176.46 |
| 2 |
601000015 |
WASHER, REGSPTLK.393X.68X Price: $1.66 |
| 2 |
98-9392 |
BOLT Price: $2.38 |
| 3 |
601000355 |
PUSHNUT, 5/16 BOLT RETAIN Price: $3.99 |
| 3 |
98-9537 |
BOLT-FLYWHEEL Price: $7.04 |
| 4 |
601000519 |
SCREW, 5/16-18X .50 WAHHT Price: $1.99 |
| 4 |
98-9691 |
FLYWHEEL ASM Price: $759.10 |
| 5 |
601000343 |
CLUTCH, ELECTRIC 16/18HP Price: $531.08 |
| 6 |
601000880 |
BUSHING, SLEEVE SECTOR GEAR Price: $7.76 |
| 7 |
601000557 |
CAP, PIPE 3/8-18 NPT ZN P Price: $3.99 |
| 8 |
601000013 |
NUT, 3/8-16 REGHX Price: $1.99 |
| 9 |
601000547 |
WASHER, FLAT .333X .87X. Price: $3.99 |
| 10 |
601000667 |
SCREW, 1/4-20X .63 HHWATA Price: $0.99 |
| 12 |
601000372 |
BOLT, .500X .500 HHSH 5/1 Price: $2.99 |
| 13 |
601000309 |
NIPPLE 3/8-18 NPT X 4" Price: $9.99 |
| 14 |
601000614 |
DEFLECTOR SIDE OUT (BS222 Price: $13.99 |
| 15 |
601000515 |
SCREW, #8-32X .38 HHWATAP Price: $1.99 |
| 16 |
601000264 |
MUFFLER 15HP B&S VANG Price: $77.99 |
| 17 |
601000052 |
BOLT, 5/16-18X .63 CARR Price: $1.70 |
| 18 |
601000867 |
NUT HX WD FL LK 5/16-18 THD This part replaces 601000595. Price: $1.99 |
| 19 |
601000881 |
HEAT SHIELD Price: Call Us |
| 20 |
601000266 |
EXHAUST TUBE 15HP LH B&S Price: $29.99 |
| 21 |
601000265 |
EXHAUST TUBE 15HP RH B&S Price: $29.99 |
| 22 |
601000267 |
KEY, SQUARE .250SQX2.12LG Price: $7.70 |
| 23 |
601002276 |
PULLEY, ENG This part replaces 601000354. Price: $199.99 |
| 24 |
601000631 |
RETAINER, .31IDX.62X.03 W Price: $4.81 |
| 25 |
601000016 |
WASHER, REGSPTLK.459X.78X Price: $2.61 |
| 26 |
601000091 |
SCREW, 7/16-20X5.50 HHCGR Price: $7.83 |
| 27 |
601000388 |
BELT HYDRO TRACTION 82.50 Price: $66.99 |
| 28 |
601000528 |
MF RETAINER, STRAP BELT Price: $10.54 |
| 29 |
601000551 |
BOLT, 3/8-16X1.50 CARR Price: $3.99 |
| 30 |
601000059 |
NUT, 5/16-18 REGHEXCTRLK Price: $5.99 |
| 31 |
601000369 |
SPRING, BRAKE HYDRO Price: $5.99 |
| 32 |
601000573 |
SCREW, 3/8-16X1.25 WAHHTA Price: $3.46 |
| 33 |
601000056 |
WASHER, EXLK .384X.69X Price: $3.99 |
| 34 |
601000882 |
CLUTCH BRAKE PAD Price: $7.99 |
| 35 |
601000724 |
PF ASSY CL/BR WELD BLK. 1 Price: $32.99 |
| 36 |
601000442 |
MF BRACKET CL/BR ARM Price: $1.99 |
| 37 |
601000384 |
MF LEVER PARK BRAKE Price: $14.99 |
| 38 |
601000214 |
ROD, PARKING BRAKE Price: $23.99 |
| 39 |
601000219 |
KNOB, PARK BRAKE B Price: $7.09 |
| 40 |
601000666 |
LF BRKT, TRANSAXLE Z-PL Price: $6.99 |
| 41 |
601000017 |
WASHER, FLAT .250X .56X. Price: $1.58 |
| 42 |
601000025 |
PIN, COTTER .090/.086X.75 Price: $1.61 |
| 43 |
601000455 |
SPRING,CLUTCH .113X.750X8 Price: $33.99 |
| 44 |
601000383 |
MF BRACKET-BRAKE, NEUTRAL Price: $4.99 |
| 45 |
601000185 |
PULLEY, IDLER V4L 3.12EFF Price: $49.99 |
| 46 |
601000460 |
ROD CLUTCH Price: $12.99 |
| 47 |
601000461 |
ARM IDLERS Price: $12.99 |
| 48 |
601000387 |
BOLT, .621X .143 HHSH 5/1 Price: $3.76 |
| 49 |
601000883 |
SCREW, 10-16X.50 DRILLITE Price: $0.99 |
