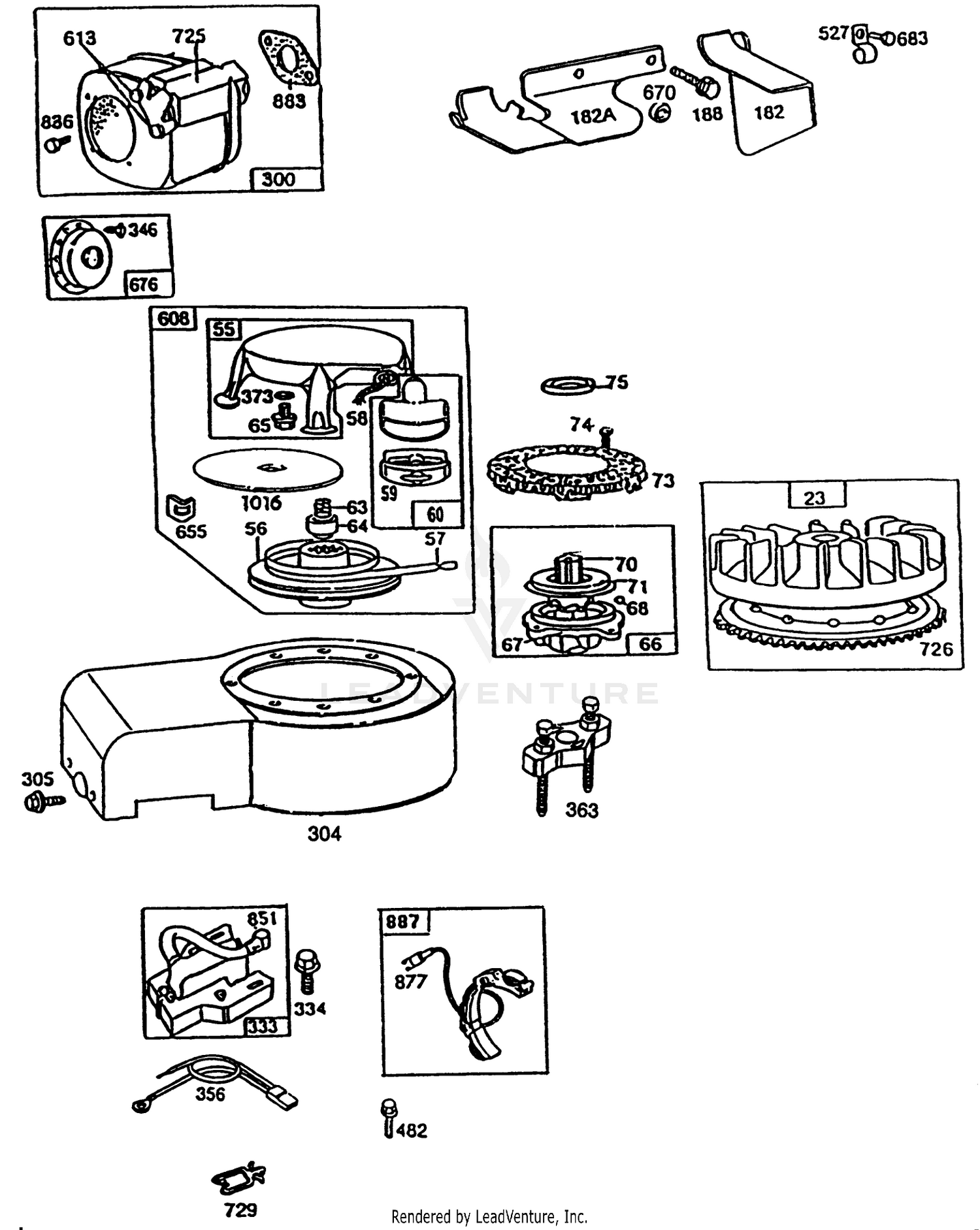

Engine Model 257707-0124-01

Engine Model 257707-0124-01

Parts (89)

RefPart NumberDescription
23 391988 Flywheel and Ring Gear Price: Call Us
34 261462 Valve-Intake Price: Call Us
35 65906 Spring-Valve Price: Call Us
36 26828 Spring-Valve Price: Call Us
40 221596 Retainer-Valve Price: Call Us
41 292260 Retainer-Valve Price: Call Us
42 93630 Retainer-Rotocoil Price: Call Us
45 262248 Tappet Price: Call Us
46 212897 Gear-Cam Price: Call Us
55 393576 Housing-Rewind Price: Call Us
56 295871 Pulley-Rewind Price: Call Us
57 490179 Spring-Rewind Price: Call Us
58 66884 Rope-Rewind Price: Call Us
59 490653 Grip Insert Price: Call Us
60 490652 Grip-Starter Rope Price: Call Us
63 260414 Spring Price: Call Us
64 230543 Adapter Price: Call Us
65 94128 Screw Price: Call Us
66 399671 Clutch-Starter Price: Call Us
67 394897 Ball-Clutch Price: Call Us
68 63770 Ball Price: Call Us
70 298799 Ratchet Price: Call Us
71 394506 Clutch Price: Call Us
73 221796 Screen Price: Call Us
74 93758 Screw-Sem Price: Call Us
75 224061 Washer Price: Call Us
171 281051 Nut Price: Call Us
182 222980 Bracket-Tank (R.H.) Price: Call Us
182A 222112 Bracket-Tank (L.H.) Price: Call Us
188 93634 Screw Price: Call Us
219 490815 Gear-Governor Price: Call Us
225 231058 Crank-Governor Price: Call Us
227 493935 Lever-Governor Price: Call Us
230 222450 Washer Price: Call Us
284 94419 Screw Price: Call Us
300 491413 Muffler Price: Call Us
304 494087 Housing-Blower Price: Call Us
305 94608 Screw-Sem Price: Call Us
306 224542 Shield-Cylinder Price: Call Us
307 93949 Screw-Sem Price: Call Us
308 222725 Cover-Cylinder Head Price: Call Us
333 398811 Armature Group Price: Call Us
334 93381 Screw Price: Call Us
337 802592 Plug-Spark Price: Call Us
346 93705 Screw Price: Call Us
356 398808 Wire Stop Price: Call Us
358 393411 Gasket Set Price: Call Us
363 19203 Puller-Flywheel Price: Call Us
383 89838 Wrench-Plug, Spark Price: Call Us
422 223394 Clamp-Oil Filler Tube Price: Call Us
467 493903 Knob Price: Call Us
482 93621 Screw Price: Call Us
523 391841 Cap-Dipstick-Oil Filler Price: Call Us
524 68838 Seal-Fill Tube Price: Call Us
525 280134 Tube-Oil Filler Price: Call Us
527 221428 Clamp Price: Call Us
552 231597 Nut-Hex. Price: Call Us
562 92613 Bolt Price: Call Us
592 231082 Nut (Governor Control Lever) Price: Call Us
608 390391 Rewind Starter Price: Call Us
613 93927 Screw Price: Call Us
614 93306 Pin-Cotter Price: Call Us
615 93307 Retainer-Ring Price: Call Us
634 491323 Seal-Oil Price: Call Us
635 66538 Boot-Plug, Spark Price: Call Us
655 222598 Anchor Spring Price: Call Us
670 22776 Washer Price: Call Us
676 396903 Deflector-Exhaust Price: Call Us
683 93572 Screw Price: Call Us
725 223023 Shield-Heat Price: Call Us
726 392134 Gear-Ring (Includes Mounting Parts) Price: Call Us
729 281159 Clip-Wire Price: Call Us
741 262135 Gear-Timing Price: Call Us
757 212359 Link-Counterweight Price: Call Us
758 391373 Counterweight Price: Call Us
759 298909 Pin Ass-y-Piston Price: Call Us
761 93875 Screw Price: Call Us
836 94513 Screw-Sem Price: Call Us
842 270920 O-Ring Price: Call Us
847 392067 Fill Group-Oil Price: Call Us
851 221798 Terminal-Cable Price: Call Us
869 261463 Seat-Intake Valve Price: Call Us
870 213316 CG7024 TWO WHEEL TR Price: $2.00
871 261961 Manual-Owner's Price: Call Us
877 393814 Diode Assy. Price: Call Us
883 270917 Gasket Exhaust Price: Call Us
887 391529 Alternator Price: Call Us
1016 490817 Spacer Price: Call Us
1020 261242 Ecentric Price: Call Us
