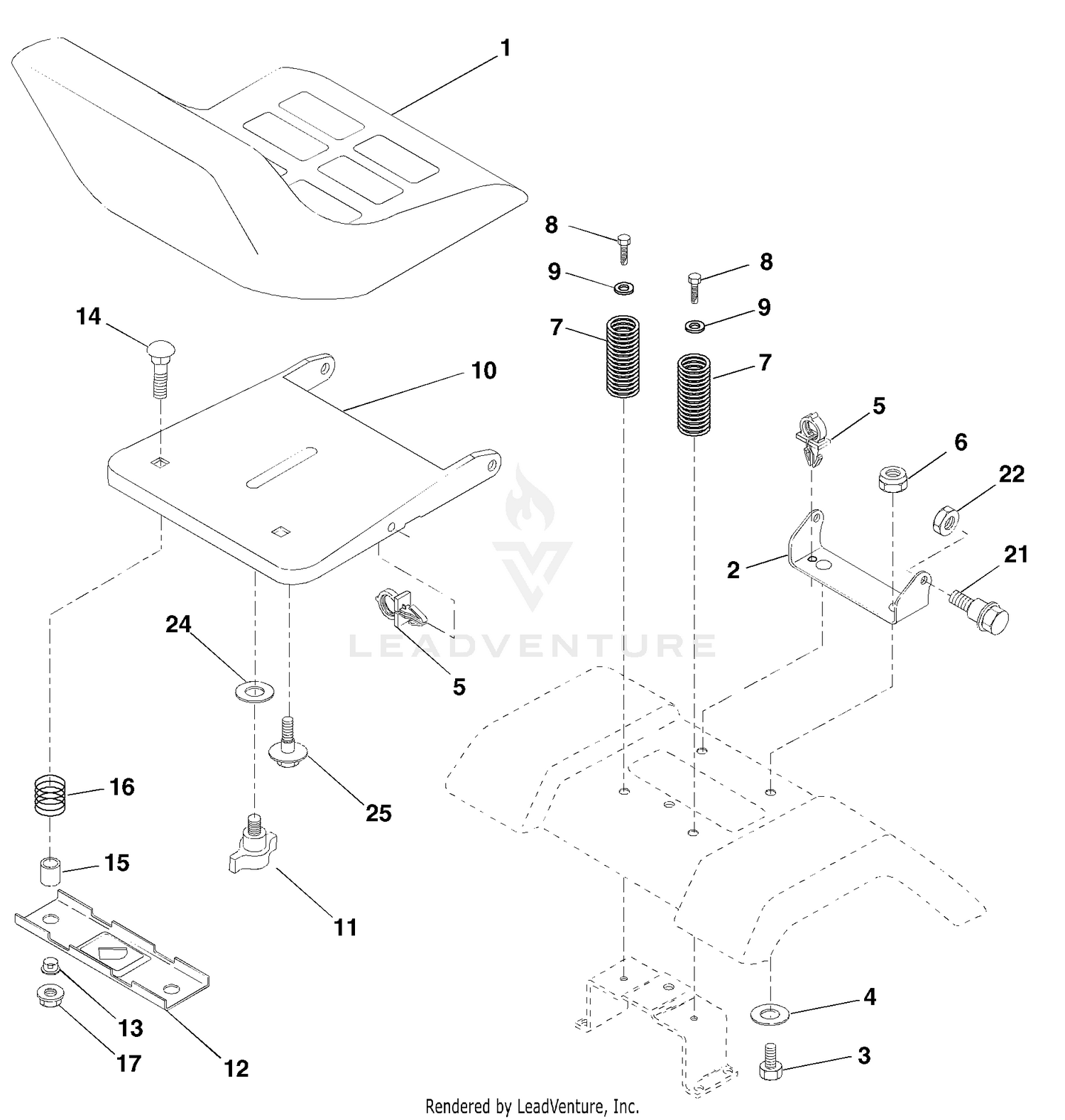

| Ref | Part Number | Description |
|---|
| 1 |
171683 |
Seat Price: Call Us |
| 1 |
95-7522 |
AXLE Price: $377.20 |
| 2 |
140551 |
Bracket Pivot Seat 8 720 Price: Call Us |
| 2 |
99-7564 |
SEAL-OIL Price: $25.36 |
| 3 |
71110616 |
Bolt Fin Hex 3/8-16 Unc X 1 Price: Call Us |
| 3 |
95-7544 |
CLIP Price: $4.04 |
| 4 |
19131610 |
Washer 13/32 X 1 X 10 Ga Price: Call Us |
| 4 |
95-7523 |
SPACER Price: $26.89 |
| 5 |
145006 |
Clip Push-In Price: Call Us |
| 5 |
99-7555 |
SHIM 0.3 Price: $3.29 |
| 5 |
99-7556 |
SHIM 0.2 Price: $3.29 |
| 5 |
99-7557 |
SHIM 0.5 Price: $3.37 |
| 6 |
73800600 |
Nut Hex w/Ins. 3/8-16 Unc Price: Call Us |
| 6 |
95-7524 |
GEAR-BEVEL, 29 TOOTH Price: $222.95 |
| 7 |
124181X |
Spring Seat Cprsn 2 250 Blk Zi Price: Call Us |
| 7 |
99-7534 |
BEARING-BALL Price: $65.44 |
| 8 |
17000616 |
Screw 3/8-16 X 1.5 Price: Call Us |
| 8 |
95-7521 |
COVER-AXLE Price: $107.87 |
| 9 |
106-1071 |
O-RING This part replaces 99-7538. Price: $18.43 |
| 9 |
19131614 |
Washer 13/32 X 1 X 14 Ga. Price: Call Us |
| 10 |
174894 |
Pan Seat Price: Call Us |
| 10 |
93-7775 |
BEARING-BALL This part replaces 99-7561. Price: $127.75 |
| 11 |
166369 |
Knob Seat Price: Call Us |
| 11 |
99-7539 |
CLIP Price: $11.07 |
| 12 |
104-2374 |
BOLT This part replaces 99-7596. Price: $6.33 |
| 12 |
121246X |
Bracket Mounting Switch Price: Call Us |
| 13 |
121248X |
Bushing Snap Blk Nyl 50 Id Price: Call Us |
| 14 |
72050412 |
Bolt Rdhd Sqnk 1/4-20x1-1/2 Price: Call Us |
| 15 |
134300 |
Spacer Split 28 x 88 Price: Call Us |
| 16 |
121250X |
Spring Cprsn Price: Call Us |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Gr 5 Zinc Price: Call Us |
| 21 |
171852 |
Bolt Shoulder 5/16-18 Unc Price: Call Us |
| 22 |
73800500 |
Nut Hex Lock W/Ins 5/16-18 Price: Call Us |
| 24 |
19171912 |
Washer 17/32 X 1-3/16 X 12 Ga. Price: Call Us |
