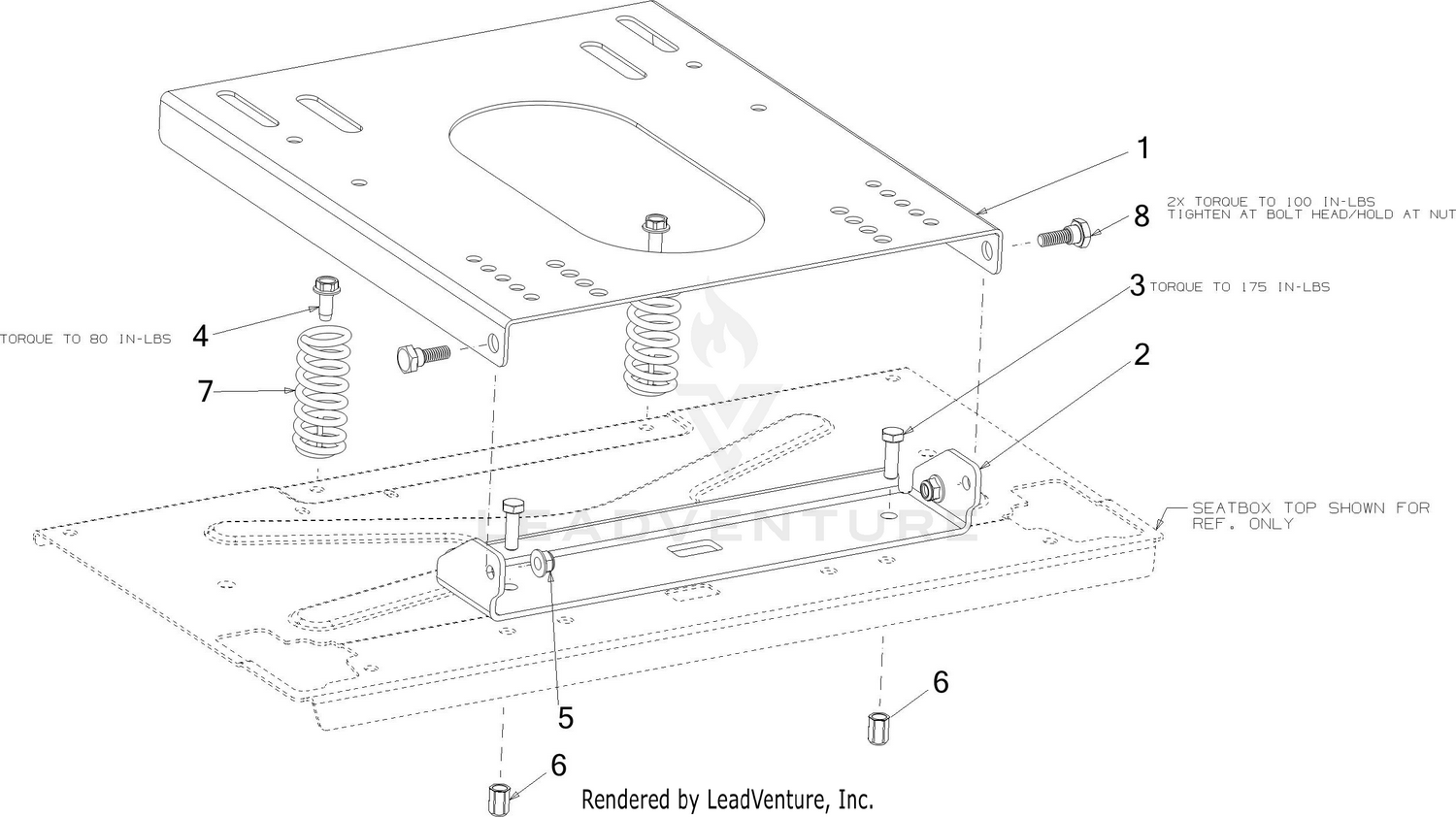

Seat Adjustment
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 703-09603A-4033 | SEAT PLATE DUAL KNOB BASE Price: $69.31 |
| 2 | 703-09633-0637 | SEAT PIVOT BRACKET (POWDER BLACK) This part replaces 703-09633-4033. Price: $28.11 |
| 3 | 710-0643 | SCREW 5/16-18 x 1.00 GR5 Price: $5.99 |
| 4 | 710-1260A | SCREW 5/16-18 x .750 Price: $3.34 |
| 5 | 712-04063 | FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 6 | 728-04068 | NUT RIVET 5/16-18 Price: $3.86 |
| 7 | 732-04035 | COMPRESSION SPRING Price: $9.61 |
