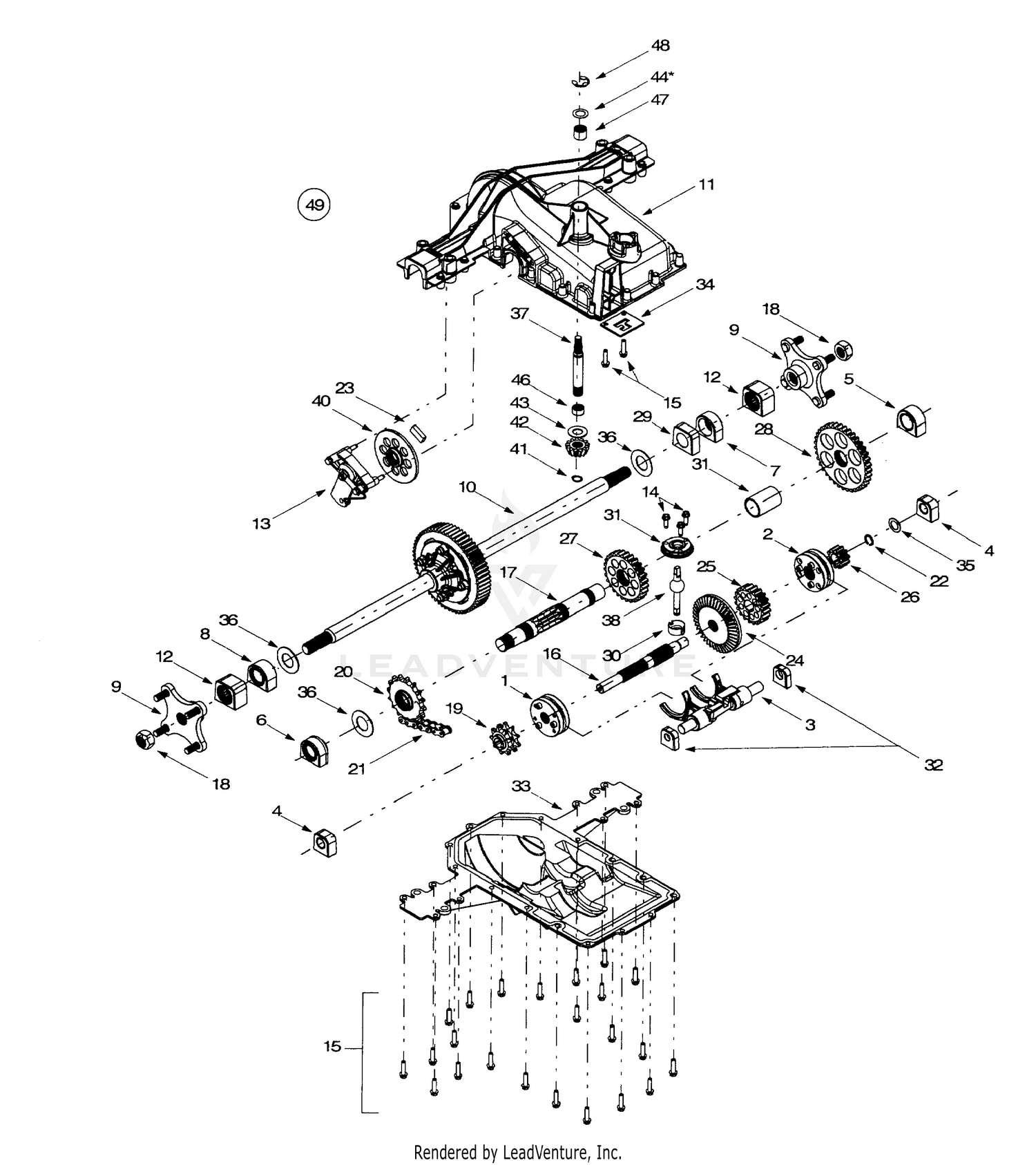

| Ref | Part Number | Description |
|---|
| 1 |
618-0225 |
REVERSE COLLAR ASSEMBLY Not Available Price: |
| 2 |
618-0226 |
Hi-Lo Collar Assembly Price: $110.25 |
| 3 |
618-0227A |
FORK ASSEMBLY-SHIFT Not Available Price: |
| 4 |
618-0284 |
DRIVE SHAFT BLOCK ASSEMBLY Not Available Price: |
| 5 |
618-0285 |
OUTPUT BLOCK ASSEMBLY Not Available Price: |
| 6 |
618-0286 |
OUTPUT BEARING SEAL BLOCK ASSEMBLY Not Available Price: |
| 7 |
618-0287 |
INBOARD BLOCK ASSEMBLY Not Available Price: |
| 8 |
618-0302 |
AXLE BLOCK ASSEMBLY Not Available Price: |
| 9 |
618P0579B |
WHEEL HUB ASSEMBLY This part replaces 618-0365. Price: $68.36 |
| 10 |
918-0368A |
DIFFERENTIAL AXLE ASSEMBLY Not Available This part replaces 618-0368. Price: |
| 11 |
719-0379A |
HOUSING AS Not Available Price: |
| 12 |
641-0002A |
AXLE BLOCK ASSEMBLY Not Available Price: |
| 13 |
961-0012 |
RIGHT HAND BRAKE ASSEMBLY Not Available This part replaces 661-0012. Price: |
| 14 |
710-0642 |
Self-tapping Screw, 1/4-20 x .75 Price: $4.05 |
| 15 |
710-0788 |
Self-tapping Screw, 1/4-20 x 1.0 Price: $6.20 |
| 16 |
711-1051A |
DRIVE SHAFT Not Available Price: |
| 17 |
711-1216 |
OUTPUT SHAFT (RH) Not Available Price: |
| 18 |
712-1329 |
Nut, 3/4-16 Price: $10.88 |
| 19 |
913-0446 |
SPROCKET-9T Not Available This part replaces 713-0446. Price: |
| 21 |
913-0448 |
ENDLESS CHAIN .625 Not Available This part replaces 713-0448. Price: |
| 22 |
916-0131 |
External Snap Ring This part replaces 716-0131. Price: $6.21 |
| 23 |
917-0678 |
BRAKE PUCK This part replaces 717-0678. Price: $6.87 |
| 24 |
917-1438A |
SPUR GEAR 41T Not Available This part replaces 717-1438. Price: |
| 25 |
917-1439A |
SPUR GEAR 20T Not Available This part replaces 717-1439. Price: |
| 26 |
717-1440 |
SPUR GEAR 10T Not Available Price: |
| 27 |
717-1441 |
SPUR GEAR 27T Not Available Price: |
| 28 |
717-1442 |
SPUR GEAR 37T Not Available Price: |
| 29 |
718-0500 |
INNER AXLE BEARING Not Available Price: |
| 30 |
718-0504 |
Shifter Insert Price: $4.19 |
| 31 |
718-0505 |
SHIFT COVER Not Available Price: |
| 32 |
718-0537 |
SHIFTER BRG. BLOCK Not Available Price: |
| 33 |
719-0385 |
LOWER HOUSING Not Available Price: |
| 34 |
718-0540 |
LOCKOUT PLATE Not Available Price: |
| 35 |
736-0337 |
Flat Washer, 5/8 x 1.0 Price: $3.66 |
| 36 |
736-3046A |
Flat Washer, 1.01 x 1.86 x .060 Price: $7.77 |
| 37 |
711-1235 |
INPUT SHAFT Not Available Price: |
| 38 |
747-1140 |
Shift Lever Price: $49.28 |
| 40 |
761-0215 |
Disc Brake Price: $19.46 |
| 41 |
916-0114 |
Retaining Ring,.56 This part replaces 716-0114. Price: $5.99 |
| 42 |
717-1463A |
BEVEL GEAR 13T Not Available This part replaces 717-1463. Price: |
| 43 |
936-0335 |
THRUST WASHER This part replaces 736-0335. Price: $5.94 |
| 44 |
936-0336 |
FLAT WASHER This part replaces 736-0336. Price: $3.90 |
| 46 |
941-0335 |
NEEDLE BEARING This part replaces 741-0335. Price: $16.86 |
| 47 |
741-0696 |
Needle Bearing Price: $26.58 |
| 48 |
716-0231 |
E-ring, .75 Price: $3.50 |
