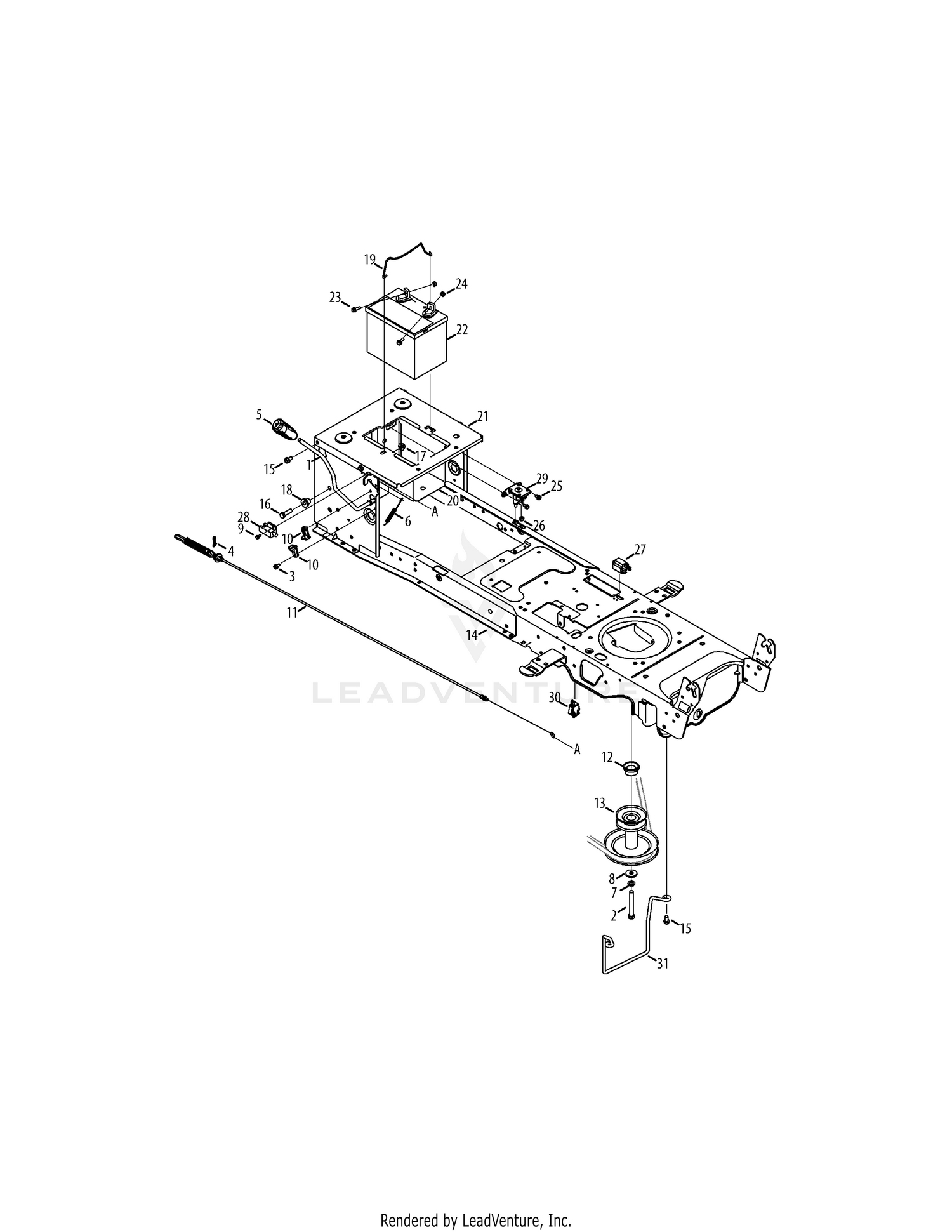

| Ref | Part Number | Description |
|---|
| 1 |
647-04151 |
Handle Ass’y, PTO Price: $19.55 |
| 2 |
710-04379A |
Hex Screw, 7/16-20, 3.50, Gr5, Lock This part replaces 710-04876. Price: $5.35 |
| 3 |
710-0599 |
Screw, Self-tapping, 1/4-20, 0.50 Price: $3.86 |
| 4 |
714-04040 |
Pin, Cotter, Bow-Tie 72 Price: $1.28 |
| 5 |
720-04049A |
Grip, Handle, 3/8 Price: $14.09 |
| 6 |
732-0932 |
Spring, Ext, .38 Dia x 5.6 Price: $13.08 |
| 7 |
936-0171 |
Washer, Lock, 7/16, Regular Duty Price: $3.86 |
| 8 |
736-0322 |
Washer, Flat, .450 x 1.250 x .164 Price: $8.42 |
| 9 |
738-04237A |
Screw, Shoulder, #10-32, .500 Price: $5.30 |
| 10 |
741-04119A |
Bearing, PTO Price: $4.56 |
| 11 |
946-04618C |
Cable, Engag, Deck This part replaces 946-04618A. Price: $40.73 |
| 12 |
750-0956 |
Spacer, 1.010 x 1.400 x .825 Price: $17.79 |
| 13 |
956-04067B |
ENGINE PULLEY (3.56 x 6.12 DIA) This part replaces 956-04067A. Price: $76.13 |
| 14 |
683-04469D-0637 |
LOWER FRAME ASSEMBLY(POWDER BLACK) Not Available This part replaces 683-04469B-0637. Price: |
| 15 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 16 |
710-3005 |
Hex Screw, 3/8-16, 1.25, Gr5, Std Price: $3.61 |
| 17 |
712-04065 |
Nut, Flange Lock, 3/8-16, Grf, Price: $3.68 |
| 18 |
738-04058 |
Spacer, Shoulder, .38 x 1.0 x .70 Price: $3.86 |
| 19 |
747-04121A |
Rod, Battery Price: $5.52 |
| 20 |
783-0349-0637 |
BATTERY TRAY Not Available Price: |
| 21 |
783-06089-0638 |
SEAT FRAME BRACKET (MTD RED) Not Available Price: |
| 22 |
925-1707D |
BATTERY Not Available Price: |
| 23 |
710-04666 |
Hex Flange Screw, 1/4-20, .75, Gr5 Price: $6.04 |
| 24 |
712-0271 |
Nut, Sems, 1/4-20 Price: $3.78 |
| 25 |
710-0653 |
Screw, Self-tapping, 1/4-20, 0.375, Price: $3.78 |
| 26 |
712-04064 |
Nut, Flange Lock, 1/4-20, Grf, Price: $3.64 |
| 27 |
725-04232 |
Switch, 3-Pole Price: $46.03 |
| 28 |
725-04363 |
Switch, Interlock Price: $13.25 |
| 30 |
725-04807 |
Switch, Plunger, Snap Mount Price: $12.83 |
| 31 |
747-05171A |
Belt Keeper Rod Price: $28.39 |
