Parts Catalog

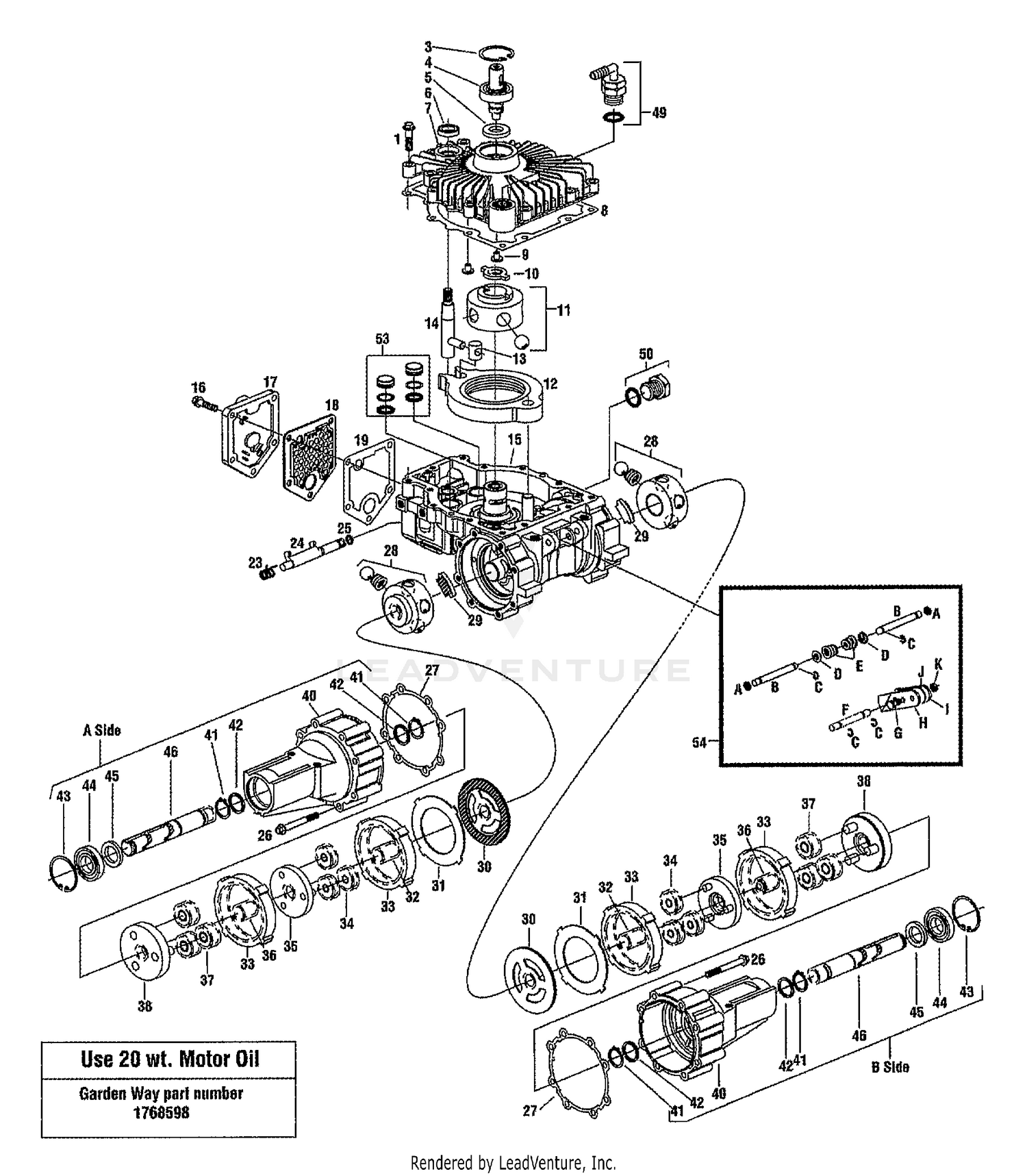

HYDROSTATIC TRANSMISSION BREAKDOWN

Parts (49)

Ref	Part Number	Description
1	1769200	SCREW Not Available Price:
3	1769201	RING RETAI Not Available Price:
4	1760892	INPUT SHAFT Not Available Price:
5	1760893	OIL SEAL -3 Not Available Price:
6	1757374	SEAL - CON Not Available Price:
7	1769202	COVER Not Available Price:
8	1769203	GASKET-TRA Not Available Price:
9	1769204	BUTTON Not Available Price:
10	1769205	DRIVE Not Available Price:
11	N/A	PUMP ROTOR/BALL/PIN (S/A)
12	N/A	CAM RING
13	1769208	INSERT Not Available Price:
14	1769209	SHAFT-CONT Not Available Price:
15	1769211	HOUSING Not Available Price:
17	N/A	FILTER BASE "L"
18	N/A	FILTER
19	N/A	GASKET
23	1769217	SPRING DUMP VALVE Not Available Price:
24	1757376	BRACKET-DUMP Not Available Price:
25	1757377	O-RING Not Available Price:
26	1769218	SCREW Not Available Price:
27	1769219	GASKET Not Available Price:
29	1769221	PAD Not Available Price:
30	1769222	PLATE-REACTION Not Available Price:
31	1769223	PLATE Not Available Price:
33	1769225	GEAR Not Available Price:
34	1769226	PLANET GEA Not Available Price:
35	1769227	PRIMARY CA Not Available Price:
38	1769230	SECOND CAR Not Available Price:
40	1769231	HOUSING AX Not Available Price:
41	1769232	RING-RETAI Not Available Price:
42	1769233	WASHER-THR Not Available Price:
43	1769234	RING-RETAI Not Available Price:
44	1757700	BEARING Not Available Price:
45	1769235	SEAL RADIAL LIP Not Available Price:
46	1769236	SHAFT AXLE Not Available Price:
50	N/A	PLUG O-RING (S/A)
53	1769242	PISTION Not Available Price:
54	N/A	BRAKE LEVER PARTS
54A	1769243	QUAD SEAL Not Available Price:
54B	1769244	PUSH ROD Not Available Price:
54C	916-0125	E-RING 0375 DIA SHAFT Not Available This part replaces 1769245. Price:
54D	1769246	SPRING BAS Not Available Price:
54E	1769247	SPRING CON Not Available Price:
54F	1769248	SHAFT BRAK Not Available Price:
54G	1769249	SCR-HH Not Available Price:
54H	1769250	LEVER Not Available Price:
54I	1769251	LEVER Not Available Price:
54K	1769253	NUT Not Available Price:
