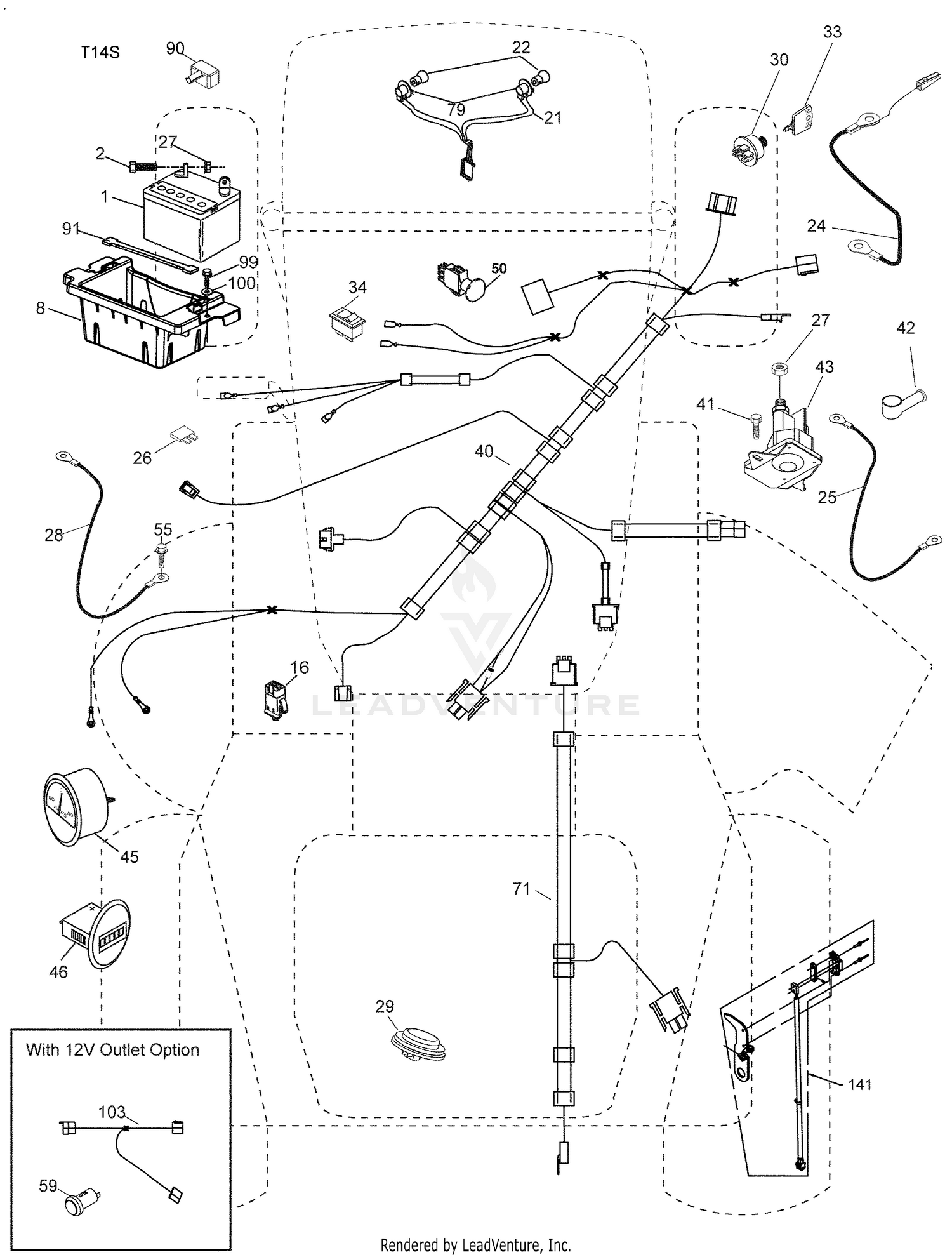

| Ref | Part Number | Description |
|---|
| 1 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
29-9790 |
DISCONTINUED Price: Call Us |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
321-9 |
SCREW-HH Price: $0.27 |
| 4 |
3210-7 |
SCREW-HH Price: $0.61 |
| 5 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 6 |
3219-2 |
NUT-HEX Price: $0.37 |
| 7 |
29-6162 |
SWITCH-MICRO Price: $107.13 |
| 8 |
3249-11 |
SCREW-MACHINE Price: $0.54 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 9 |
46-8810 |
STOP-SPRING, LEAF Price: $9.17 |
| 10 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 11 |
3217-16 |
NUT-HEX Price: $0.25 |
| 12 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 13 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 14 |
323-39 |
SCREW-HH Price: $1.60 |
| 16 |
52-8890-03 |
DISCONTINUED This part replaces 52-8890. Price: Call Us |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
52-9070 |
PLATE-PUMP Price: $101.93 |
| 18 |
322-17 |
SCREW-HH Price: $2.62 |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 21 |
321-4 |
SCREW-HH Price: $0.99 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
251-259 |
BEARING-BALL Price: $13.67 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 This part replaces 532412895. Price: $7.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
532402167 |
HARNESS IGN. DASH Price: $99.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 45 |
529910801 |
AMMETER This part replaces 532425270. Price: $27.99 |
| 46 |
529910701 |
HOUR METER This part replaces 532425271. Price: $69.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 59 |
596941001 |
Outlets This part replaces 532400303. Price: $11.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 90 |
532400724 |
COVER.TERMINAL.BATTERY Price: $3.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 103 |
532421747 |
HARNESS.PIGTAIL.12V.OUTLET. Price: $12.99 |
