| Ref | Part Number | Description |
|---|
| 1 |
165892 |

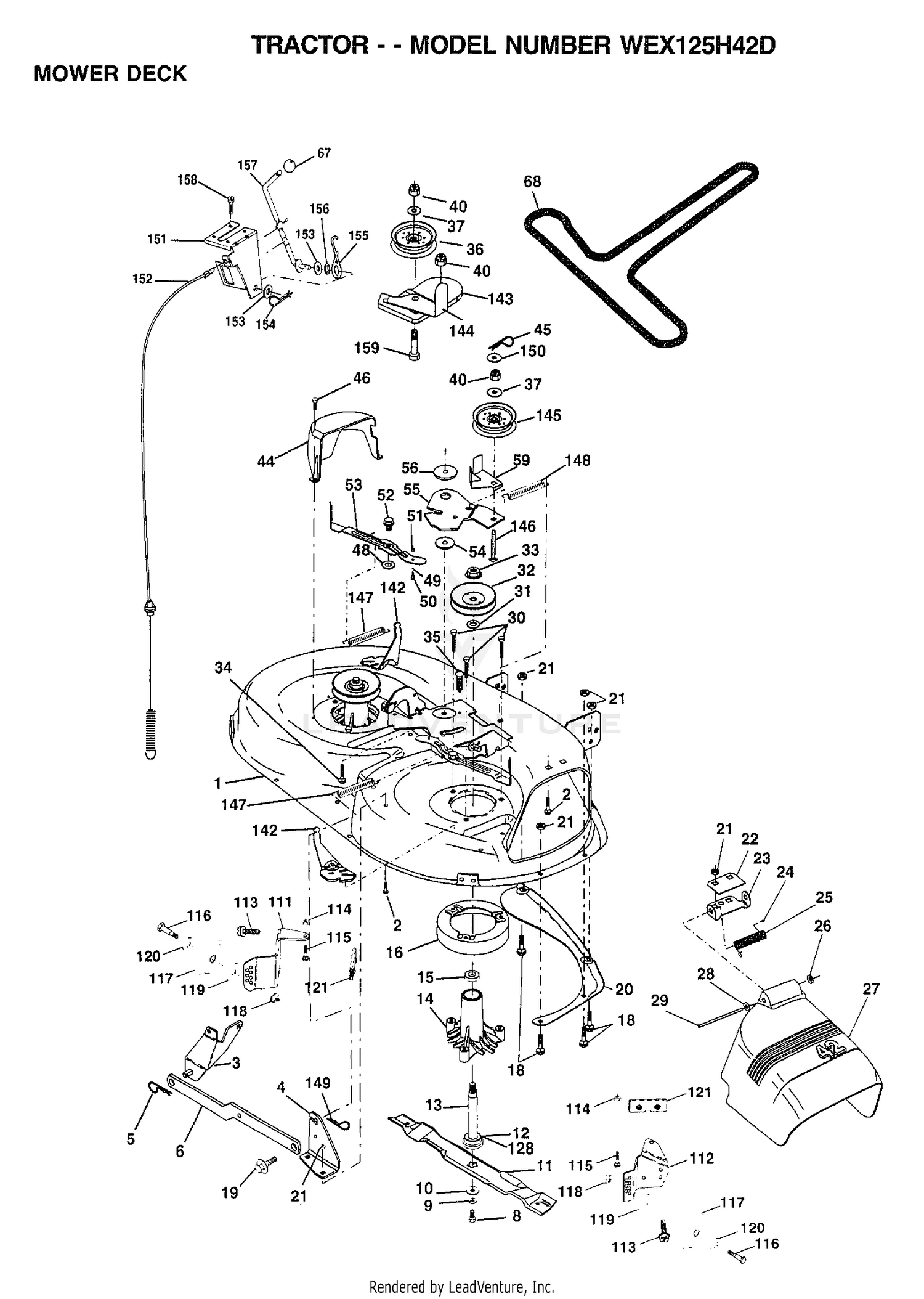

MOWER DECK ASSY Price: Call Us |
| 1 |
240-4 |
GROMMET-RUBBER Price: $9.91 |
| 2 |
69-8970 |
SPACER Price: $9.57 |
| 2 |
72140506 |
BOLT Price: Call Us |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 3 |
69-8940 |
WASHER Price: $1.76 |
| 4 |
165460 |
BRACKET DECK Price: Call Us |
| 4 |
340-70 |
NUT-LOCK Price: $2.10 |
| 5 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 6 |
328-24 |
SCREW-HH Price: $23.99 |
| 7 |
69-4400-01 |
CARRIER-DECK, WING Price: $2,088.97 |
| 8 |
32128-45 |
NUT-HHF Price: $7.67 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
321-9 |
SCREW-HH Price: $0.27 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 11 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
32152-4 |
NUT-LOCK, CONE Price: $1.29 |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 13 |
3272-33 |
PIN-COTTER Price: $0.54 |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 14 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 15 |
110485X |
BEARING Price: Call Us |
| 16 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 18 |
72140505 |
BOLT Price: Call Us |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 20 |
159770 |
BAFFLE VORTEX 42 Price: Call Us |
| 21 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 22 |
134753 |
STIFFENER BRKT Price: Call Us |
| 22 |
69-9450-03 |
BRACKET-HOSE, WING (LH) Price: $26.57 |
| 22 |
69-9460-03 |
BRACKET-HOSE, WING (RH) Price: $25.43 |
| 23 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 24 |
240-3 |
GROMMET-RUBBER Price: $17.44 |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 25 |
125-1984 |
SPACER This part replaces 69-9000. Price: $0.68 |
| 26 |
110452X |
NUT PUSH M Price: Call Us |
| 26 |
69-9010 |
WASHER Price: $1.83 |
| 27 |
130968X428 |
SHIELD DEFLECTOR 42'' Price: Call Us |
| 27 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 28 |
19111016 |
WASHER Price: Call Us |
| 28 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 29 |
131491 |
HINGE ROD Price: Call Us |
| 29 |
99-5917 |
SHAFT-PIVOT, LIFT ARM Price: $381.77 |
| 30 |
340-115 |
FITTING-TEE, SWIVEL NUT Price: $56.09 |
| 31 |
129963 |
WASHER Price: Call Us |
| 31 |
323-6 |
SCREW-HH Price: $0.66 |
| 32 |
153535 |
PULLEY.MANDREL.42 Price: Call Us |
| 32 |
32108-103 |
SCREW-FH Price: $0.68 |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 33 |
328-26 |
SCREW-HH Price: $38.75 |
| 34 |
69-9300 |
PAD-BUMPER Price: $8.68 |
| 34 |
72110614 |
BOLT Price: Call Us |
| 35 |
133835 |
XMAS TREE FASTNER Price: Call Us |
| 35 |
93-9922 |
SPACER Price: $11.40 |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 36 |
72-4310 |
SWITCH-BALL Price: $84.47 |
| 37 |
19131316 |
WASHER Price: Call Us |
| 37 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 38 |
39-7650-01 |
COVER Price: $14.67 |
| 39 |
93-9925-01 |
ARM-LIFT, RH Price: $2,514.65 |
| 39 |
93-9926-01 |
ARM-LIFT, LH Price: $2,514.68 |
| 40 |
3296-68 |
NUT-LOCK, NI Price: $14.67 |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 41 |
98-1452 |
WASHER-THRUST Price: $0.94 |
| 42 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 43 |
328-8 |
SCREW-HH Price: $5.54 |
| 44 |
140088 |
GUARD MAND LH BLK Price: Call Us |
| 44 |
69-5490 |
HOSE ASM Price: $89.51 |
| 45 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 45 |
4497H |
RETAINER M Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 46 |
74-2170 |
HYD CYLINDER ASM Price: $1,341.49 |
| 47 |
323-15 |
SCREW-HH Price: $1.53 |
| 48 |
133944 |
HARD SMALL WASHER Price: Call Us |
| 48 |
74-2680-03 |
BRACKET-BULKHEAD Price: $34.49 |
| 49 |
155066 |
ROLLER ASM-CAM Price: Call Us |
| 49 |
98-7346 |
SPACER Price: $30.67 |
| 50 |
131340 |
SHOULDER BOLT Price: Call Us |
| 50 |
69-1580-03 |
ANCHOR-LH Price: $527.05 |
| 50 |
69-1600-03 |
ANCHOR-RH Price: $527.05 |
| 51 |
69-5970 |
TUBE-HYD Price: $143.02 |
| 51 |
69180 |
LOCKNUT Price: Call Us |
| 52 |
139888 |
BOLT.SHLD.5/16-18 Price: Call Us |
| 52 |
95-6498 |
TUBE-HYD Price: $161.76 |
| 53 |
131845 |
BRAKE PAD ARM ASM Price: Call Us |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 55 |
155046 |
ARM-IDLER Price: Call Us |
| 56 |
165723 |
SPACER.RETAINER.MOWER Price: Call Us |
| 59 |
141043 |
GUARD IDLER TUV Price: Call Us |
| 67 |
106932X |
KNOB T(3/8 HOLE) Price: Call Us |
| 68 |
144959 |
BELT-V.SEC.46.KEL Price: Call Us |
| 111 |
155197 |
BRACKET.GWHL.LH. Price: Call Us |
| 112 |
155198 |
BRACKET.GWHL.RH. Price: Call Us |
| 113 |
17060512 |
SCREW Price: Call Us |
| 114 |
73510500 |
NUT Price: Call Us |
| 115 |
72110504 |
SUB= 872110504 Price: Call Us |
| 116 |
4898H |
BOLT M Price: Call Us |
| 117 |
105455X |
WHEEL.GAGE.BLK.PL Price: Call Us |
| 118 |
73930600 |
LOCKNUT Price: Call Us |
| 119 |
19121414 |
WASHER Price: Call Us |
| 120 |
19171512 |
WASHER Price: Call Us |
| 121 |
143723 |
BRACKET.EXTRD.GWL Price: Call Us |
| 128 |
153390 |
WASHER.FELT. Price: Call Us |
| 142 |
165890 |
ARM SPRING BRAKE MOWER Price: Call Us |
| 143 |
157109 |
BRACKET ARM IDLER Price: Call Us |
| 144 |
158634 |
KEEPER BELT CLUTCH CABLE Price: Call Us |
| 145 |
165888 |
PULLEY IDLER FLAT Price: Call Us |
| 146 |
165891 |
BOLT Price: Call Us |
| 147 |
131335 |
SPRING EXTENSION Price: Call Us |
| 148 |
169022 |
SPRING RETURN IDLER Price: Call Us |
| 149 |
165898 |
RETAINER SPRING Price: Call Us |
| 150 |
19091216 |
WASHER PM Price: Call Us |
| 151 |
169670 |
BRKT CLUTCH CABLE Price: Call Us |
| 153 |
169674 |
WASHER FLAT Price: Call Us |
| 154 |
169675 |
SPRING RETAINER Price: Call Us |
| 155 |
169671 |
SPRING RETENTION LVR CLUTCH CAB Price: Call Us |
| 156 |
169672 |
SPACER Price: Call Us |
| 157 |
169669 |
ROD.CLUTCH.CABLE.3/8 Price: Call Us |
| 158 |
17720410 |
SCREW LT Price: Call Us |
| 159 |
72140614 |
BOLT Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
