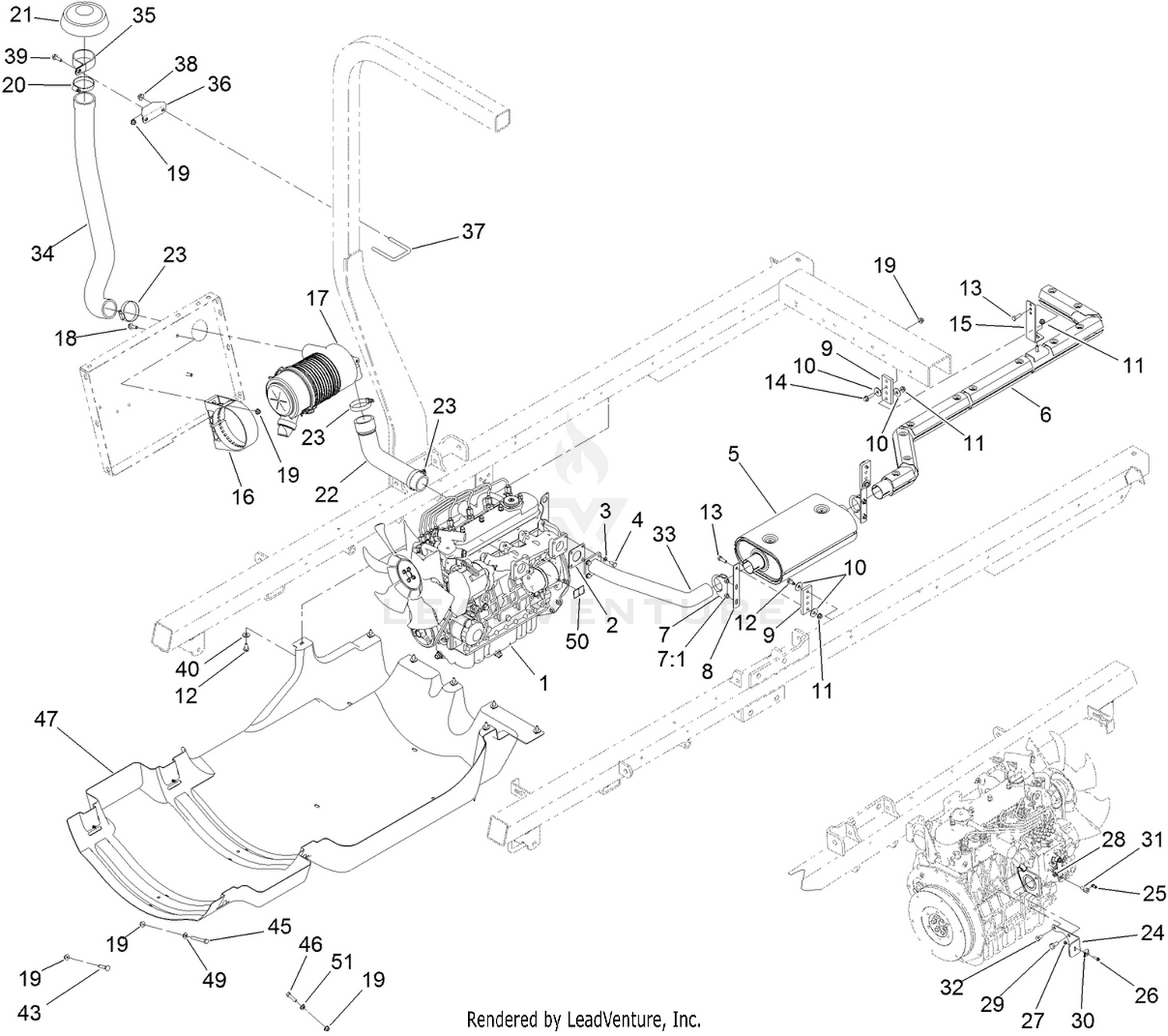

| Ref | Part Number | Description |
|---|
| 1 |
132-5205 |
ENGINE-KUBOTA, V1505 Price: $6,711.43 |
| 2 |
99-8343 |
GASKET-MUFFLER Price: $14.99 |
| 3 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 4 |
33114-016 |
SCREW-HH Price: $0.27 |
| 5 |
120-8536 |
MUFFLER Price: $214.30 |
| 6 |
131-3333 |
PIPE-TAIL Price: $256.05 |
| 7 |
2112-6 |
CLAMP-MUFFLER Price: $7.53 |
| 8 |
119-0503 |
HANGER-MUFFLER Price: $7.21 |
| 9 |
117-0744 |
HANGER-MUFFLER Price: $4.52 |
| 10 |
52-2860 |
WASHER Price: $0.84 |
| 11 |
32128-25 |
NUT-HF Price: $3.19 |
| 12 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 13 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 14 |
119-4036 |
SCREW-HHF Price: $0.53 |
| 15 |
120-8557 |
BRACKET-HANGER Price: $13.46 |
| 16 |
98-4525 |
BRACKET-CLEANER, AIR Price: $52.87 |
| 17 |
106-5277 |
AIR CLEANER ASM Price: $134.07 |
| 18 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 19 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 20 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 21 |
139-0686 |
RAIN CAP ASM This part replaces 105-2539. Price: $25.83 |
| 22 |
106-5241 |
HOSE-CLEANER, AIR Price: $95.34 |
| 23 |
2412-130 |
CLAMP-HOSE Price: $2.57 |
| 24 |
110-9009-0P |
BRACKET-CABLE, THROTTLE This part replaces 110-9009-03. Price: $13.98 |
| 25 |
112-9919 |
STOP-CABLE, THROTTLE Price: $3.18 |
| 26 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 27 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 28 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 29 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 30 |
81-1690 |
CLAMP-CABLE Price: $2.24 |
| 31 |
98-9311 |
SWIVEL-THROTTLE Price: $28.41 |
| 32 |
139-9940 |
SCREW-HH This part replaces 99-5132. Price: $1.99 |
| 33 |
117-7950 |
MANIFOLD-EXHAUST Price: $98.51 |
| 34 |
136-2267 |
HOSE-AIR CLEANER Price: $80.04 |
| 35 |
2412-102 |
CLAMP-R Price: $6.85 |
| 36 |
131-3319-03 |
BRACKET-MOUNT, AIR INTAKE Price: $12.85 |
| 37 |
47-3460 |
U-BOLT Price: $29.53 |
| 38 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 39 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 40 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 43 |
33-5790 |
BOLT-CARR Price: $3.69 |
| 45 |
322-13 |
SCREW-HH Price: $2.73 |
| 46 |
322-6 |
SCREW-HH Price: $0.45 |
| 47 |
130-7177 |
SHROUD-UNDERCARRIAGE Price: $591.88 |
| 49 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 50 |
106-5517 |
DECAL-WARNING Price: $3.49 |
