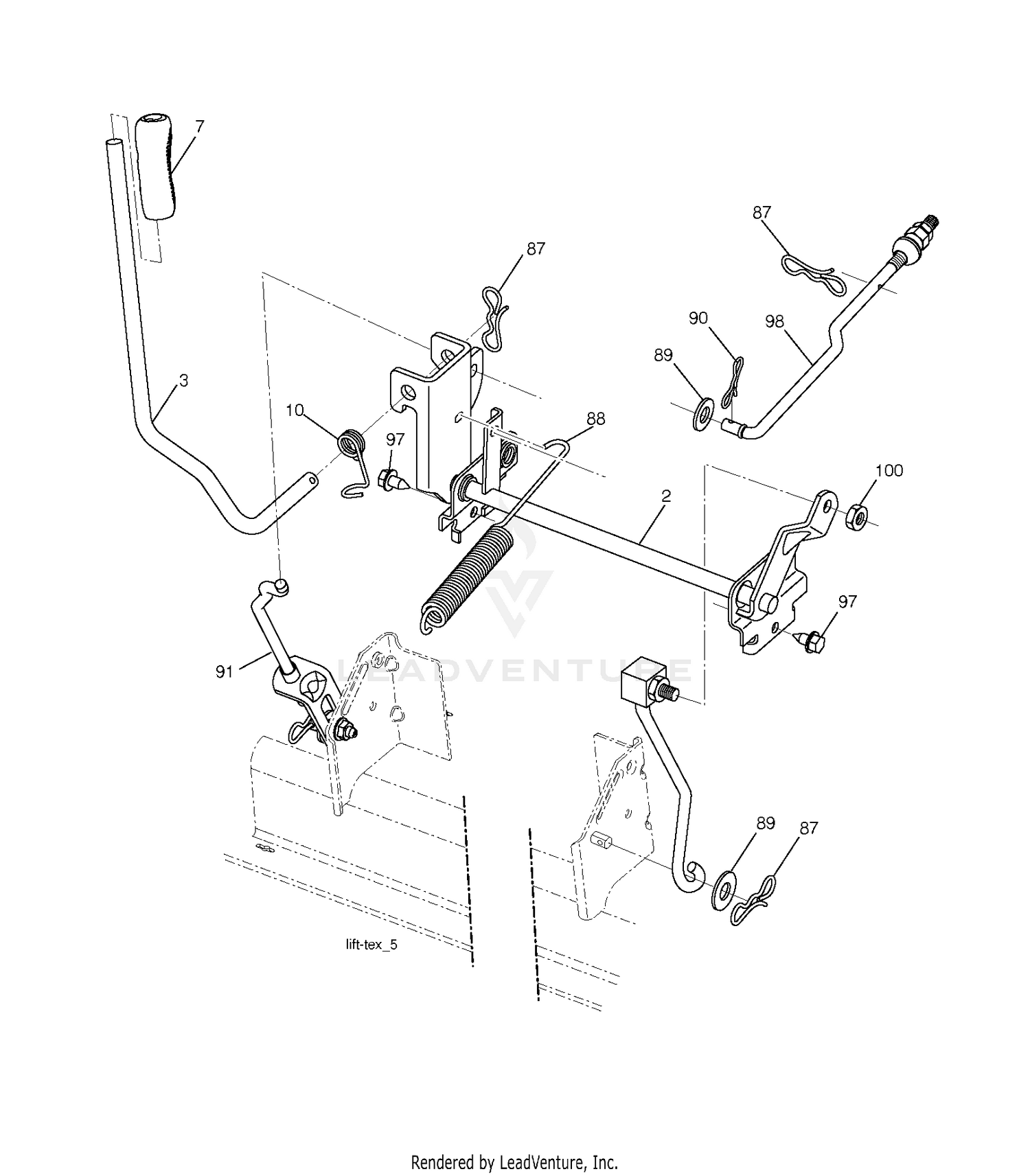

| Ref | Part Number | Description |
|---|
| 2 |
105-3992-03 |
BRACKET-BULKHEAD Price: $45.94 |
| 2 |
532422027 |
SHAFT.ASM.CROSS.LIFT This part replaces 532195223. Price: $69.99 |
| 3 |
596270601 |
Levers This part replaces 532195230. Price: $19.99 |
| 4 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 5 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 6 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 7 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 8 |
87-3470 |
BUMPER Price: $18.89 |
| 9 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 10 |
532196314 |
SPRING.TORSION.LIFT.HANDLE Price: $3.99 |
| 10 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 11 |
105-9827 |
SHAFT Price: $77.02 |
| 12 |
136-3385 |
NO.2 LIFTARM ASM This part replaces 105-9202. Price: $800.50 |
| 13 |
136-3387 |
NO. 3 LIFTARM ASM This part replaces 105-9203. Price: $800.50 |
| 14 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 15 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 16 |
127-6428 |
LIFT CYLINDER ASM This part replaces 107-1978. Price: $655.93 |
| 17 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 18 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 19 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 20 |
92-7548 |
PIN-CYLINDER Price: $16.62 |
| 21 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 23 |
131-4201 |
PIN-PIVOT This part replaces 104-5525. Price: $20.50 |
| 24 |
323-7 |
SCREW-HH Price: $0.65 |
| 25 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 26 |
323-4 |
SCREW-HH Price: $1.02 |
| 27 |
105-9839 |
STOP-ROTATION, NO. 2 AND 3 Price: $67.21 |
| 28 |
3245-1 |
SCREW-SET, HSH Price: $0.54 |
| 29 |
131-7765-0P |
SUPPORT-BUMPER, REAR This part replaces 119-3941-03. Price: $77.14 |
| 30 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 31 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 33 |
136-3510 |
CARRIER FRAME ASM This part replaces 115-3453. Price: $664.28 |
| 34 |
112-9900-03 |
GUARD-FOOT Price: $82.81 |
| 35 |
323-52 |
SCREW-HH Price: $3.63 |
| 36 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 37 |
105-9823 |
BUSHING-CARRIER Price: $5.52 |
| 38 |
105-9822 |
SPACER Price: $3.16 |
| 87 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 88 |
532410710 |
SPRING.LIFT.ASSIST Price: $9.99 |
| 89 |
819191912 |
WASHER.CLEAR.ZINC Price: $2.99 |
| 90 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 91 |
589464807 |
Links This part replaces 532195181. Price: $14.99 |
| 97 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 98 |
581506903 |
Links This part replaces 532195270. Price: $9.99 |
| 100 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
