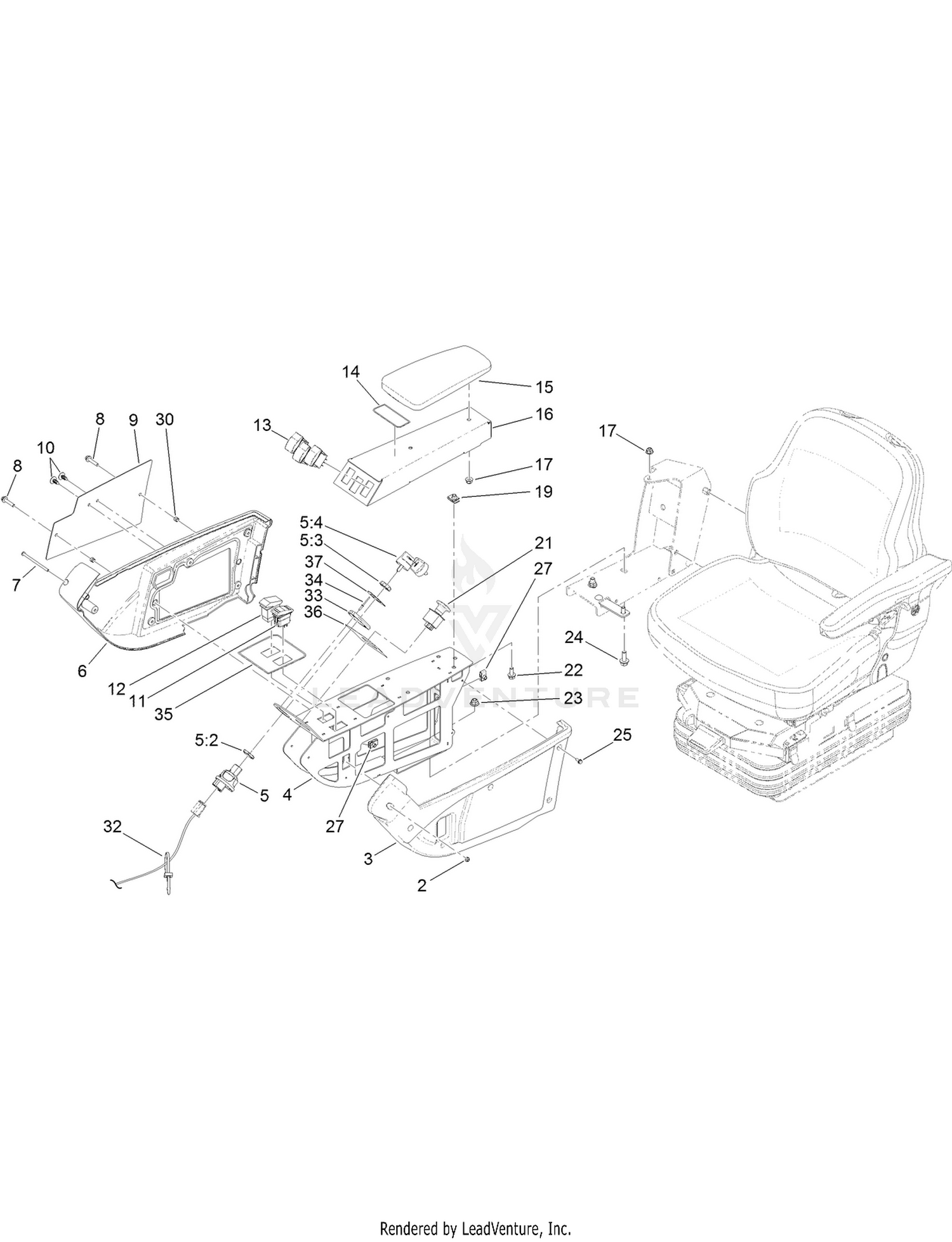

Control Console Assembly
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 3296-12 | NUT-LOCK, NI Price: $1.29 |
| 3 | 108-7604 | COVER-LH Price: $55.56 |
| 4 | 121-3876-03 | PANEL Price: Call Us |
| 5 | 121-5159 | IGNITION SWITCH ASM Price: $84.21 |
| 6 | 108-7605 | COVER-RH Price: $55.56 |
| 7 | 3250-22 | SCREW-PPH Price: $4.09 |
| 8 | 3234-21 | SCREW-HHF Price: $2.19 |
| 9 | 115-8849-03 | PLATE-COVER Price: $23.24 |
| 10 | 117-2382 | PLUG-PLASTIC Price: $0.69 |
| 11 | 114-3329 | SWITCH-ROCKER Price: $206.34 |
| 12 | 106-2027 | SWITCH-INTERMITTENT Price: $71.05 |
| 13 | 100-1535 | SWITCH Price: $84.91 |
| 14 | 114-0135 | DECAL-CONSOLE, LIFT Price: $39.51 |
| 15 | 108-7602 | REST-ARM Price: $158.43 |
| 16 | 127-3531-03 | PANEL-CONTROL Price: $106.43 |
| 17 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 19 | 94-2413 | NUT-U Price: $1.79 |
| 21 | 93-9999 | SWITCH-PTO Price: $42.99 |
| 22 | 3234-5 | SCREW-HHF Price: $0.42 |
| 23 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 24 | 3234-42 | SCREW-HHF Price: $1.10 |
| 25 | 32144-112 | SCREW-HWH Price: $0.99 |
| 27 | 107069 | CLIP Price: $1.79 |
| 30 | 110-0542 | SPACER-FLANGE Price: $4.94 |
| 32 | 3290-378 | TIE-CABLE Price: $0.79 |
| 33 | 121-3889 | STEP-ELEVATED, SWITCH Price: $6.27 |
| 34 | 3269-17 | RIVET-POP Price: $0.25 |
| 35 | 114-0133 | DECAL-CONSOLE, LOWER Price: $38.28 |
| 36 | 121-3883 | DECAL-CONSOLE, PTO Price: $10.29 |
