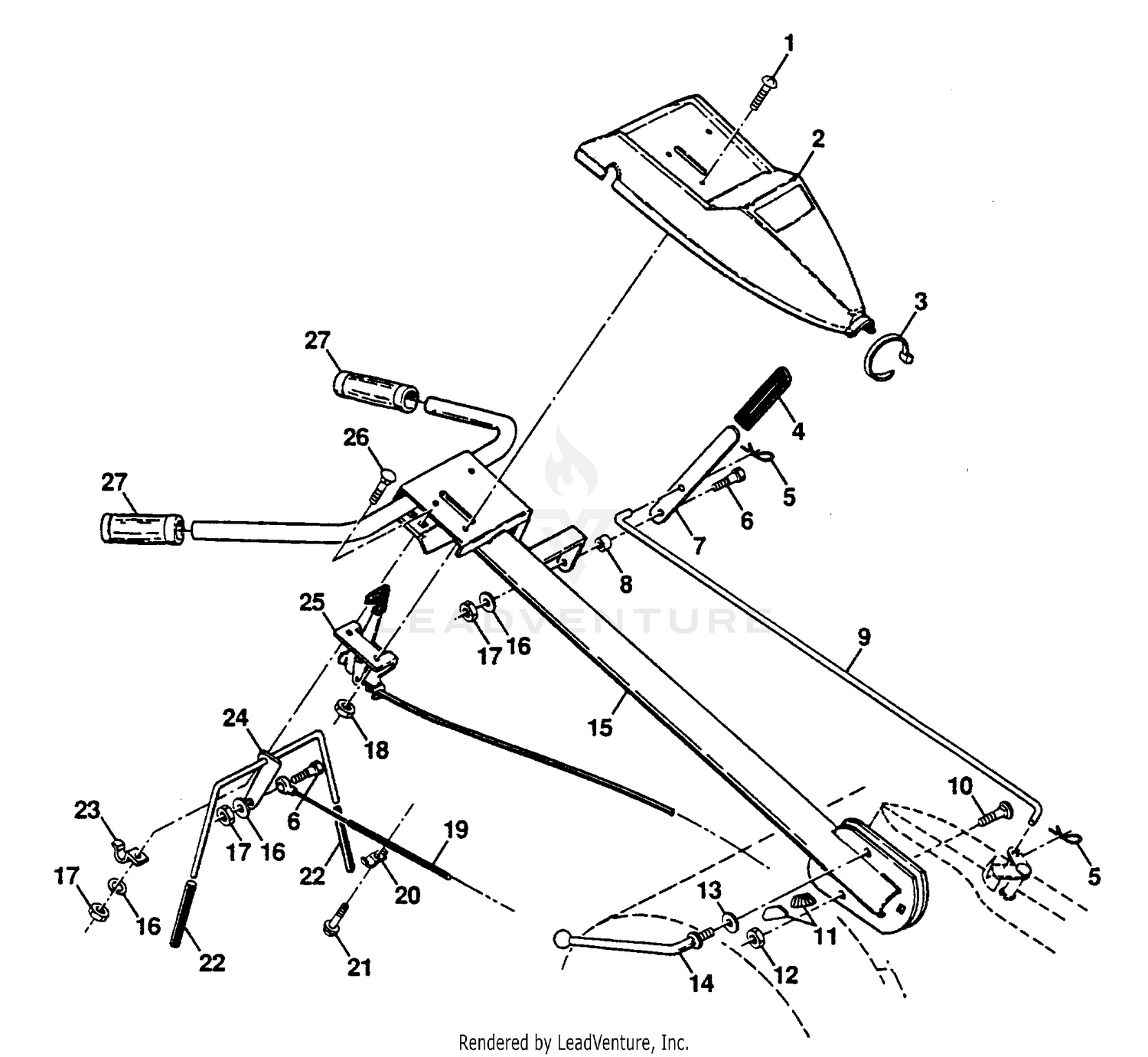

| Ref | Part Number | Description |
|---|
| 1 |
871191008 |
Screw, Phd. # 10-24 Price: $3.99 |
| 2 |
532126951 |
Panel, Control Price: $36.03 |
| 2 |
93-7830 |
DECAL-TORQUE This part replaces 67-1720. Price: $23.91 |
| 3 |
532104164 |
Tie, Cable Price: $3.99 |
| 3 |
85-4730 |
DECAL-ONLY, HYD OIL Price: $2.46 |
| 4 |
532008206 |
GRIP T This part replaces 532124797. Price: $3.99 |
| 4 |
93-7836 |
DECAL-PEDAL, TRACTION This part replaces 27-7320. Price: $14.38 |
| 5 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 5 |
70-2200 |
DECAL Price: $5.09 |
| 6 |
32148-9 |
NUT-CLINCH Price: $2.65 |
| 6 |
532081328 |
Bolt, Shoulder Price: $3.99 |
| 7 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 7 |
532109335 |
Handle, Shift Price: $3.99 |
| 8 |
3234-25 |
SCREW-HHF Price: $7.69 |
| 8 |
532109313 |
Grommet, Rubber Price: $4.99 |
| 9 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 9 |
532109337 |
Rod, Shift Price: $22.99 |
| 10 |
32128-21 |
NUT-HF Price: $0.39 |
| 10 |
872110608 |
Bolt, Carriage 3/8-16 x 1 Gr. 5 Price: $3.99 |
| 11 |
532109229 |
Lock, Handle Price: $3.99 |
| 11 |
98-3866-01 |
BRACE-UPPER Price: $164.20 |
| 12 |
873680600 |
Nut This part replaces 873930600. Price: $1.99 |
| 12 |
98-3865-01 |
BRACE-RIGHT, LOWER Price: $104.46 |
| 13 |
819131612 |
Washer 13/32 x 1 x 12 Ga. This part replaces 819131611. Price: $3.99 |
| 13 |
98-3864-01 |
BRACE-LEFT, LOWER Price: $107.85 |
| 14 |
3290-472 |
NUT-CLINCH Price: $5.04 |
| 14 |
532109228 |
Lever, Lock, Handle Price: $4.99 |
| 15 |
256-126 |
BUSHING Price: $9.36 |
| 15 |
532440884 |
HANDLE.ASM.TILLER.GREY. This part replaces 532127013. Price: $87.99 |
| 16 |
810040400 |
Washer, Lock 1/4 Price: $3.99 |
| 17 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 18 |
873271000 |
NUT This part replaces 873731000. Price: $2.99 |
| 19 |
532102162 |
Cable, Clutch Price: $14.99 |
| 20 |
532009484 |
Clip Price: $3.99 |
| 21 |
817021008 |
Screw Tap Hex #10-24unc X 1/2 This part replaces 532086777. Price: $1.99 |
| 22 |
532102604 |
Grip, Bar, Control Price: $3.99 |
| 23 |
532102744 |
Clamp, Bar, Control Price: $3.99 |
| 24 |
532105216 |
Bar Assembly, Control Price: $14.08 |
| 25 |
532175769 |
THROTTLE CONTROL This part replaces 532127012. Price: $22.99 |
| 26 |
872140404 |
Bolt, Carriage 1/4-20 UNC x 1/2 Price: $3.99 |
