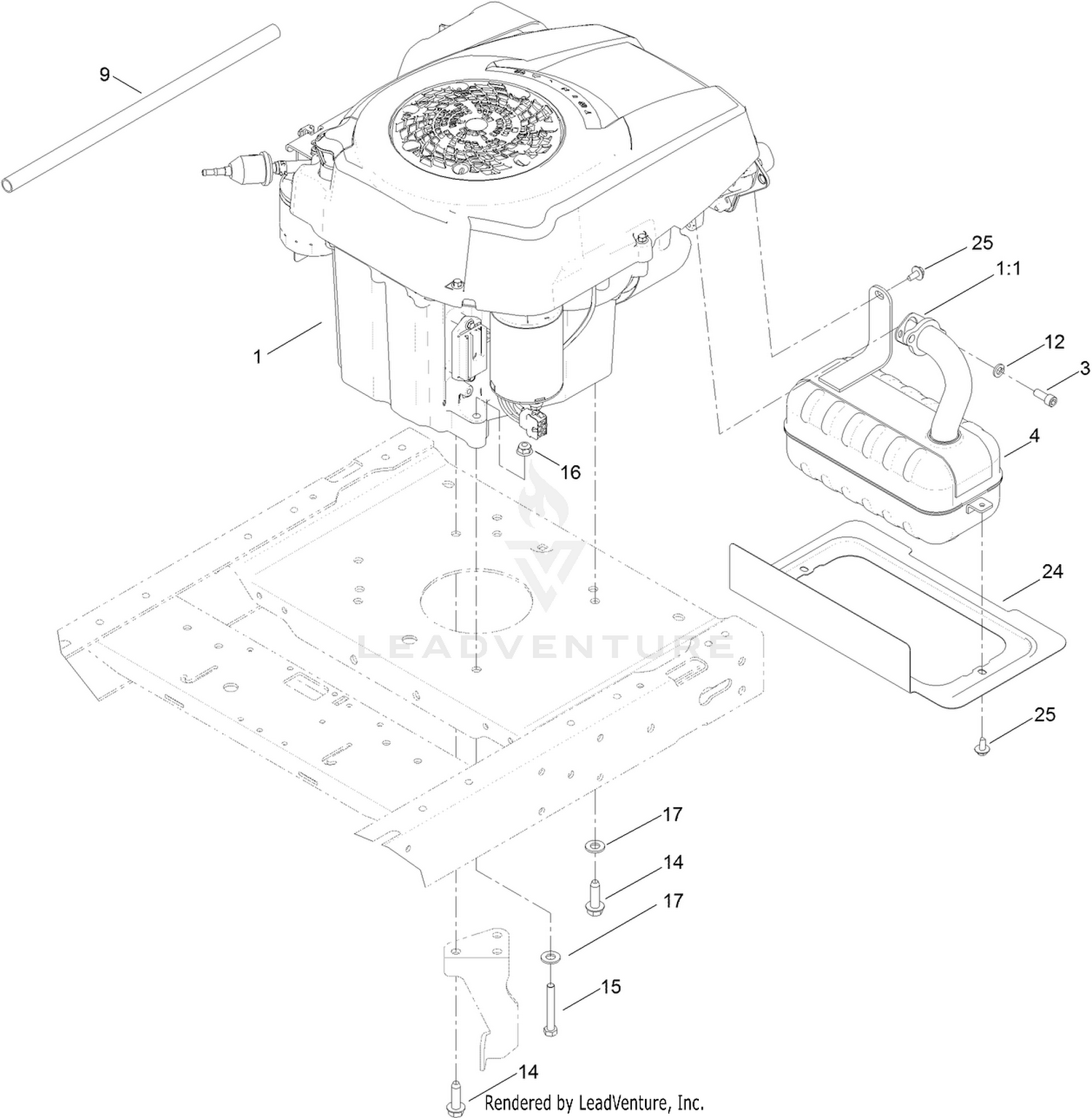

Engine and Muffler Assembly
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 3274-10 | SCREW-HSH Price: $0.47 |
| 4 | 117-7312 | MUFFLER-KOHLER Price: $167.35 |
| 9 | 106-7022 | TUBE-DRAIN, OIL Price: $8.99 |
| 12 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 14 | 32144-109 | SCREW-THD Price: $1.29 |
| 15 | 120-9738 | SCREW-HH This part replaces 322-11. Price: $0.84 |
| 16 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 17 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 24 | 121-2973-03 | SHIELD-HEAT Price: $21.75 |
