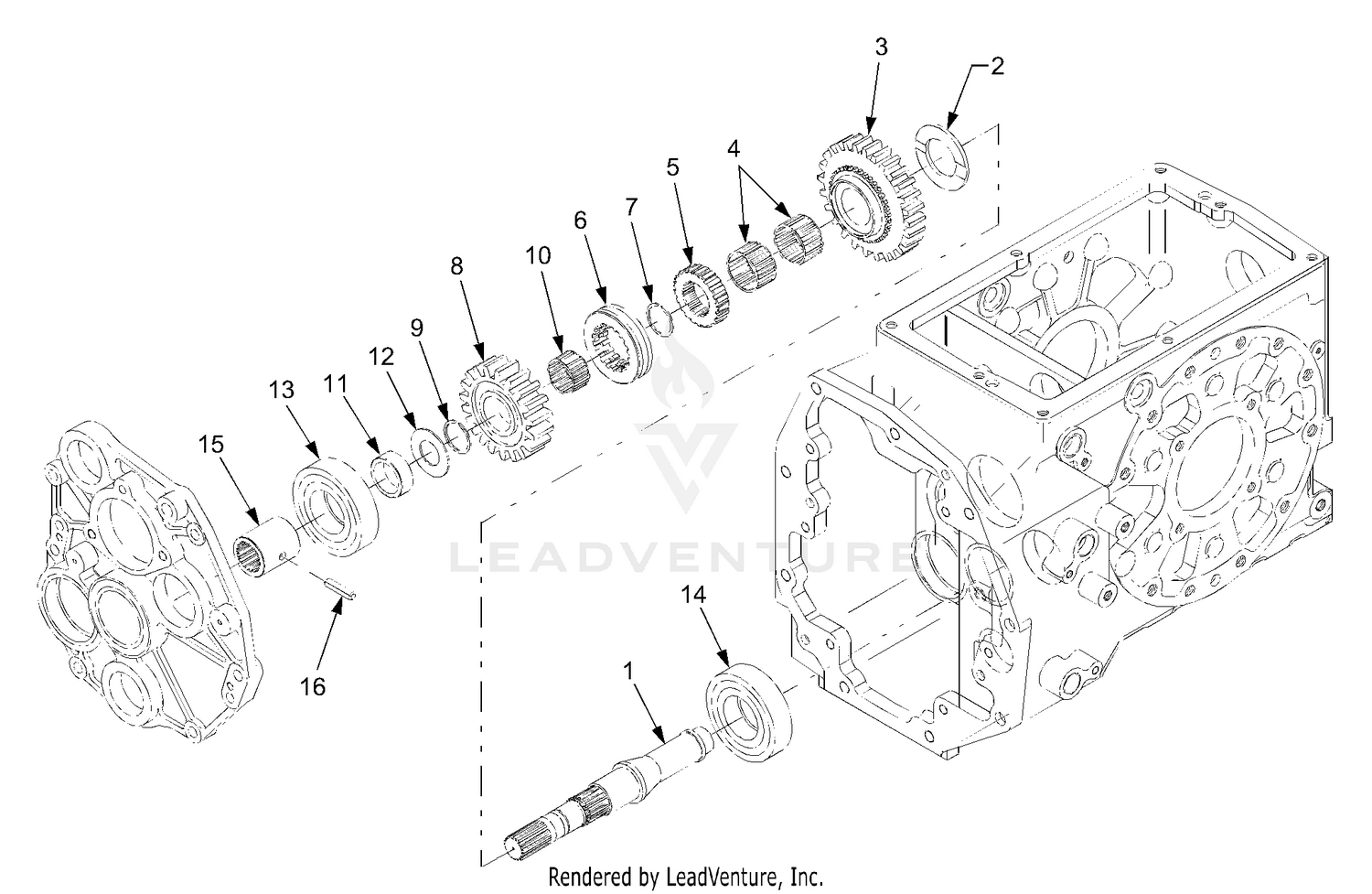

Range Shaft Group
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | DD-T2610-23611 | SHAFT-RANGE Not Available Price: |
| 2 | DD-T2610-23621 | THRUST WASHER Not Available Price: |
| 3 | DD-T2610-23632 | GEAR-32 T SPUR RAN Not Available Price: |
| 4 | DD-08823-23717 | NEEDLE BEARING Not Available Price: |
| 5 | DD-T2610-23761 | BOSS-SPLINE RANGE Not Available Price: |
| 6 | DD-T2610-23751 | COLLAR-SHIFTER RAN Not Available Price: |
| 7 | DD-T2610-14541 | SNAP RING Not Available Price: |
| 8 | DD-T2610-23652 | GEAR-18 T SPUR RAN Not Available Price: |
| 9 | DD-37150-21791 | SNAP RING Not Available Price: |
| 10 | 112-7018 | VALVE-INLET This part replaces 98-9494. Price: $41.87 |
| 10 | DD-08822-53020 | NEEDLE BEARING Not Available Price: |
| 11 | DD-T2610-23781 | BEARING SPACER RAN Not Available Price: |
| 12 | DD-37150-21761 | THRUST WASHER Not Available Price: |
| 13 | DD-08101-06305 | BALL BEARING Not Available Price: |
| 14 | DD-08101-06205 | BALL BEARING Not Available Price: |
| 15 | DD-37805-44521 | COUPLING Not Available Price: |
| 20 | 112-7019 | VALVE-EXHAUST This part replaces 98-9625. Price: $56.65 |
| 30 | 98-9626 | SPRING-VALVE Price: $10.57 |
| 40 | 107-9092 | RETAINER-SPRING Price: $2.58 |
| 50 | 117-7572 | COLLET-SPRING, VALVE This part replaces 98-9390. Price: $9.43 |
| 60 | 99-8385 | SEAL-STEM, VALVE Price: $7.29 |
| 70 | 98-9497 | CAP-VALVE Price: $8.36 |
| 80 | 105-3790 | R-ARM SHAFT ASM Price: $28.61 |
| 90 | 100-1762 | BOLT This part replaces 100-9265. Price: $1.68 |
| 100 | 98-9505 | BRACKET-ARM, ROCKER Price: $22.17 |
| 110 | 105-3758 | PIN-SPRING Price: $0.57 |
| 120 | 98-9507 | WASHER-SHAFT, ROCKER ARM Price: $0.85 |
| 130 | 3256-1 | WASHER-FLAT Price: $0.39 |
| 140 | 98-9504 | SPRING-ARM, ROCKER Price: $0.66 |
| 160 | 98-9501 | ROCKER ARM ASM Price: $28.78 |
| 170 | 98-9502 | SCREW-ADJUSTING Price: $2.78 |
| 180 | 98-9503 | NUT Price: $1.33 |
| 190 | 98-9506 | STUD Price: $5.98 |
| 200 | 98-9393 | NUT Price: $2.72 |
