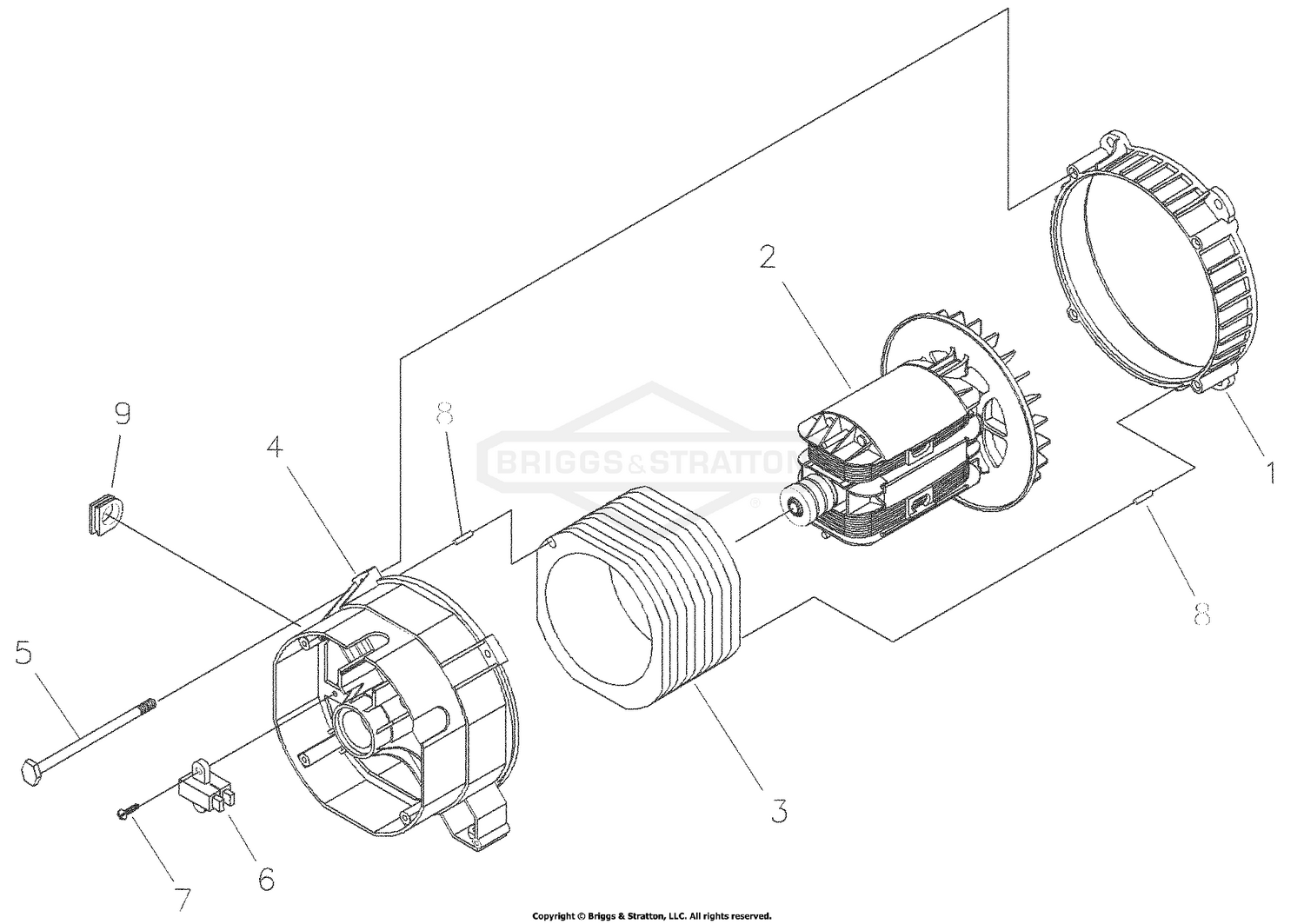

Alternator
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 209599GS | ADAPTER, Alternator This part replaces 186059GS. Price: $33.00 |
| 2 | 192164GS | ROTOR Price: $193.15 |
| 3 | 190488AGS | STATOR Price: $234.99 |
| 4 | 192215BGS | RBC, with O-Ring (p/n 189197GS) Price: $99.99 |
| 5 | 86308JGS | SCREW Price: $3.79 |
| 6 | 91825GS | ASSY, Holder, Rectifier/Brush Price: $48.14 |
| 7 | 49815GS | HHCS, M5-0.8 X 16 This part replaces 66849GS. Price: $2.96 |
| 8 | 81917GS | PIN, Roll Price: $2.79 |
