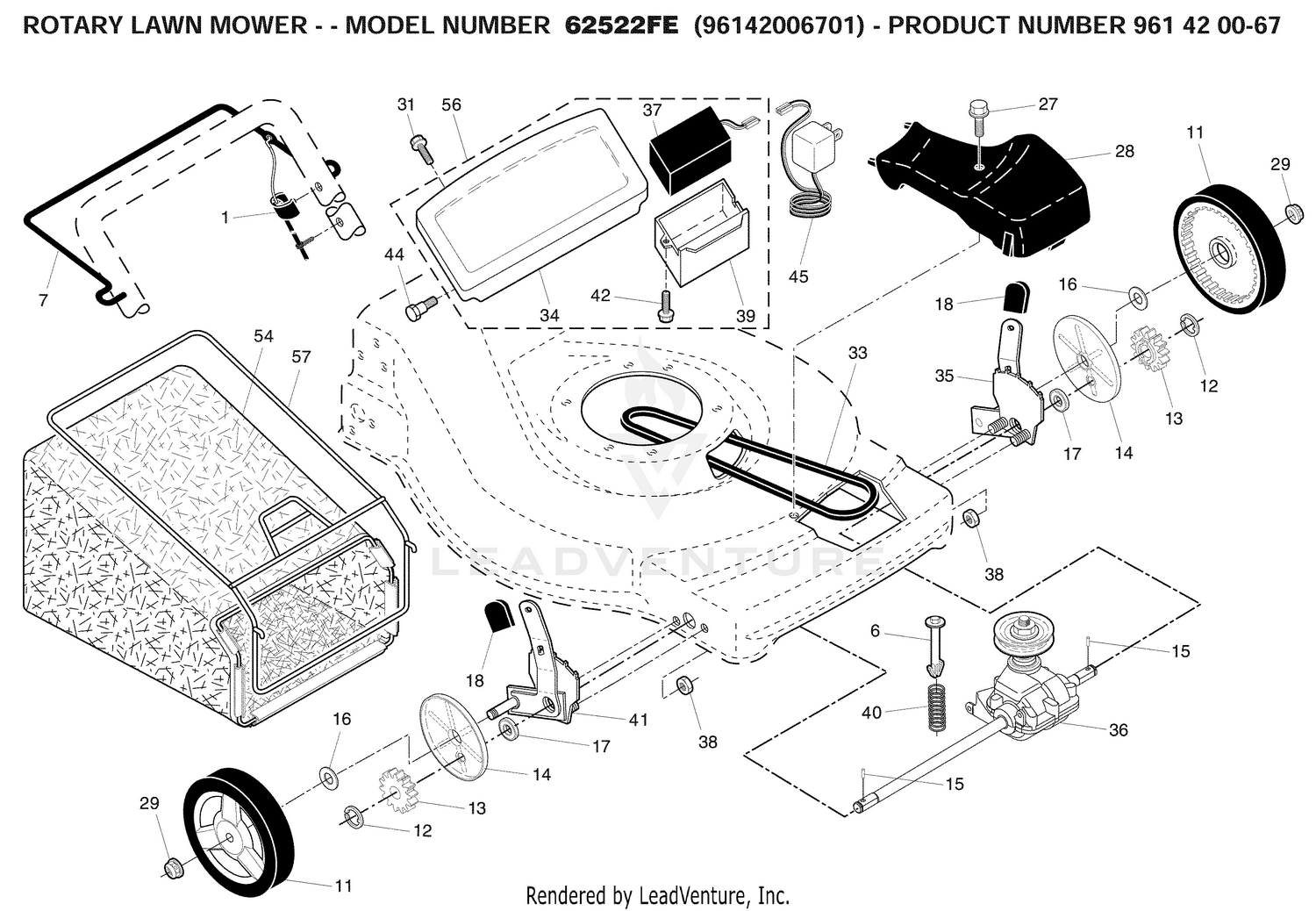

| Ref | Part Number | Description |
|---|
| 1 |
532194653 |
CONTROL.DRIVE.S/SPEED.FWGD Price: $22.99 |
| 1A |
31994 |
SHAFT & LEV Price: Call Us |
| 2 |
650506 |
SCREW This part replaces 630606. Price: $0.87 |
| 3 |
31995 |
SHUTTER Price: Call Us |
| 4A |
631499 |
SHAFT & LEV This part replaces 31996. Price: Call Us |
| 6 |
532150495 |
SPRING RETAINER Price: $3.99 |
| 6 |
650399 |
SCREW This part replaces 630605. Price: $1.20 |
| 7 |
27112 |
IDLE SCREW Price: $1.26 |
| 7 |
532199093 |
BAIL.CONT.DR.S/S.ROUND.ORG Price: $20.99 |
| 8 |
27114 |
SPRING Price: $2.62 |
| 8A |
27114 |
SPRING Price: $2.62 |
| 9 |
31503 |
SPRING Price: $1.23 |
| 10 |
30927 |
SHUTTER Price: Call Us |
| 11 |
27109 |
GASKET Price: $1.18 |
| 11 |
532401274 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 This part replaces 532411081. Price: $27.99 |
| 12 |
27108 |
GASKET Price: Call Us |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 13 |
32256A |
REPAIR KIT This part replaces 31998. Price: $45.70 |
| 13 |
532403849 |
PINION.14.TEETH.FGD Price: $5.99 |
| 14 |
27105 |
FLOAT Price: $20.00 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 15 |
27106 |
FLOAT SHAFT Price: $2.04 |
| 15 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 16 |
27136A |
DRAIN ASSY This part replaces 27136. Price: $5.96 |
| 16 |
532067725 |
WASHER FLUT Price: $5.99 |
| 17 |
29170 |
FLOAT BOWL This part replaces 630596. Price: Call Us |
| 17 |
587070202 |
BEARING.SUPPORT.ASM This part replaces 532191039. Price: $12.99 |
| 18 |
27136A |
DRAIN ASSY This part replaces 27137. Price: $5.96 |
| 18 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 19 |
27136A |
DRAIN ASSY This part replaces 27138. Price: $5.96 |
| 20 |
27110A |
GASKET This part replaces 27110. Price: $1.45 |
| 21 |
28945 |
POWER SCREW Price: $18.86 |
| 22 |
630786 |
SPRING Price: $1.25 |
| 23 |
29139 |
NOZZLE Price: Call Us |
| 24 |
27113 |
SPRING Price: $2.62 |
| 25 |
27554 |
GASKET Price: $1.05 |
| 26 |
27544 |
O RING Price: $1.26 |
| 27 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 27 |
650506 |
SCREW This part replaces 630606. Price: $0.87 |
| 28 |
532419195 |
COVER.DRIVE.TORUS.B&S.MOLDED Price: $10.99 |
| 29 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 30 |
32096 |
RET SPRING Price: $2.62 |
| 31 |
32076 |
SPRING Price: Call Us |
| 31 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 33 |
532157769 |
KIT.SERVICE.BELT/SPRING. This part replaces 532146527. Price: $14.99 |
| 34 |
532411190 |
PANEL.TRIM.21.FWGD.ES Price: $32.99 |
| 36 |
532415226 |
TRANSMISSION.22.FGD/W/PULLEY Price: $69.99 |
| 37 |
584353901 |
BATTERY.12V.22+RWGD.AGM This part replaces 532189589. Price: $84.99 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 39 |
532186237 |
BOX.BATTERY.TRIM Price: $5.99 |
| 40 |
532137090 |
SPRING.EXTENSION Price: $4.99 |
| 42 |
817411308 |
SCREW.HWH.13-16X.50 Price: $2.99 |
| 44 |
532175551 |
SCREW.SHOULDER.HH.10X.281X.6 Price: $2.99 |
| 45 |
597186301 |
Chargers This part replaces 532190097. Price: $32.99 |
| 54 |
532425669 |
GBAG.83230247T.SIL.HUSQ.BLU Price: $69.99 |
| 56 |
532191252 |
PANEL.ASM.TRIM/BATTERY.BOX Price: $64.99 |
