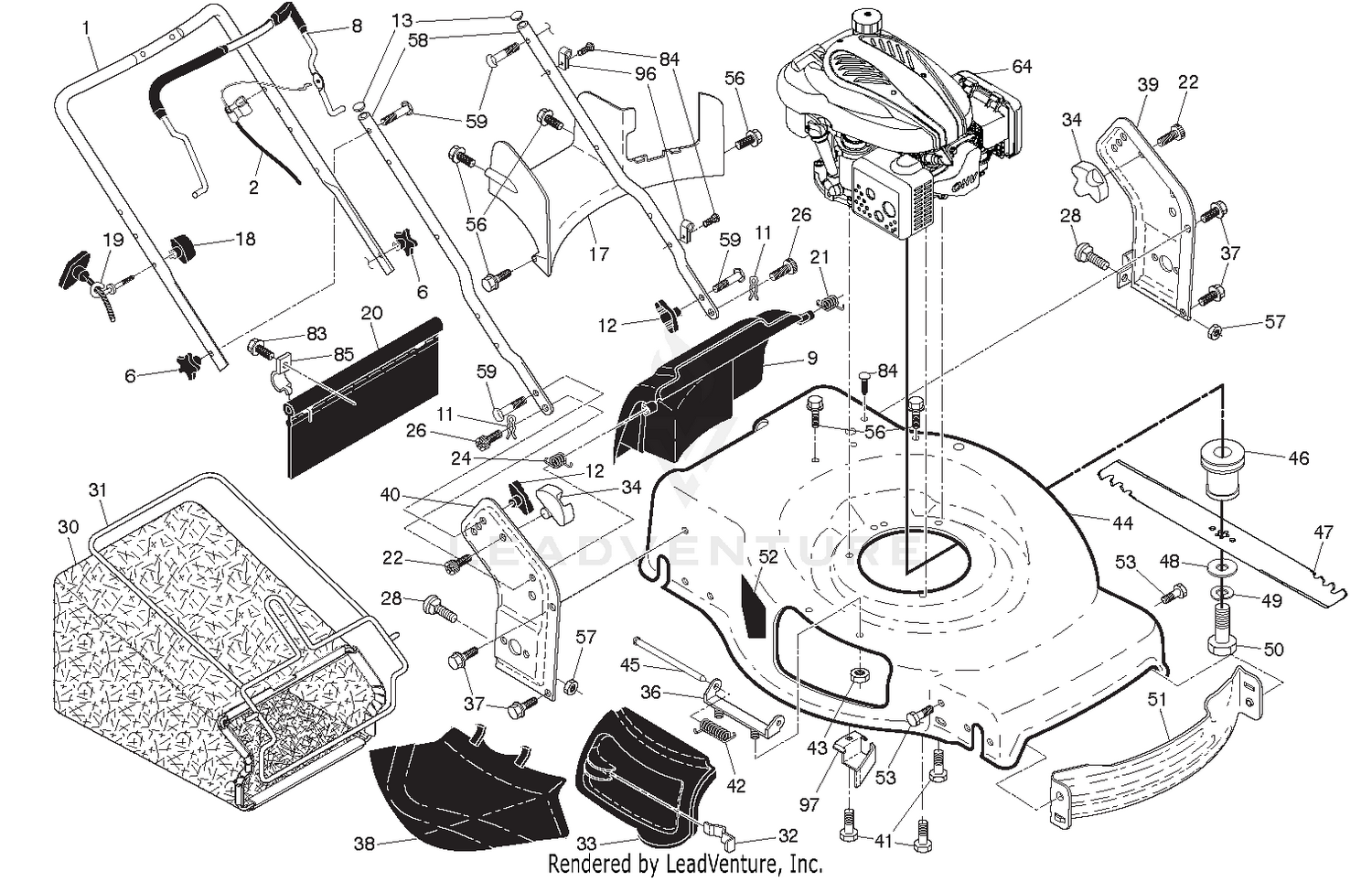

| Ref | Part Number | Description |
|---|
| 1 |
21549083 |
UPPER HANDLE ASSEMBLY Price: $32.95 |
| 2 |
21549084 |
CABLE, ENGINE ZONE CONTROL Price: $41.95 |
| 6 |
21546880 |
Handle Knob Price: $9.95 |
| 8 |
21549056 |
CONTROL BAR Price: $16.90 |
| 9 |
21549149 |
REAR DOOR ASSEMBLY Price: $32.95 |
| 11 |
21548435 |
HAIRPIN, DOOR/HANDLE PIVOT Price: $7.95 |
| 12 |
21547509 |
Handle Knob This part replaces 21549087. Price: $4.45 |
| 13 |
21548442 |
PLUG, HANDLE BAR Price: $4.95 |
| 17 |
21549088 |
REAR BAFFLE Price: $40.95 |
| 18 |
21548821 |
T-KNOB Price: $7.95 |
| 19 |
21548820 |
ROPE GUIDE Price: $10.45 |
| 20 |
21549089 |
REAR SKIRT Price: $15.95 |
| 21 |
21548426 |
SPRING, REAR DOOR, LH, BLACK Price: $5.95 |
| 22 |
21548412 |
SCREW, PANHEAD, TORX #20 Price: $4.95 |
| 24 |
21548425 |
SPRING, REAR DOOR, RH, GREY Price: $5.95 |
| 26 |
21548424 |
SCREW, REAR DOOR/HANDLE PIVOT Price: $4.35 |
| 28 |
21548837 |
BOLT, CARRIAGE Price: $3.45 |
| 30 |
21549085 |
GRASSBAG Price: $84.95 |
| 31 |
21548845 |
FRAME, GRASSBAG Price: $21.95 |
| 33 |
21548441 |
MULCHER DOOR This part replaces 21549156. Price: $12.95 |
| 34 |
21549091 |
BRACKET, GRASSBAG Price: $4.80 |
| 36 |
21549159 |
HING, BRACKET ASSEMBLY Price: $9.95 |
| 37 |
21546179 |
BOLT.5/16-18HEX.WHS.HD.LCKSERR Price: $8.95 |
| 38 |
21548458 |
DISCHARGE DEFLECTOR Price: $20.45 |
| 39 |
21548840 |
HANDLE BRACKET, LH Price: $26.40 |
| 40 |
21548841 |
HANDLE BRACKET, RH Price: $22.95 |
| 41 |
21546874 |
Screw, Hex Head, Threaded, Rol Price: $6.45 |
| 42 |
21547483 |
Spring, Torsion Price: $6.45 |
| 43 |
06500821 |
NUT-LK-CTR-FLG .25-20 ZC120 This part replaces 21548415. Price: $0.45 |
| 44 |
21549092 |
KIT, LAWN MOWER HOUSING Price: $99.95 |
| 45 |
21547479 |
Rod, Hinge Price: $5.95 |
| 46 |
21549155 |
BLADE ADAPTOR Price: $20.45 |
| 47 |
21547435 |
BLADE Price: $28.95 |
| 48 |
21546910 |
Hardened Washer Price: $5.95 |
| 49 |
06300116 |
WSHR,LK-REG .375X.094 ZCC This part replaces 21546909. Price: $0.95 |
| 50 |
21546911 |
Screw, Hex Head, Grade 8 3/8-2 Price: $7.45 |
| 51 |
21548438 |
FRONT BAFFLE Price: $16.95 |
| 52 |
21549070 |
DECAL, WARNING Price: $8.45 |
| 53 |
21546179 |
BOLT.5/16-18HEX.WHS.HD.LCKSERR Price: $8.95 |
| 56 |
21546912 |
Screw, Rear Baffle Price: $5.95 |
| 57 |
21548413 |
NUT, HEX Price: $6.00 |
| 58 |
21549127 |
BAR, LOWER HANDLE Price: $8.40 |
| 59 |
21546883 |
Handle Bolt Price: $3.95 |
| 64 |
21549141 |
ENGINE,LNCN T322002896-2131008 Price: $319.95 |
| 83 |
21548444 |
SCREW Price: $3.45 |
| 84 |
21548436 |
FASTENER, PUSH Price: $3.95 |
| 85 |
21549094 |
MOUNTING BRACKET, REAR SKIRT Price: $5.95 |
| 96 |
21546887 |
Clip, Cable Price: $4.95 |
