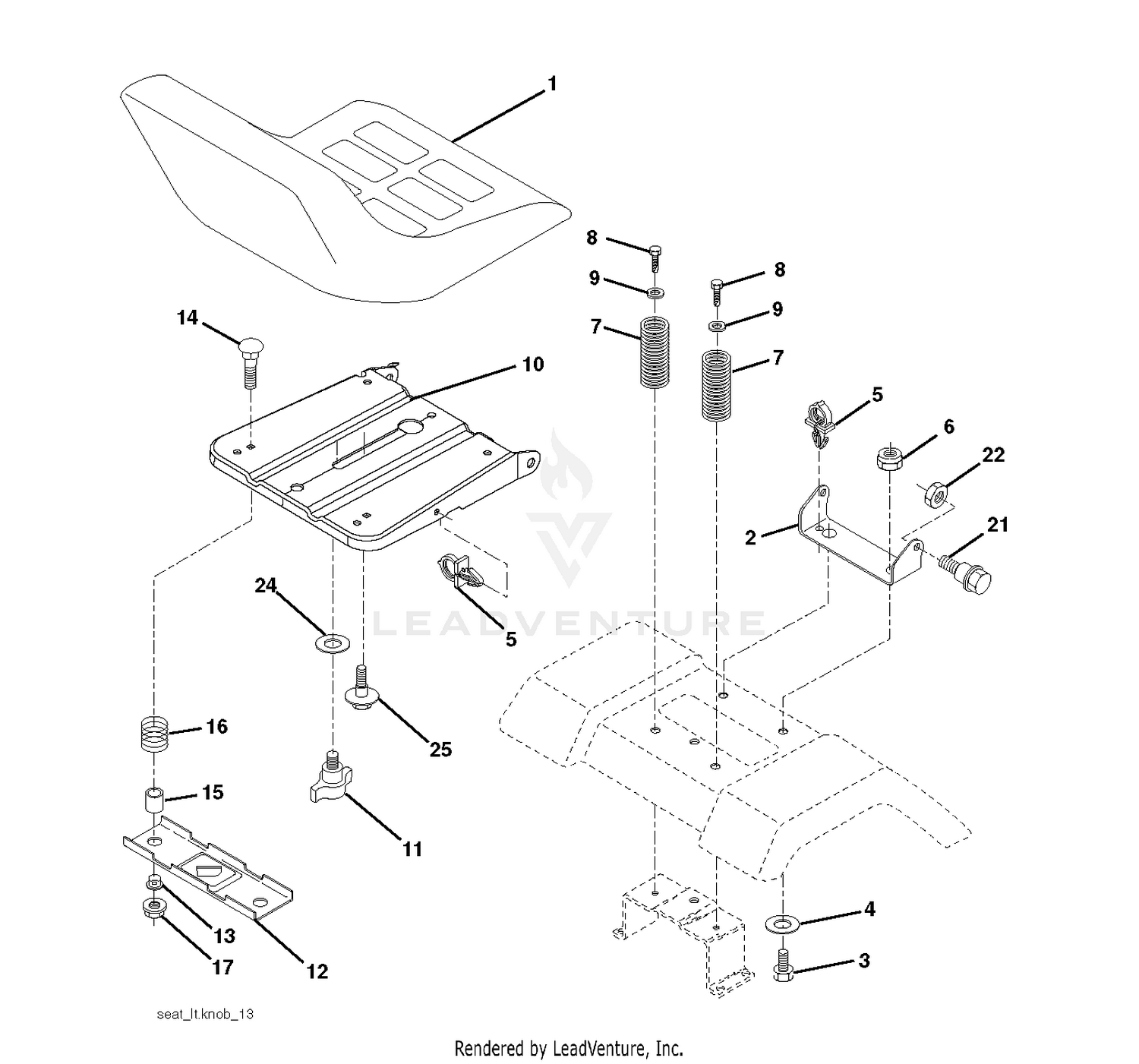

| Ref | Part Number | Description |
|---|
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532188713. Price: $142.99 |
| 1 |
99-8390 |
PIPE-LOCK, FUEL ADJ. Price: $22.33 |
| 2 |
532140551 |
SEAT PIVOT BRKT Price: $3.99 |
| 2 |
99-8387 |
NUT-CAP Price: $2.74 |
| 3 |
871110616 |
Bolt Fin Hex 3/8-16 unc x 1 Price: $2.99 |
| 3 |
98-9678 |
IDLE APPARATUS ASM Price: $43.48 |
| 4 |
107-9081 |
GASKET This part replaces 99-8389. Price: $3.94 |
| 4 |
819131610 |
WASHER PM Price: $3.99 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 6 |
99-8386 |
NUT Price: $0.62 |
| 7 |
539110300 |
SRPING.SEAT This part replaces 532124181. Price: $2.99 |
| 7 |
98-7654 |
GASKET This part replaces 99-8388. Price: $8.84 |
| 8 |
112-7015 |
BOLT-ADJUSTING This part replaces 98-9557. Price: $6.24 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 9 |
819131612 |
Washer 13/32 x 1 x 12 Ga. This part replaces 819131614. Price: $3.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT Price: $14.99 |
| 10 |
98-9674 |
GASKET PUMP COVER NA Price: $8.42 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $4.99 |
| 11 |
98-7645 |
BOLT Price: $1.21 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT Price: $4.99 |
| 12 |
98-9359 |
BOLT Price: $0.76 |
| 13 |
112-7016 |
COVER-PUMP This part replaces 98-9640. Price: $24.52 |
| 13 |
532121248 |
BUSHING Price: $3.99 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $3.99 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 17 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 532123976. Price: $2.69 |
| 21 |
532171852 |
BOLT.SHOULDER.5/16-18 Price: $3.99 |
| 22 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.69 |
| 24 |
819171912 |
WASHER Price: $3.99 |
