| Ref | Part Number | Description |
|---|
| QC12YC |
531300889 |
PLUG-SPARK,BCPR5ES (NGK),SOLID This part replaces 531029504. Price: $5.99 |
| 1 |
108-0638 |
BOTTLE-OVERFLOW Price: $33.20 |
| 2 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 3 |
109-0309 |
HOSE-FUEL Price: $18.99 |
| 4 |
106-1126 |
HOSE-FUEL Price: $10.06 |
| 5 |
62-5480 |
ISOLATER-SEAT Price: $33.99 |
| 6 |
138-6160 |
RADIATOR This part replaces 106-5291. Price: $2,209.91 |
| 8 |
106-5180-03 |
SHROUD-RADIATOR Price: $244.19 |
| 9 |
106-5185 |
BRACE-RADIATOR Price: $15.47 |
| 10 |
2412-150 |
CLIP-J Price: $1.63 |
| 11 |
240-3 |
GROMMET-RUBBER Price: $17.44 |
| 12 |
32128-20 |
NUT-HF Price: $0.99 |
| 13 |
98-4695 |
SPACER Price: $4.74 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 16 |
322-3 |
SCREW-HH Price: $0.79 |
| 17 |
322-1 |
SCREW-HH Price: $0.22 |
| 18 |
107-8675 |
SEAL-FOAM Price: $2.44 |
| 19 |
107-8676 |
SEAL-FOAM Price: $1.96 |
| 20 |
107-8677 |
SEAL-FOAM Price: $0.73 |
| 21 |
107-8678 |
SEAL-FOAM Price: $0.78 |
| 22 |
3256-56 |
WASHER-FLAT Price: $1.15 |
| 23 |
3269-18 |
RIVET-BLIND Price: $1.15 |
| 24 |
119-4992 |
HOSE-RADIATOR Price: $26.84 |
| 25 |
106-5239 |
HOSE-RADIATOR, UPPER Price: $95.32 |
| 26 |
2412-111 |
CLAMP Price: $4.39 |
| 27 |
136-2315 |
BAFFLE-HEAT Price: $3.54 |
| 28 |
119-5037 |
BAFFLE-HEAT, RH Price: $6.70 |
| 29 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 30 |
119-9393 |
SHIELD-FRONT HEAT, ENGINE Price: $308.59 |
| 31 |
3256-82 |
WASHER-FLAT Price: $0.47 |
| 32 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 33 |
94-7007 |
COOLER-OIL Price: $1,430.00 |
| 34 |
125-5880 |
HOSE-COOLER, OIL Price: $46.55 |
| 35 |
112-7835 |
FTG-STR,SPCL Price: $65.32 |
| 36 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 37 |
130-7102-0P |
BRACKET-RESERVOIR This part replaces 130-7102-03. Price: $15.79 |
| 38 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 39 |
106-5290 |
SHROUD-FAN Price: $153.70 |
| 40 |
120-0627 |
DECAL-WARNING Price: $5.94 |
| 41 |
106-6755 |
DECAL-CAP, RADIATOR Price: $18.49 |
| 42 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 43 |
136-2316 |
BAFFLE-FOAM Price: $3.97 |
| 44 |
3234-29 |
SCREW-HHF Price: $1.84 |

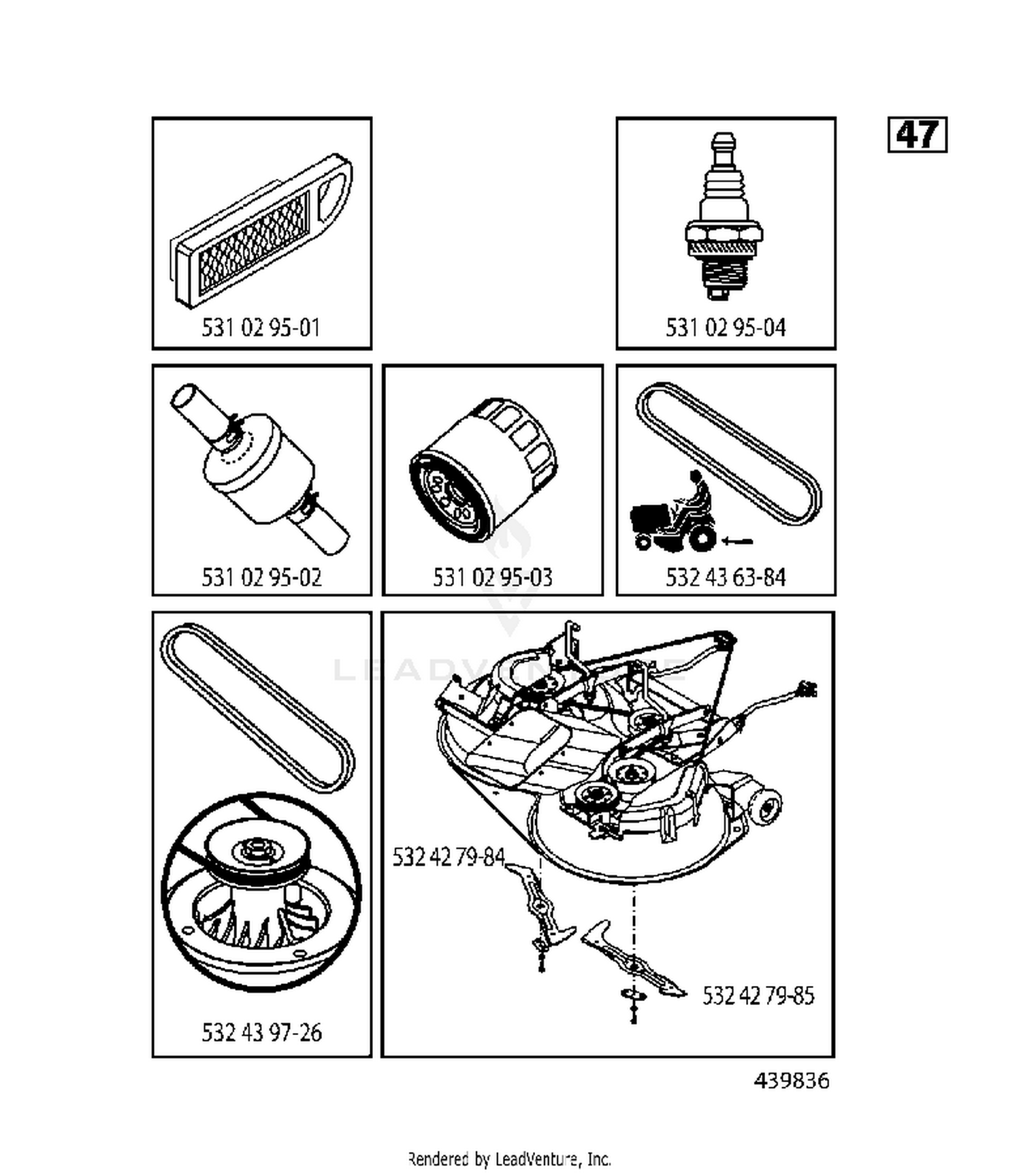

| 531029501 |
531029501 |
AIR FILTER Price: $37.99 |
| 531029503 |
531029503 |
Price: Call Us |
| 532427984 |
532427984 |
BLADE.3N1.LH.CRD.97 Price: $49.99 |
| 532427985 |
532427985 |
BLADE.3N1.RH.CRD.97 Price: $49.99 |
| 532436384 |
583508901 |
V-BELT.TEX.CRD.GEAR This part replaces 532436384. Price: $64.99 |
| 532439726 |
583544901 |
RP BELT.DRIVE.MWR.MECHN.97CRD This part replaces 532439726. Price: $84.99 |
