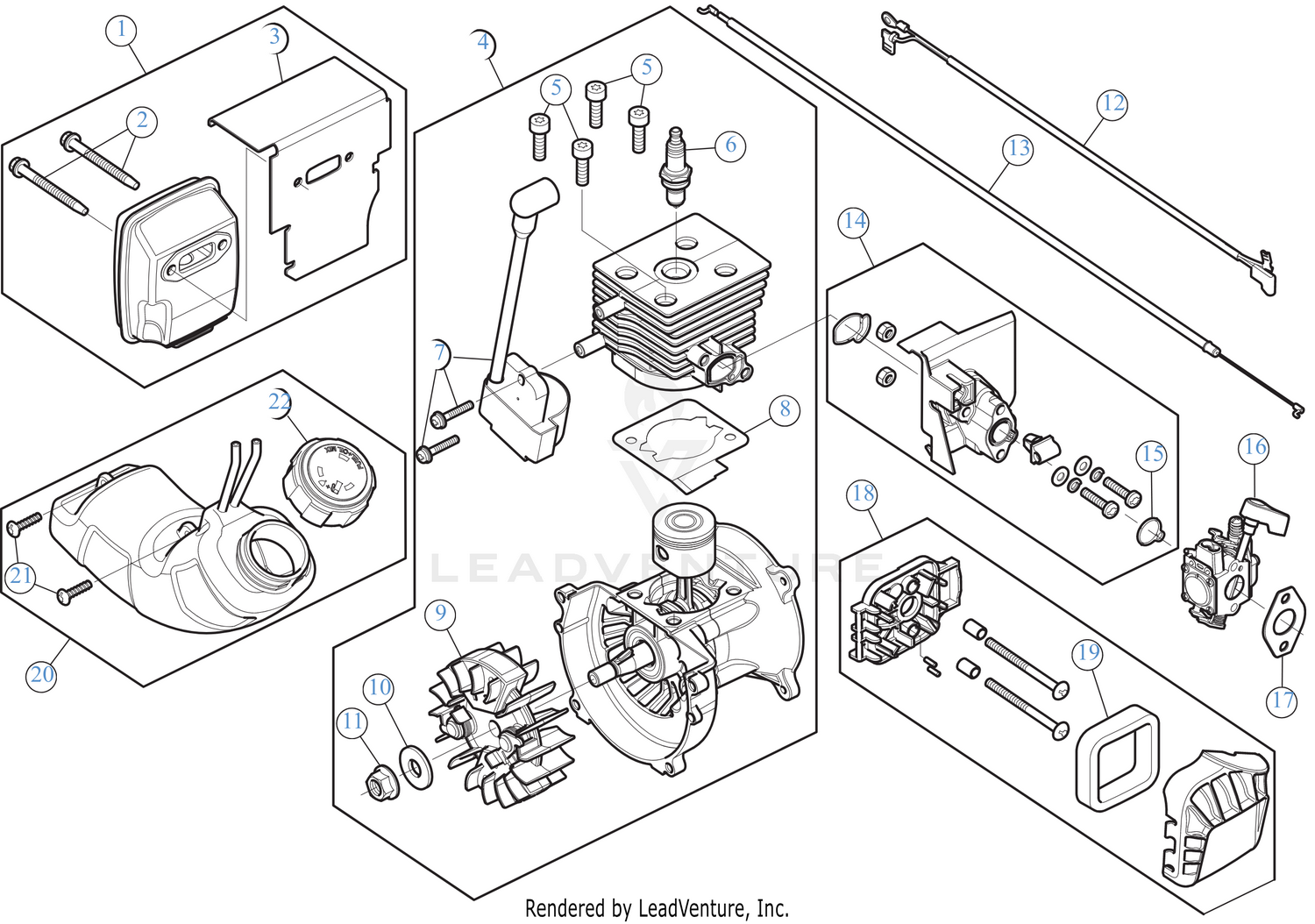

Engine Assembly
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 753-06294 | MUFFLER SCREW Price: $2.52 |
| 3 | 753-05946 | MUFFLER GASKET Price: $8.69 |
| 5 | 710-04715 | SCREW 1/4 x 20 x .8125 Price: $6.01 |
| 6 | 753-06847 | SPARK PLUG Price: $6.35 |
| 7 | 753-08516 | MODULE ASSEMBLY Price: $16.01 |
| 8 | 753-06827 | GASKET CYL Price: $2.87 |
| 9 | 753-06175 | FLYWHEEL ASSEMBLY Price: $16.80 |
| 10 | 736-04107 | WASHER .406X1.0X.095 Price: $3.86 |
| 11 | 712-04137 | NUT 3/8-24 Price: $6.07 |
| 12 | 753-05949 | LEAD WIRE Price: $4.99 |
| 13 | 753-06690 | THROTTLE CABLE Price: $6.87 |
| 15 | 753-06185 | O-RING Price: $2.93 |
| 17 | 753-06253 | GASKET CARB Price: $2.98 |
| 19 | 791-181757 | AIR FILTER Price: $3.59 |
| 21 | 710-04194 | SCREW 8-16 x 3/4 Price: $3.66 |
