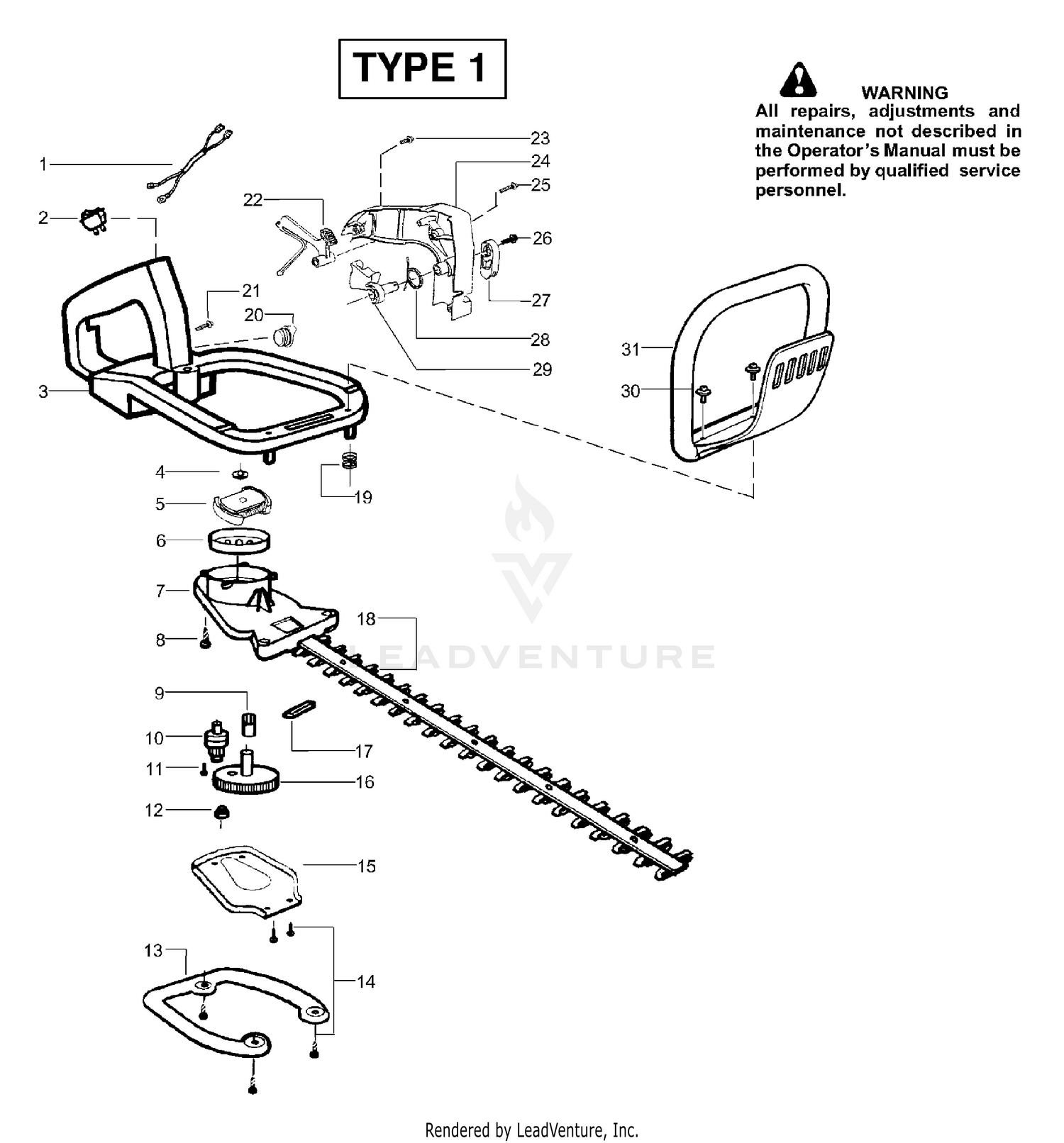

| Ref | Part Number | Description |
|---|
| 1 |
322-3 |
SCREW-HH Price: $0.79 |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
530029954 |
Switch-Ignition Price: $4.99 |
| 3 |
3211-5 |
SCREW-HH Price: $0.88 |
| 3 |
530071655 |
HANDLE This part replaces 530055763. Price: $24.99 |
| 4 |
530015828 |
Washer-Clutch Price: $1.99 |
| 5 |
530014396 |
Kit-Clutch Assy. Price: $14.99 |
| 6 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 6 |
530056069 |
Assy-Drum Price: $24.99 |
| 7 |
25-8310 |
DISCONTINUED Price: Call Us |
| 8 |
25-8340 |
V-BELT Price: $43.46 |
| 8 |
530015886 |
Screw Price: $1.99 |
| 9 |
25-7640 |
DISCONTINUED Price: Call Us |
| 9 |
530016013 |
Bearing-Gear Price: $2.99 |
| 10 |
530036228 |
Assy-Pinion Price: $19.99 |
| 11 |
530015805 |
Screw Price: $1.99 |
| 12 |
530032121 |
Bushing-Blade Price: $2.99 |
| 13 |
530036046 |
Plate-Isolator Price: $4.99 |
| 14 |
2412-31 |
CLAMP-BODEN Price: $1.56 |
| 14 |
530015934 |
Screw Price: $1.99 |
| 15 |
321-4 |
SCREW-HH Price: $0.99 |
| 15 |
530029916 |
Cover-Gear Box Plate Price: $2.99 |
| 16 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 17 |
3217-5 |
NUT-HEX Price: $0.25 |
| 17 |
530029948 |
Seal-Blade (Felt) Price: $1.99 |
| 18 |
530403229 |
Assy-Blade 22" Price: $34.99 |
| 19 |
21-5800 |
DISCONTINUED Price: Call Us |
| 19 |
530029946 |
Spring Price: $1.99 |
| 20 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
577858601 |
FUEL CAP ASSY W/RET LW PRM This part replaces 530036965. Price: $3.99 |
| 21 |
2412-41 |
CLAMP-R Price: $4.82 |
| 21 |
530015770 |
Screw Price: Call Us |
| 22 |
21-0340 |
DISCONTINUED Price: Call Us |
| 22 |
530053900 |
Lockout-Throttle Price: $1.99 |
| 23 |
530015934 |
Screw Price: $1.99 |
| 23 |
93-5398 |
SCREW-HH This part replaces 21-0330. Price: $3.22 |
| 24 |
32103-12 |
NUT-WING Price: $1.15 |
| 24 |
530038305 |
Cover-Handle Price: $2.99 |
| 25 |
21-2220 |
DISCONTINUED Price: Call Us |
| 25 |
530015940 |
Screw Price: $1.99 |
| 26 |
21-2240 |
DISCONTINUED Price: Call Us |
| 26 |
530015775 |
Screw Price: $1.99 |
| 27 |
25-9280 |
DISCONTINUED Price: Call Us |
| 27 |
530029958 |
Lever-Trigger Price: $1.99 |
| 28 |
38-7430 |
DISCONTINUED This part replaces 3290-386. Price: Call Us |
| 28 |
530036123 |
Spring-Trigger Price: $1.99 |
| 29 |
321-14 |
SCREW-HH Price: $0.55 |
| 29 |
530053884 |
Trigger Price: $1.99 |
| 30 |
3253-12 |
WASHER-LOCK/SP Price: $0.25 |
| 30 |
530015955 |
Screw Price: $1.99 |
| 31 |
21-5640 |
JOINT-BALL Price: $27.80 |
| 32 |
21-5620 |
DISCONTINUED Price: Call Us |
| 33 |
108-3831 |
FILTER-FUEL This part replaces 18-1520. Price: $10.09 |
| 34 |
2412-6 |
CLAMP-HOSE Price: $4.57 |
| 35 |
110-0047 |
HOSE-FUEL This part replaces 18-2400. Price: $12.42 |
| 36 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 37 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 38 |
3217-7 |
NUT-HEX Price: $0.28 |
| 39 |
3247-4 |
SCREW-SET Price: $0.54 |
| 40 |
95-1823 |
WASHER This part replaces 3-3391. Price: $29.18 |
| 41 |
21-2300 |
ENGINE MOUNT Price: $195.59 |
| 42 |
21-0130 |
RUBBER MOUNT Price: $69.69 |
| 43 |
323-11 |
SCREW-HH Price: $1.08 |
| 44 |
322-6 |
SCREW-HH Price: $0.45 |
| 45 |
21-0350 |
DISCONTINUED Price: Call Us |
| 46 |
21-2310 |
ENG MT BRKT *B Price: $63.43 |
| 47 |
3217-6 |
NUT-HEX Price: $1.19 |
| 48 |
23-1850 |
MUFFLER Price: $413.71 |
| 49 |
32128-19 |
NUT-HF Price: $0.99 |
| 50 |
323-6 |
SCREW-HH Price: $0.66 |
| 51 |
23-1570 |
DISCONTINUED Price: Call Us |
| 52 |
32120-69 |
RING-SNAP Price: $2.78 |
| 53 |
23-1640 |
BUSHING-TAPERLOCK Price: $68.50 |
| 54 |
23-1630 |
DISCONTINUED Price: Call Us |
| 55 |
23-1620 |
DISCONTINUED Price: Call Us |
| 56 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 57 |
23-1650 |
DISCONTINUED Price: Call Us |
| 58 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 59 |
21-0360 |
NUT-HEX Price: $1.76 |
| 60 |
21-0370 |
DISCONTINUED Price: Call Us |
| 61 |
21-1820 |
STUD-RETAINER, BELT Price: $36.84 |
| 62 |
251-252 |
BEARING This part replaces 251-261. Price: $98.35 |
| 63 |
32120-22 |
RING-SNAP, INTERNAL Price: $2.29 |
| 64 |
21-2260 |
DISCONTINUED Price: Call Us |
| 65 |
21-0050 |
Engine Price: Call Us |
| 66 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 67 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 68 |
32128-17 |
NUT-LOCK, FLANGE Price: $0.25 |
| 69 |
3290-134 |
SCREW Price: $0.27 |
| 70 |
21-2320 |
DISCONTINUED Price: Call Us |
| 71 |
24-2560 |
DISCONTINUED Price: Call Us |
| 72 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 73 |
24-2490 |
SPACER Price: $5.18 |
| 74 |
21-5920 |
DISCONTINUED Price: Call Us |
| 75 |
25-8320 |
DISCONTINUED Price: Call Us |
| 76 |
12-3270 |
SCREW Price: $3.09 |
| 77 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 78 |
27-0370 |
DISCONTINUED Price: Call Us |
| 79 |
26-6660 |
V-BELT Price: $59.07 |
| 80 |
26-6690 |
TEMP GAGE ADAPTER Price: $52.91 |
| 81 |
26-9140 |
DISCONTINUED This part replaces 26-5650. Price: Call Us |
| 82 |
27-9700 |
DISCONTINUED This part replaces 27-0390. Price: Call Us |
| 83 |
27-0400 |
DISCONTINUED Price: Call Us |
