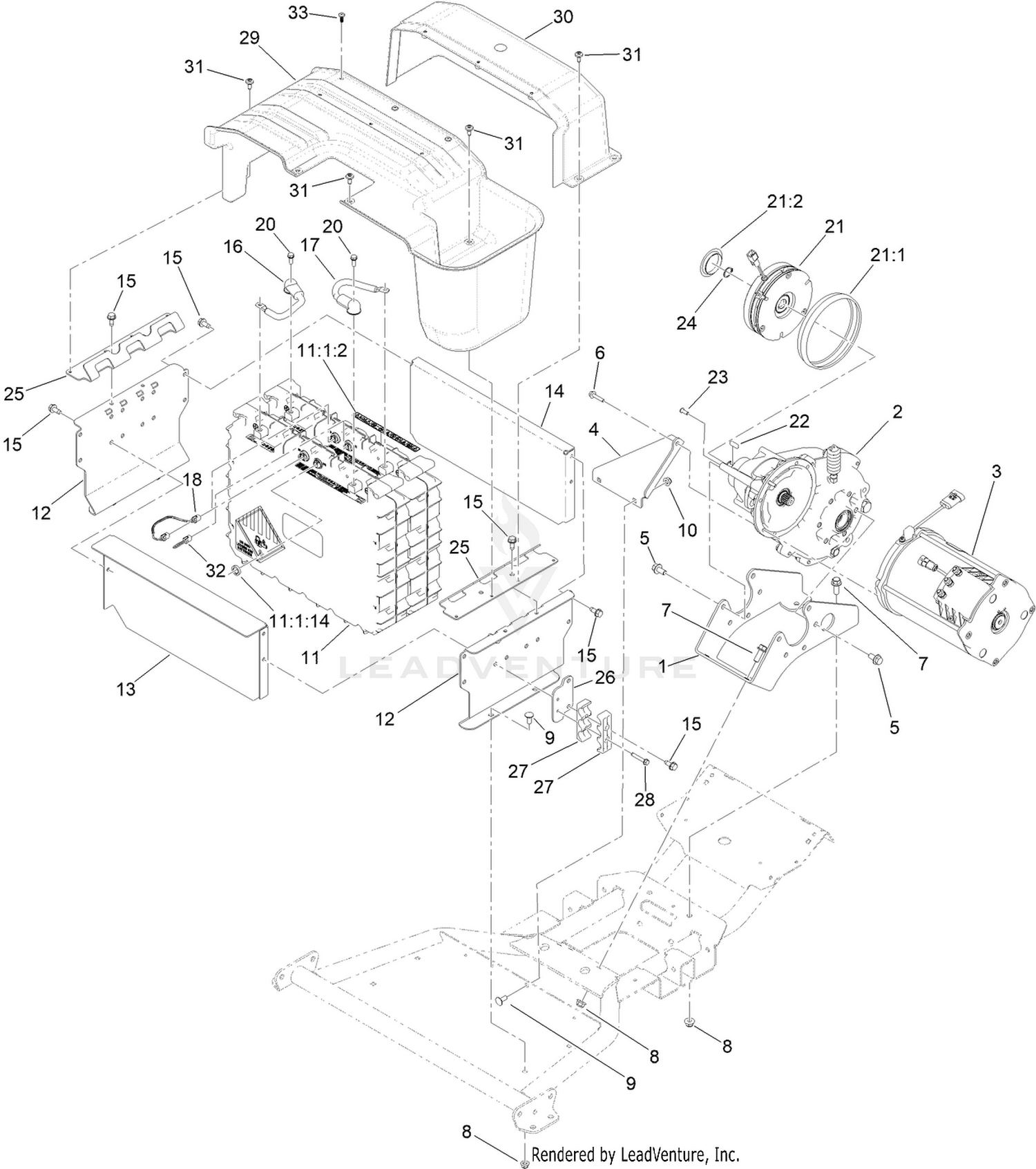

| Ref | Part Number | Description |
|---|
| 1 |
140-9822-03 |
BRACKET-MOUNT, TRANS Price: $62.76 |
| 2 |
145-7060 |
TRANSAXLE-ELECTRIC Price: $1,095.54 |
| 3 |
137-6936 |
MOTOR-AC Price: $1,535.40 |
| 4 |
140-9797-03 |
BRACE-MOTOR Price: $20.00 |
| 5 |
139-6300 |
SCREW-HFL Price: $1.82 |
| 6 |
33103-030 |
SCREW-HHF Price: $0.75 |
| 7 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 8 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 9 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 10 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 11 |
145-5320 |
BATTERY ASM Price: $1,899.99 |
| 15 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 16 |
145-7275 |
CABLE-BATTERY, RD ASM Price: $26.90 |
| 17 |
145-7276 |
CABLE-BATTERY, BK ASM Price: $26.90 |
| 18 |
140-9565 |
HARNESS-WIRE, DATA INTERFACE Price: $47.99 |
| 20 |
145-5783 |
SCREW-SEMS Price: $0.99 |
| 21 |
145-7061 |
BRAKE-ELECTRIC Price: $349.29 |
| 22 |
145-7163 |
KEY-SQUARE Price: $1.22 |
| 23 |
145-7164 |
SCREW-HSBH Price: $4.14 |
| 24 |
32120-15 |
RING-SNAP, EXT Price: $1.20 |
| 26 |
145-7175 |
BRACKET-CLAMP, CABLE Price: $7.67 |
| 27 |
145-7166 |
CLAMP-CABLE Price: $5.22 |
| 28 |
94-2691 |
SCREW-HWH Price: $1.02 |
| 29 |
145-7178 |
COVER-FRONT, BATTERY Price: $77.30 |
| 30 |
145-7177 |
COVER-REAR, BATTERY Price: $40.47 |
| 31 |
120-7950 |
SCREW-SHOULDER Price: $1.79 |
| 32 |
122-2323 |
HARNESS-WIRE, CAN TERMINATOR Price: $27.99 |
