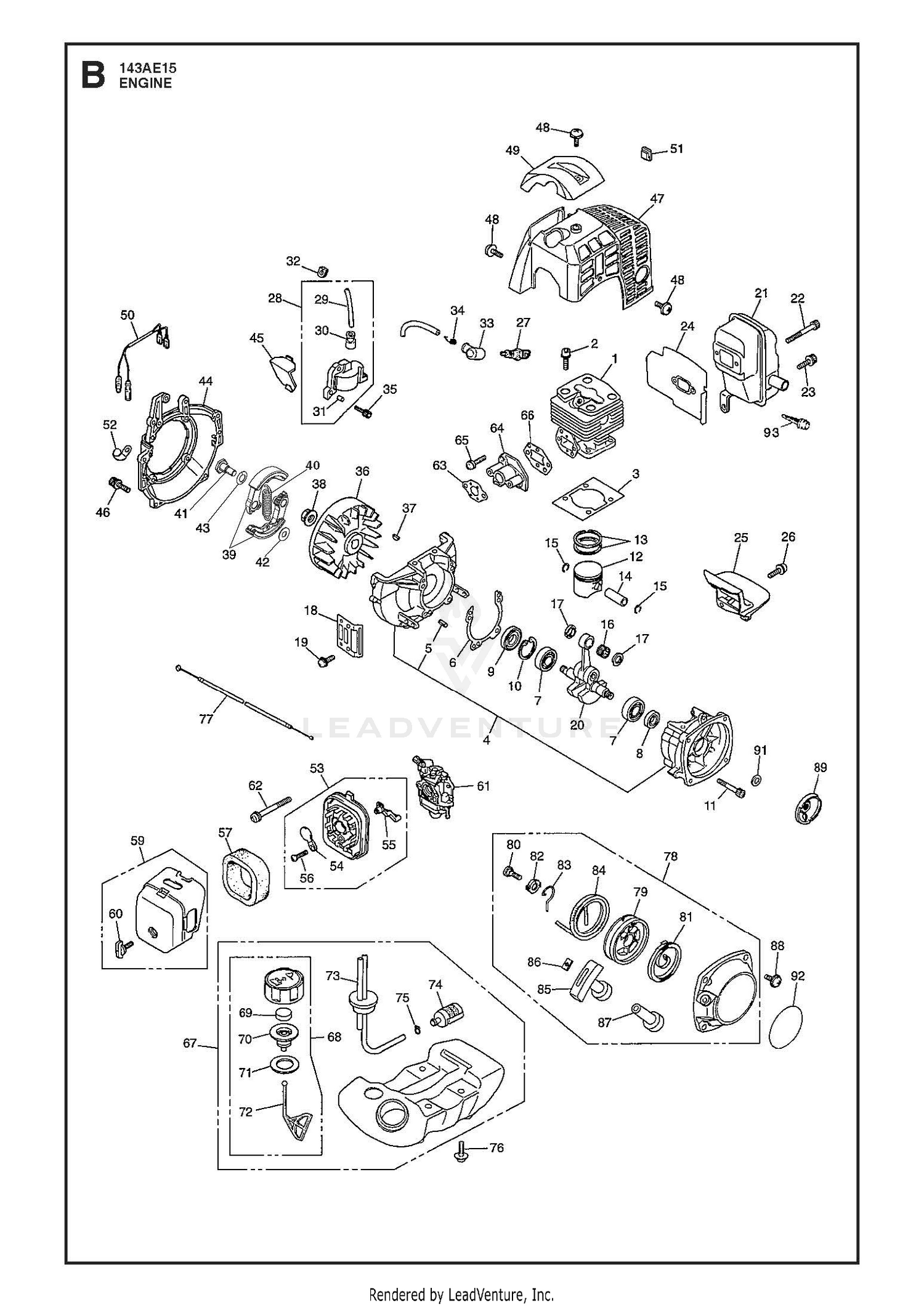

ENGINE
Parts (89)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510064201 | CYLINDER Price: $29.99 |
| 2 | 513412501 | BOLT Price: $2.99 |
| 3 | 510064301 | GASKET Price: $4.99 |
| 4 | 505296001 | CRANKCASE Price: $14.99 |
| 5 | 505296101 | PIN Price: $2.99 |
| 6 | 505296401 | GASKET Price: $2.99 |
| 8 | 504121501 | SEAL Price: $7.99 |
| 9 | 505296701 | SEAL Price: $6.99 |
| 10 | 504121001 | RING Price: $2.99 |
| 11 | 506609401 | BOLT Price: $2.99 |
| 12 | 505296901 | PISTON Price: $34.99 |
| 13 | 510917901 | RING, PISTON 2/PK Price: $7.99 |
| 14 | 505297101 | PISTON PIN Price: $2.99 |
| 15 | 516283001 | RING Price: $2.99 |
| 16 | 505297301 | ROLLER BEARING Price: $6.99 |
| 17 | 513752401 | WASHER Price: $5.99 |
| 18 | 505296201 | GUARD Price: $1.99 |
| 19 | 505299801 | SCREW Price: $2.99 |
| 20 | 505297501 | NEEDS DESCRIPTION Price: Call Us |
| 21 | 505299301 | MUFFLER Price: $49.99 |
| 22 | 505299401 | NEEDS DESCRIPTION Price: Call Us |
| 23 | 505299501 | BOLT Price: $2.99 |
| 24 | 526522801 | GASKET Price: $5.99 |
| 25 | 505299701 | PLATE.MUFFLER Price: $4.99 |
| 26 | 505299801 | SCREW Price: $2.99 |
| 27 | 515497401 | NEEDS DESCRIPTION Price: Call Us |
| 28 | 505298301 | COIL-A Price: $69.99 |
| 29 | 505298401 | CORD.HIGH Price: $2.99 |
| 30 | 516744001 | RP_CAP This part replaces 505042801. Price: $2.99 |
| 31 | 505298601 | PIN Price: $0.41 |
| 32 | 521358801 | RP GROMMET This part replaces 515415301. Price: $2.99 |
| 33 | 505298801 | CAP Price: $5.99 |
| 34 | 505298901 | SPRING Price: $2.99 |
| 35 | 505299001 | BOLT Price: $2.99 |
| 36 | 505298201 | ROTOR Price: $34.99 |
| 37 | 506689401 | KEY Price: $2.99 |
| 38 | 516437401 | NUT(RPLS 1140-43230&182301) This part replaces 504118001. Price: $2.99 |
| 39 | 505297601 | NEEDS DESCRIPTION Price: Call Us |
| 40 | 505297701 | SPRING Price: $5.99 |
| 41 | 505297801 | SCREW Price: $4.99 |
| 42 | 505298001 | WASHER Price: $2.99 |
| 43 | 505298101 | WASHER Price: $2.99 |
| 44 | 574721201 | NEEDS DESCRIPTION Price: Call Us |
| 45 | 505300401 | PLATE Price: $14.99 |
| 46 | 505300201 | NEEDS DESCRIPTION Price: Call Us |
| 47 | 505300501 | NEEDS DESCRIPTION Price: Call Us |
| 48 | 505300601 | SCREW Price: $2.99 |
| 49 | 505301101 | NEEDS DESCRIPTION Price: Call Us |
| 50 | 505301401 | CORD COMPLETE Price: $6.99 |
| 51 | 505301301 | GROMMET Price: $2.99 |
| 52 | 544264901 | RP_CLAMP This part replaces 521525101. Price: $2.99 |
| 53 | 505308801 | BODY ASSY. Price: $12.99 |
| 54 | 505308901 | PLATE, CHOKE Price: $2.10 |
| 55 | 505309001 | LEVER.CHOKE Price: $2.99 |
| 56 | 516771801 | RP_SCREW (RPLS 50030272) This part replaces 506614001. Price: $2.99 |
| 57 | 505309201 | ELEMENT Price: $4.99 |
| 59 | 505309301 | NEEDS DESCRIPTION Price: Call Us |
| 60 | 523071301 | KNOB Price: $4.99 |
| 61 | 515368001 | CARBURETOR-A Price: $106.99 |
| 62 | 505308701 | SCREW Price: $2.99 |
| 63 | 505305001 | GASKET Price: $3.99 |
| 64 | 526520501 | INSULATOR Price: $24.99 |
| 65 | 505304801 | SCREW Price: $2.99 |
| 66 | 505304901 | GASKET Price: $3.99 |
| 67 | 525898501 | TANK ASSY (RPLS -85004) Price: $74.99 |
| 68 | 505309601 | CAP A Price: $9.99 |
| 69 | 506746801 | FILTER Price: $3.99 |
| 70 | 515369401 | HOLDER-A Price: $5.99 |
| 71 | 506744301 | PACKING Price: $2.99 |
| 72 | 506745801 | STOPPER Price: $2.99 |
| 73 | 505310301 | PIPE COMP. Price: $11.99 |
| 74 | 591375401 | KIT FUEL FILTER This part replaces 506742601. Price: $8.99 |
| 75 | 506707001 | CLIP Price: $3.99 |
| 76 | 513350001 | SCREW Price: $0.40 |
| 77 | 521846301 | CABLE COMP. Price: $17.99 |
| 78 | 574014601 | NEEDS DESCRIPTION Price: Call Us |
| 79 | 504114701 | REEL Price: $9.99 |
| 80 | 515367101 | SCREW Price: $2.99 |
| 81 | 504115001 | SPRING, SPIRAL Price: $9.99 |
| 82 | 504114601 | COLLAR Price: $3.99 |
| 83 | 504114801 | SWING ARM Price: $4.99 |
| 84 | 505302801 | NEEDS DESCRIPTION Price: Call Us |
| 85 | 505303401 | KNOB Price: $6.99 |
| 86 | 504114001 | KNOB Price: $3.99 |
| 87 | 513253701 | NEEDS DESCRIPTION Price: Call Us |
| 88 | 505304401 | SCREW Price: $2.99 |
| 89 | 504114401 | PULLEY Price: $7.99 |
| 91 | 505304601 | COLLAR Price: $2.99 |
| 92 | 574004901 | NEEDS DESCRIPTION Price: Call Us |
