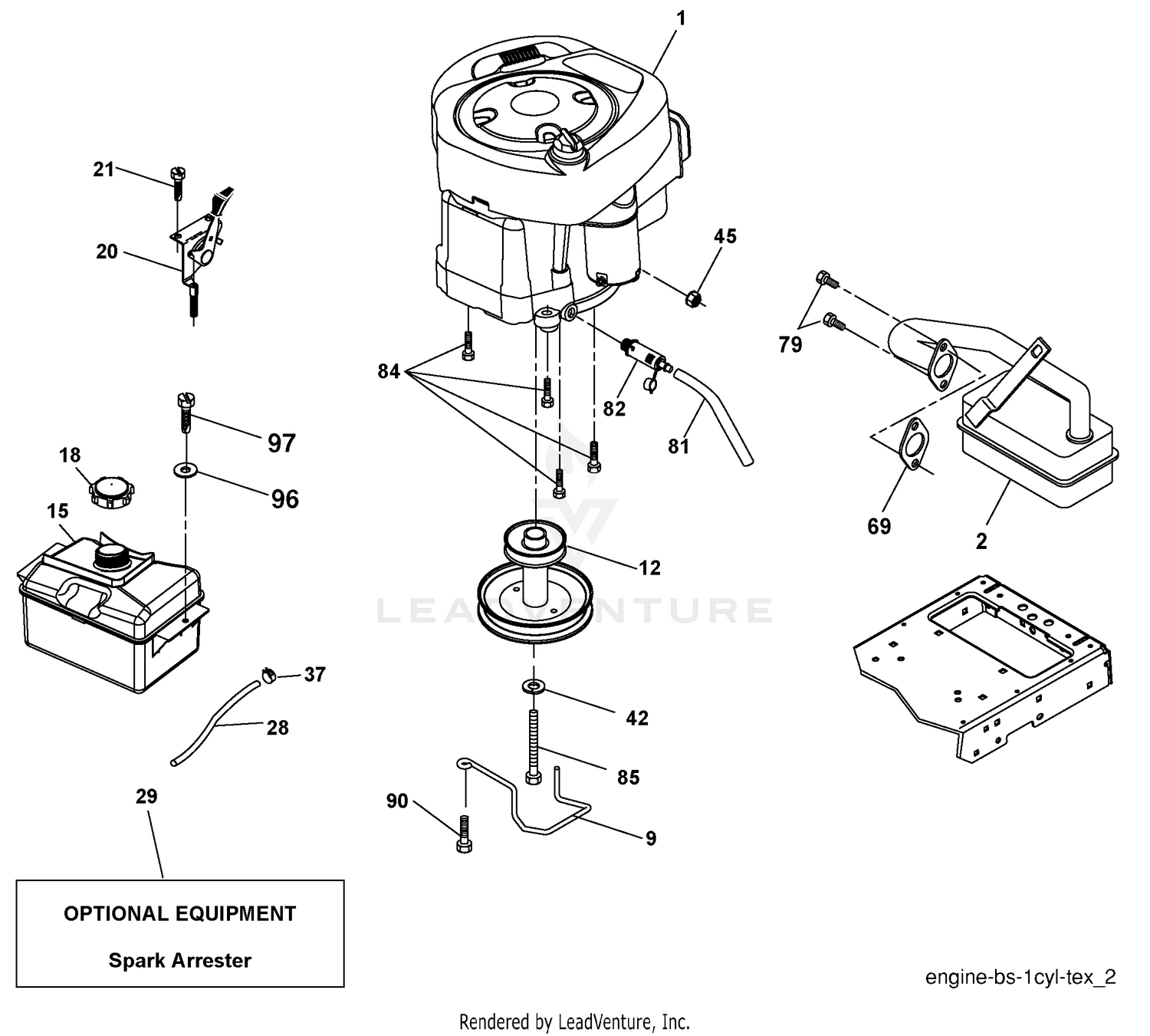

| Ref | Part Number | Description |
|---|
| 1 |
58-2800 |
BUSHING Price: $16.22 |
| 2 |
137352 |
Muffler Price: Call Us |
| 2 |
60-3720 |
PIN-ROLL Price: $2.43 |
| 3 |
58-2810 |
ROD Price: $77.22 |
| 4 |
3256-7 |
WASHER-FLAT Price: $0.75 |
| 5 |
48-6780 |
SPRING-COMPRESSION Price: $28.08 |
| 6 |
60-1240 |
SPRING Price: $37.47 |
| 7 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 8 |
98-1230-03 |
TUBE-LOWER Price: $483.36 |
| 9 |
194319 |
Keeper Belt Engine Price: Call Us |
| 9 |
322-7 |
SCREW-HH Price: $0.89 |
| 10 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 11 |
92-5273 |
MUFFLER Price: $831.75 |
| 12 |
323-9 |
SCREW-HH Price: $1.29 |
| 12 |
405140 |
Pulley Engine Price: Call Us |
| 13 |
2412-132 |
CLAMP, T-BOLT Price: $15.50 |
| 15 |
407489 |
Tank Fuel Price: Call Us |
| 16 |
58-6520 |
DECAL-GREASE Price: $2.57 |
| 17 |
93-9405 |
DECAL-PRESSURE, AIR Price: $9.81 |
| 18 |
197725 |
Cap Asm Price: Call Us |
| 18 |
33116-030 |
SCREW-HH Price: $1.56 |
| 19 |
48-7080 |
GRIP-PLASTIC Price: $7.04 |
| 20 |
176636X421 |
Control Throttle Price: Call Us |
| 20 |
86-6570-03 |
LATCH Price: $157.07 |
| 21 |
416358 |
Screw #10 x 0.750 BOS Thread Price: Call Us |
| 21 |
51-2070 |
NUT Price: $0.68 |
| 22 |
82-4910 |
ROLLER Price: $26.42 |
| 23 |
51-2060 |
WASHER Price: $0.68 |
| 24 |
60-0160 |
PIN Price: $39.08 |
| 25 |
60-2110 |
PIN Price: $1.42 |
| 26 |
48-8830 |
PIN-EXPANSION Price: $1.52 |
| 27 |
48-8850 |
SPRING-DISC Price: $4.79 |
| 28 |
401137 |
Fuel Line Price: Call Us |
| 28 |
86-6590-03 |
LATCH-LH Price: $47.66 |
| 29 |
137180 |
Spark Arrester Kit Price: Call Us |
| 29 |
94-8268-01 |
FRAME ASM Price: $8,083.31 |
| 30 |
60-4190-03 |
SHIELD-GRASS, LH Price: $45.54 |
| 31 |
60-4200-03 |
SHIELD-GRASS, RH Price: $49.14 |
| 32 |
48-6900 |
SCREW Price: $1.52 |
| 33 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 34 |
60-2080 |
CLAMP-HOSE Price: $21.62 |
| 35 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 36 |
48-7680 |
SCREW-HH Price: $0.61 |
| 37 |
123487X |
Clamp Hose Price: Call Us |
| 39 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 40 |
88-6700 |
DECAL-ANSI Price: $2.26 |
| 41 |
76-3560 |
CLAMP Price: $5.32 |
| 42 |
10040700 |
Washer Lock 7/16 Price: Call Us |
| 44 |
86-6580-03 |
LATCH-RH Price: $47.66 |
| 45 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 48 |
321-9 |
SCREW-HH Price: $0.27 |
| 50 |
82-2980 |
PLATE-COVER Price: $3.62 |
| 51 |
82-2990 |
CLAMP-HALF Price: $12.30 |
| 62 |
98-1246-03 |
BRACKET-EXHAUST Price: $49.56 |
| 63 |
98-1231-03 |
TUBE-UPPER Price: $245.35 |
| 64 |
98-7890 |
DISCONTINUED Price: Call Us |
| 66 |
33114-025 |
SCREW-HH Price: $0.70 |
| 67 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 68 |
43-5940 |
WASHER-LOCK, SPRING Price: $0.70 |
| 69 |
165291 |
Gasket Price: Call Us |
| 69 |
42-9250 |
BOLT Price: $1.63 |
| 70 |
2112-6 |
CLAMP-MUFFLER Price: $7.53 |
| 79 |
192334 |
Screw Socket HD 5/16-18 x .75 Price: Call Us |
| 81 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 82 |
181654 |
Plug Drain Oil Price: Call Us |
| 84 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 85 |
173937 |
Bolt 7/16-20 x 4 x Gr. 5-1.5 Price: Call Us |
| 90 |
17000616 |
Screw 3/8-16 x 1 Price: Call Us |
| 96 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
