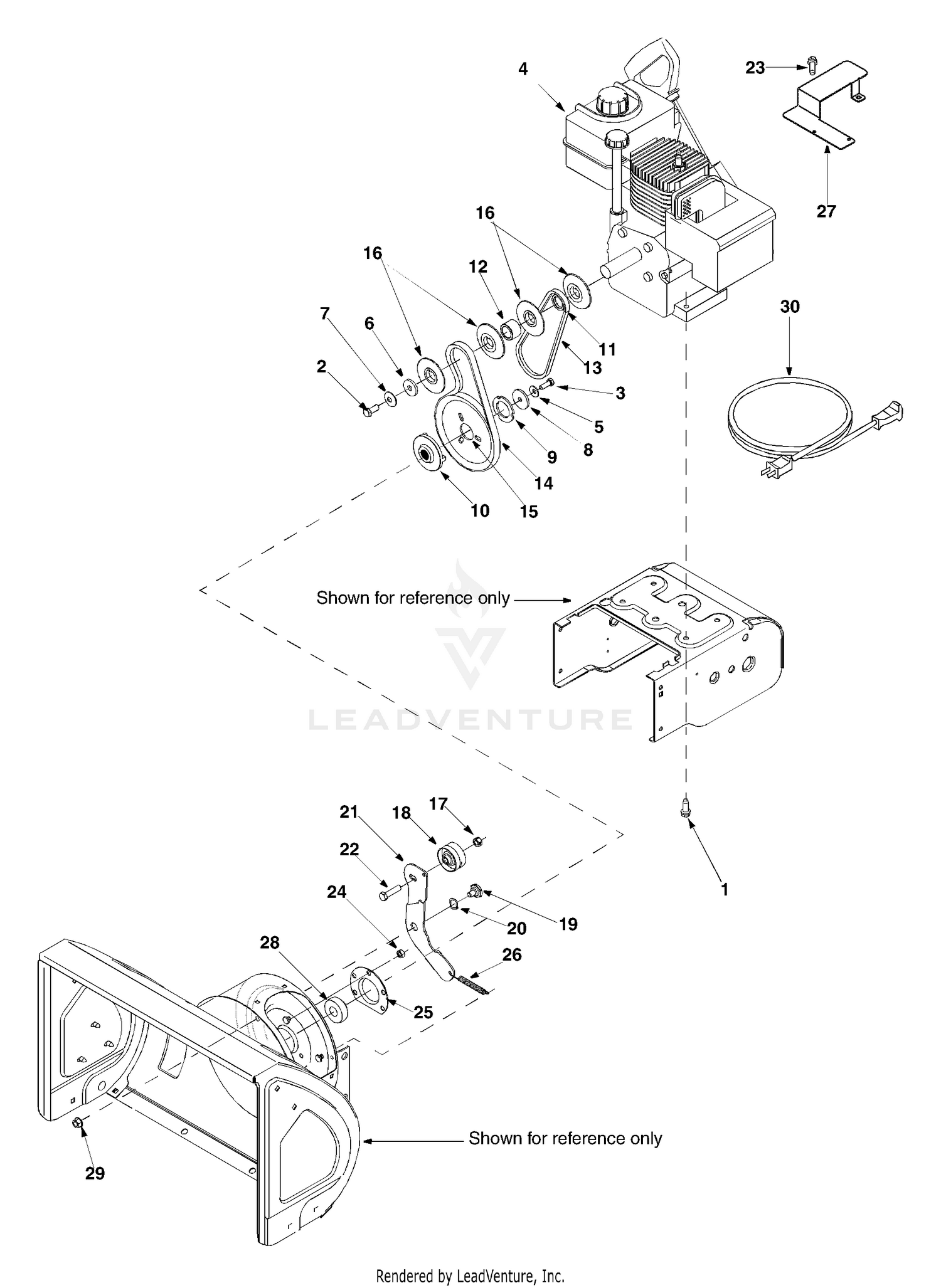

| Ref | Part Number | Description |
|---|
| 1 |
710-0654A |
TT Sems Screw 3/8-16 x 1.0" Price: $3.75 |
| 2 |
710-0696 |
Hex Bolt 3/8-24 x 0.875" Price: $5.94 |
| 3 |
710-1245B |
Lock Bolt 5/16-24 x 0.875" Price: $7.21 |
| 5 |
736-0242 |
Bell Washer,.340 x.872 x.060 Price: $3.75 |
| 6 |
736-0247 |
Flat Washer,.406ID x 1.25OD Price: $8.82 |
| 7 |
736-0331 |
Bell Washer,.390 x 1.13 x.062 Price: $3.50 |
| 8 |
736-0505 |
Flat Washer,.34ID x 1.50OD Price: $5.65 |
| 9 |
936-0507 |
Special Washer, 1.285 x 2.0 x.119 Price: $6.01 |
| 10 |
948-0360 |
Pulley: Adapter,.75 Dia. Price: $19.88 |
| 11 |
950-1355 |
Spacer,.8760ID x 1.25OD x.1900 Price: $5.65 |
| 12 |
950-1356 |
Spacer,.8760ID x 1.25OD x.86 Price: $9.16 |
| 13 |
954-04013 |
V-Belt, 3/8 x 21.108 Lg. Price: $21.19 |
| 15 |
956-04024 |
Auger Pulley Price: $22.19 |
| 16 |
756-0569 |
Pulley Half Not Available Price: |
| 17 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 912-3000. Price: $3.90 |
| 19 |
738-0281 |
Screw, Shoulder, .625 x .17, 3/8-16 This part replaces 938-0281. Price: $9.16 |
| 20 |
736-0174 |
Wave Washer Price: $5.94 |
| 21 |
784-0434C-0637 |
Auger Idler Bracket This part replaces 784-0434-0637. Price: $16.76 |
| 22 |
710-0520 |
Hex Bolt 3/8-16 x 1.50" Price: $3.93 |
| 23 |
710-0456 |
HEX SCREW #10-16 x 0.500 Not Available Price: |
| 24 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 25 |
790-00075B |
BEARING HOUSING 1.85 ID This part replaces 790-00075. Price: $5.66 |
| 26 |
932-0611 |
Extension Spring Price: $6.92 |
| 27 |
990-00064 |
HEAT SHIELD Not Available Price: |
| 28 |
941-0309 |
Ball Bearing Price: $69.59 |
| 29 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
