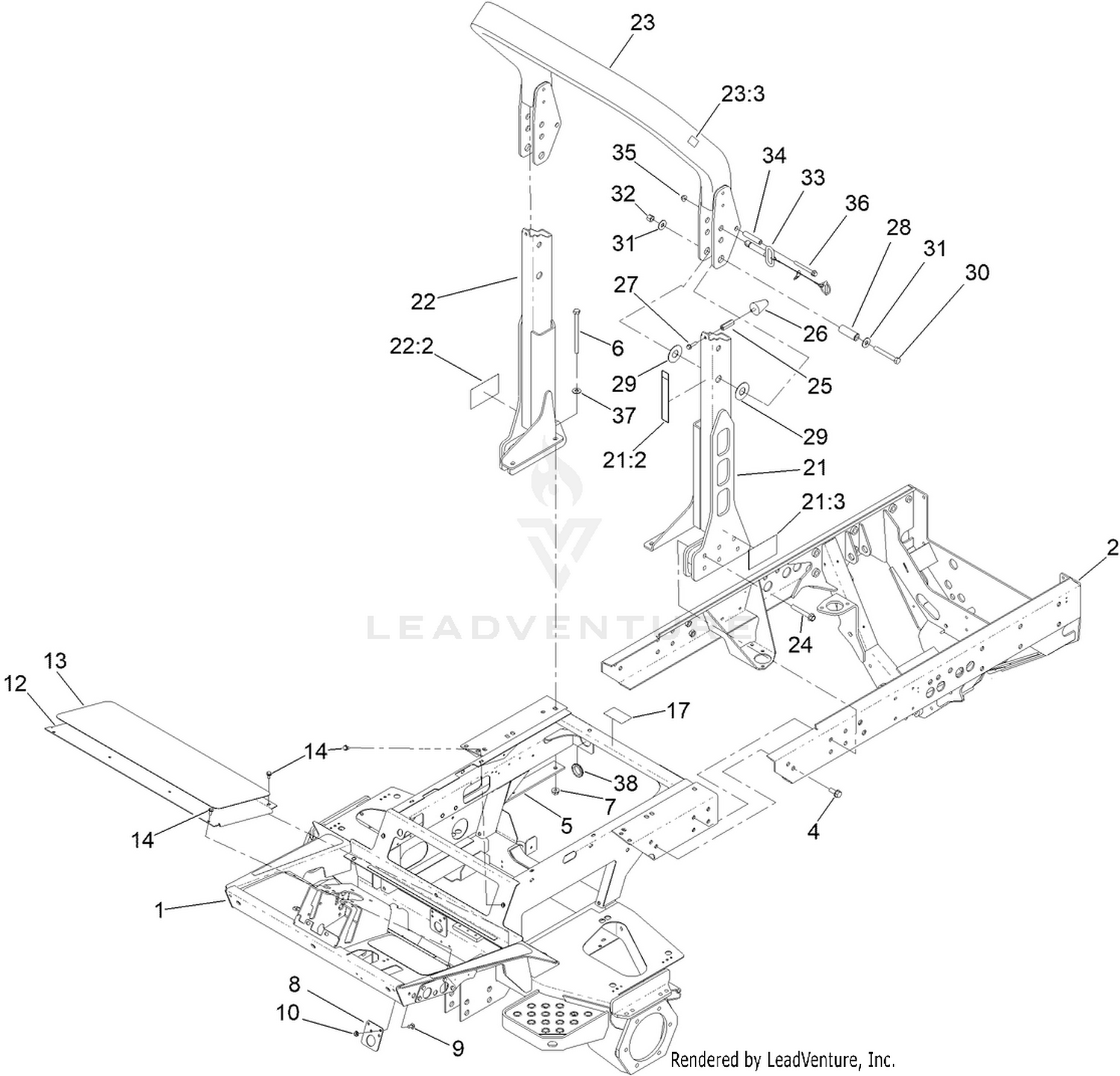

Frame and Roll-Over Protection System Assembly
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-8086 | FRONT FRAME ASM Price: $5,122.88 |
| 2 | 120-8007-03 | FRAME-REAR Price: $3,094.30 |
| 4 | 3234-38 | SCREW-HHF Price: $3.33 |
| 5 | 104-5584-0P | PLATE-REINFORCEMENT,ROPS Price: $36.27 |
| 6 | 325-33 | SCREW-HH Price: $11.49 |
| 7 | 32128-49 | NUT-HHF Price: $1.04 |
| 8 | 104-5516-0P | SUPPORT-TUBE Price: $9.23 |
| 9 | 3230-23 | SCREW-CARR Price: $0.89 |
| 10 | 32128-20 | NUT-HF Price: $0.99 |
| 12 | 75-1410-01 | PLATE-ACCESS, FLOOR Price: $142.43 |
| 13 | 125-4614 | TREAD-FOOT, CENTER Price: $65.72 |
| 14 | 3234-7 | SCREW-HHF Price: $1.99 |
| 17 | 106-6754 | DECAL-DANGER Price: $9.57 |
| 21 | 136-2900 | LH ROPS ASM Price: $586.28 |
| 22 | 136-2901 | RH ROPS ASM Price: $586.28 |
| 23 | 136-2885 | TOP TUBE ASM Price: $820.46 |
| 24 | 114-8419 | SCREW-HHF Price: $4.17 |
| 25 | 136-2899 | STANDOFF Price: $49.46 |
| 26 | 114-1925 | BUMPER-RUBBER Price: $24.99 |
| 27 | 3234-36 | SCREW-HHF Price: $0.75 |
| 28 | 136-2890 | SPACER Price: $22.56 |
| 29 | 136-2893 | WASHER-PLASTIC Price: $3.94 |
| 30 | 325-17 | SCREW-HH Price: $2.90 |
| 31 | 3256-6 | WASHER-FLAT Price: $0.34 |
| 32 | 3296-23 | NUT-LOCK, NI Price: $0.52 |
| 33 | 136-2892 | PIN ASM Price: $18.53 |
| 34 | 80-1890 | SPACER Price: $9.06 |
| 35 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 36 | 116-4701 | SCREW-HHF Price: $2.59 |
| 37 | 87-7270 | WASHER-THRUST Price: $0.89 |
