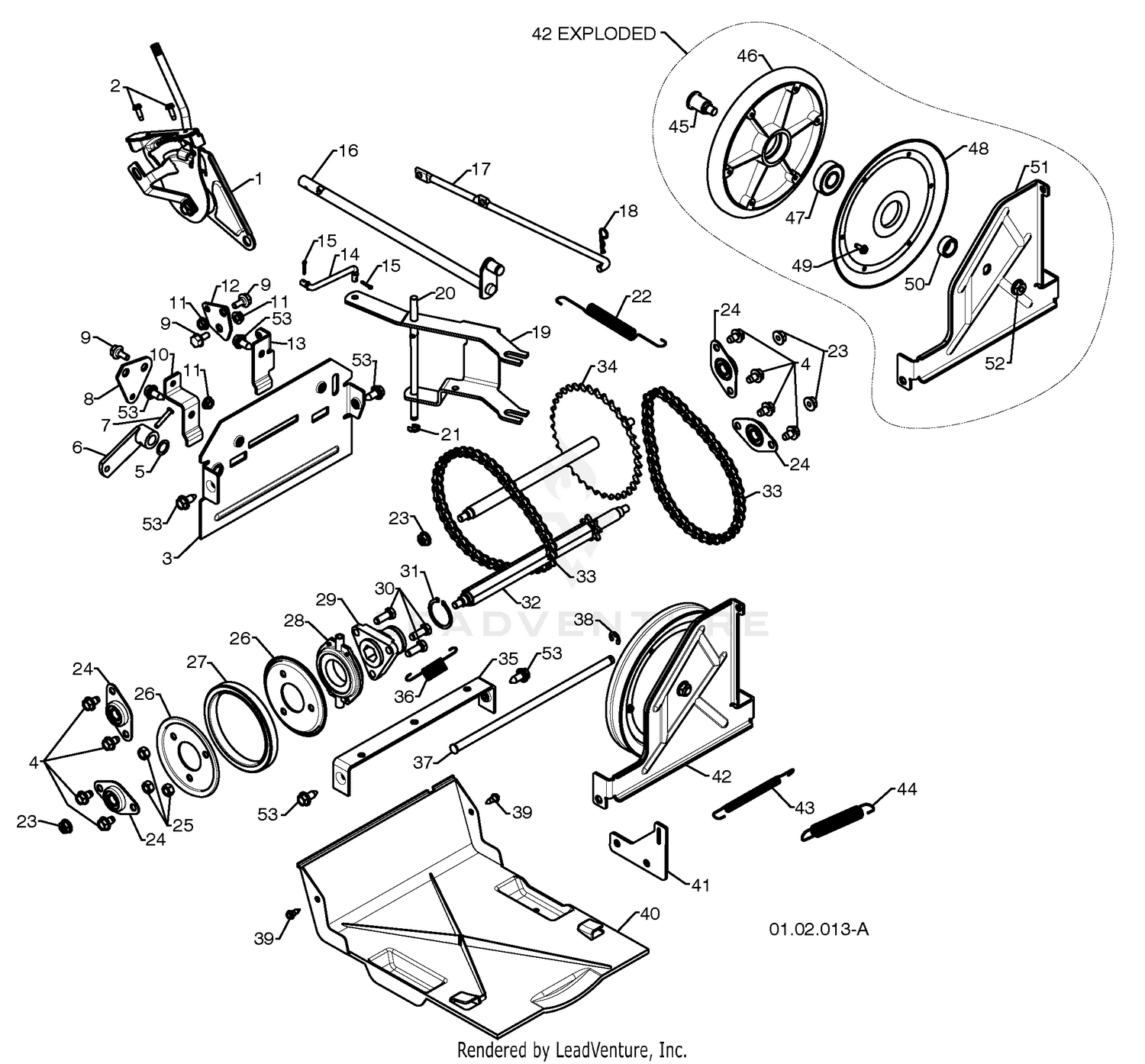

| Ref | Part Number | Description |
|---|
| 1 |
198875 |
SPEED SELECTOR ASSEMBLY Price: Call Us |
| 1 |
98-7707 |
PULLEY-ALTERNATOR Price: $64.31 |
| 2 |
17501010 |
SCREW 10-24 X .625 Price: Call Us |
| 2 |
98-7708 |
NUT Price: $7.76 |
| 3 |
402685X428 |
END PLATE Price: Call Us |
| 3 |
98-7709 |
COLLAR Price: $8.79 |
| 4 |
107-0136 |
ROTOR ASM This part replaces 98-7710. Price: $268.62 |
| 4 |
17490508 |
SCREW 5/16-18 X .50 Price: Call Us |
| 5 |
57079 |
WASHER Price: Call Us |
| 5 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 6 |
405485 |
CONTROL ARM Price: Call Us |
| 6 |
98-7712 |
BEARING-BALL Price: $31.09 |
| 7 |
198580 |
CLEVIS PIN Price: Call Us |
| 7 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 8 |
403097X431 |
SHIFTER PLATE Price: Call Us |
| 8 |
98-7714 |
FRAME-END, DRIVE Price: $311.88 |
| 9 |
402881 |
SHOULDER BOLT Price: Call Us |
| 9 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 10 |
403096X431 |
SHIFTER BRACKET Price: Call Us |
| 10 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 11 |
191730 |
NUT 1/4-20 Price: Call Us |
| 11 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 12 |
402856X431 |
CLUTCH PLATE Price: Call Us |
| 12 |
98-7718 |
BEARING-BALL Price: $34.82 |
| 13 |
416717X431 |
CLUTCH BRACKET Price: Call Us |
| 13 |
98-7719 |
FRAME-END Price: $88.65 |
| 14 |
187101 |
SHIFTER LINK Price: Call Us |
| 14 |
98-7720 |
COVER-END Price: $39.58 |
| 15 |
700279 |
RETAINER Price: Call Us |
| 15 |
98-7721 |
RECTIFIER ASM Price: $486.45 |
| 16 |
427542 |
CONTROL SHAFT Price: Call Us |
| 16 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 17 |
402568 |
CLUTCH ROD Price: Call Us |
| 17 |
98-7723 |
HOLDER-BRUSH Price: $52.72 |
| 18 |
169675 |
RETAINER Price: Call Us |
| 18 |
98-7724 |
BRUSH Price: $12.41 |
| 19 |
401732 |
SHIFTER YOKE Price: Call Us |
| 19 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 20 |
402310 |
PIVOT ROD Price: Call Us |
| 20 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 21 |
12000036 |
RETAINER Price: Call Us |
| 21 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 22 |
402878 |
RETURN SPRING Price: Call Us |
| 22 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 23 |
751153 |
NUT 5/16-18 Price: Call Us |
| 23 |
98-7729 |
BOLT Price: $2.35 |
| 24 |
408981 |
BEARING Price: Call Us |
| 24 |
98-7730 |
NUT Price: $1.31 |
| 25 |
73930500 |
NUT 5/16-18 Price: Call Us |
| 25 |
98-7731 |
BOLT Price: $3.94 |
| 26 |
198176X431 |
RUBBER WHEEL PLATE Price: Call Us |
| 26 |
98-7732 |
NUT Price: $1.45 |
| 27 |
179831 |
RUBBER RING Price: Call Us |
| 28 |
175344 |
BEARING Price: Call Us |
| 29 |
178613 |
WHEEL HUB Price: Call Us |
| 30 |
74760514 |
SCREW 5/16-18-.875 Price: Call Us |
| 31 |
12000012 |
RETAINER RING Price: Call Us |
| 32 |
402187 |
SPROCKET SHAFT Price: Call Us |
| 33 |
401619 |
CHAIN Price: Call Us |
| 34 |
417234 |
SPROCKET WELDMENT Price: Call Us |
| 35 |
401984X431 |
SHIFTER BRACKET Price: Call Us |
| 36 |
180135 |
SPRING Price: Call Us |
| 37 |
402652 |
PLATE PIVOT ROD Price: Call Us |
| 38 |
428288 |
E-RING .375 Price: Call Us |
| 39 |
184471 |
SHOULDER SCREW Price: Call Us |
| 40 |
410877 |
BOTTOM PAN Price: Call Us |
| 41 |
413429X431 |
SPRING BRACKET Price: Call Us |
| 42 |
402689 |
DRIVE PLATE ASSEMBLY Price: Call Us |
| 43 |
414557 |
IDLER SPRING Price: Call Us |
| 44 |
178828 |
IDLER SPRING Price: Call Us |
| 45 |
402504 |
PULLEY SHAFT Price: Call Us |
| 46 |
401820 |
DRIVE PLATE Price: Call Us |
| 47 |
198791 |
BEARING Price: Call Us |
| 48 |
402393 |
PULLEY HALF Price: Call Us |
| 49 |
17541008 |
SCREW 10-24 X .50 Price: Call Us |
| 50 |
402511 |
SPACER BEARING Price: Call Us |
| 51 |
418894X431 |
SWING PLATE Price: Call Us |
| 52 |
132010 |
NUT 3/8-16 Price: Call Us |
