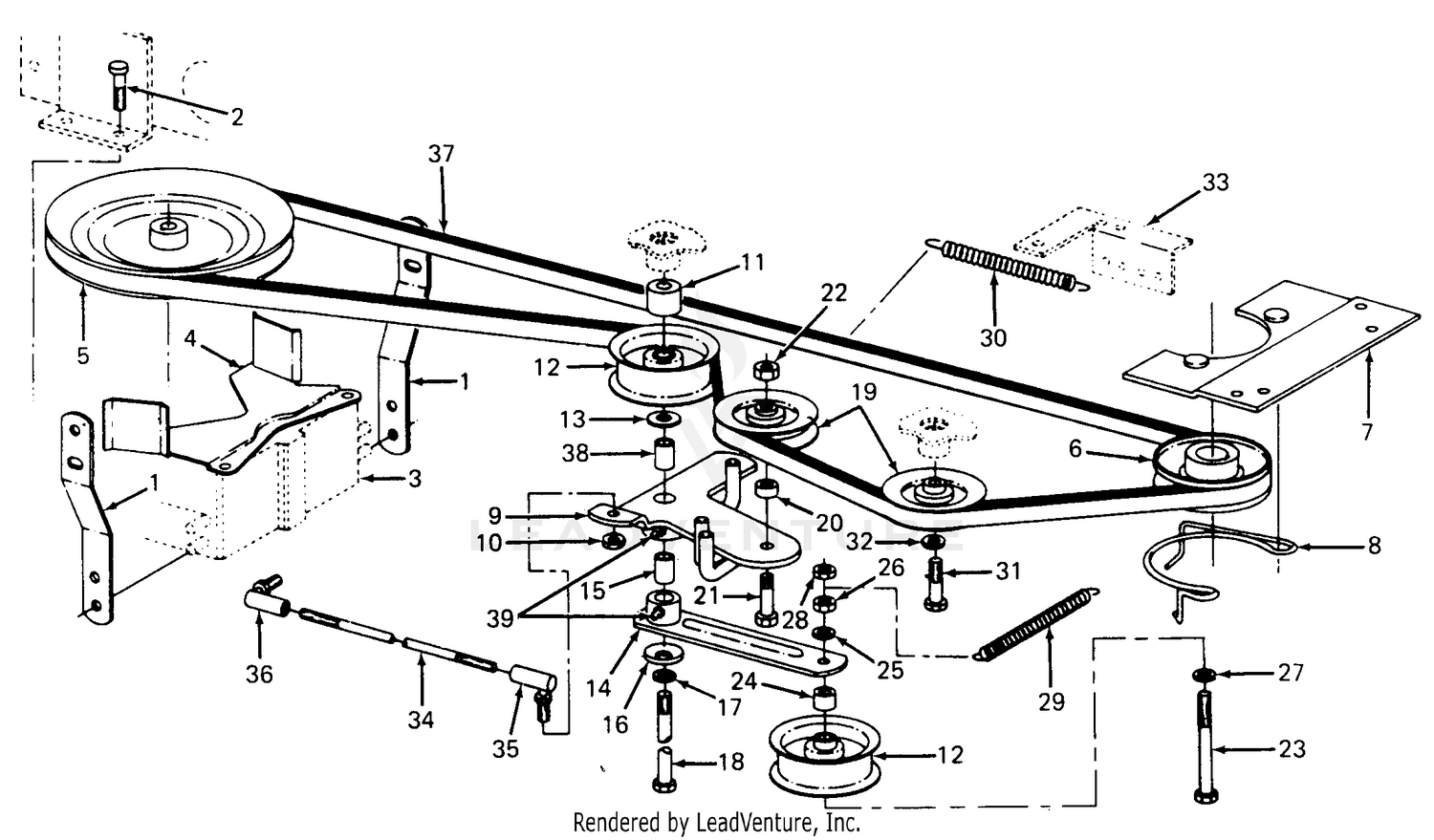

| Ref | Part Number | Description |
|---|
| 1 |
703-1106 |
BRACE-TRANSMISSION Not Available Price: |
| 1 |
93-9945 |
DISCONTINUED Price: Call Us |
| 2 |
321-6 |
SCREW-HH Price: $0.25 |
| 2 |
710-0395 |
SCREW-HEX 5/16-18 X 2.25 This part replaces 710-3073. Price: $4.08 |
| 3 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 3 |
717-3040 |
TRANSAXLE Not Available Price: |
| 4 |
14631 |
Support, Belt Keeper Price: Call Us |
| 4 |
93-7182 |
SHIELD - FAN Price: $451.43 |
| 5 |
756-3028 |
TRANSMISSION PULLEY Not Available Price: |
| 6 |
756-3033 |
ENGINE PULLEY Not Available Price: |
| 7 |
703-1212 |
PLATE-MTG-BELT GUARD Not Available Price: |
| 8 |
747-3104 |
BELT GUARD Not Available Price: |
| 9 |
703-1397 |
BRACKET ASSEMBLY-CLUTCH Not Available Price: |
| 10 |
912-3057 |
Hex Nut, 5/16-24 This part replaces 712-3057. Price: $5.94 |
| 11 |
711-3175 |
BUSHING-.390 x 1.0 x .812 LG Not Available Price: |
| 12 |
956-0217 |
Fl-Idler w/Flanges 2.75" O.D. This part replaces 756-0217. Price: $19.86 |
| 13 |
736-0267 |
FLAT WASHER .38X.88 Price: $3.90 |
| 14 |
703-1396-0637 |
IDLER ARM(POWDER BLACK) Not Available This part replaces 703-1396. Price: |
| 15 |
950-0252 |
Idler Spacer Not Available This part replaces 750-0252. Price: |
| 16 |
736-0247 |
Washer, .400 X 1.25 X .157 Belleville Price: $8.82 |
| 17 |
736-0169 |
Washer, 3/8 Lock Price: $3.33 |
| 18 |
710-3153 |
SCREW 3/8-16 x 4.75 GR5 Not Available Price: |
| 19 |
756-0236 |
V-IDLER PULLEY Not Available Price: |
| 20 |
750-04776 |
Spacer, .380 x .625 x .265 This part replaces 750-0507. Price: $4.75 |
| 21 |
710-0347 |
Hex Cap Screw, 3/8-16 x 1.75 This part replaces 710-3037. Price: $4.39 |
| 22 |
712-3000 |
Nut, 3/8 Cad P/T Lock GR 5 Price: $3.90 |
| 23 |
710-3022 |
Bolt, 3/8 X 2-3/4 GR 5 Price: $4.09 |
| 24 |
750-0497 |
Spacer, .375 X .625 X .445 Price: $9.24 |
| 25 |
736-0169 |
Washer, 3/8 Lock Price: $3.33 |
| 26 |
712-3008 |
HEX JAM NUT 3/8-16 GR5 Price: $4.08 |
| 27 |
736-0140 |
Washer, .385 X .62 X .063 Price: $6.20 |
| 28 |
712-0266A |
Nut, Jam Lock, 3/8-16 This part replaces 712-0266. Price: $3.43 |
| 29 |
723-3044 |
Spring, .41 OD X 6.0 Long Price: Call Us |
| 30 |
932-0384 |
EXTENSION SPRING Not Available This part replaces 732-0384. Price: |
| 31 |
710-3005 |
Bolt, 3/8 X 1-1/4 GR 5 Price: $3.61 |
| 32 |
736-0169 |
Washer, 3/8 Lock Price: $3.33 |
| 34 |
711-3193 |
CLUTCH ROD Not Available Price: |
| 35 |
923-3011 |
JOINT-BALL-5/16-24 (R.H.) This part replaces 723-3011. Price: $32.80 |
| 36 |
923-3012 |
Ball Joint 5/16-24 Thd. This part replaces 723-3012. Price: $37.06 |
| 37 |
954-3024 |
V-BELT 1/2 x 91 This part replaces 754-3024. Price: $54.69 |
| 38 |
750-0245 |
SPACER-SW ARM Not Available Price: |
| 503216620 |
503216618 |
SCREW This part replaces 503216620. Price: $3.99 |
| 503718201 |
503718201 |
START/STOP SWITCH Price: $11.99 |
| 503877901 |
503877903 |
THROTTLE TRIGGER This part replaces 503877901. Price: $7.99 |
| 503878001 |
503878001 |
THROTTLE LOCK Price: $4.99 |
| 503878501 |
503878501 |
WIRE Price: $14.99 |
| 503918101 |
503918101 |
LEVER Price: $5.99 |
| 503961301 |
503961301 |
SCREW MT5X11 Price: $0.50 |
| 503961401 |
503961401 |
VIBRATION DAMPER Price: $4.99 |
| 503995501 |
503995501 |
HSG THROTTLE RH Price: $9.99 |
| 503995502 |
503995502 |
HANDLE Price: $19.99 |
| 503995601 |
503995601 |
HANDLE HALF HSG LH Price: $9.99 |
| 503995602 |
503995602 |
HANDLE Price: $19.99 |
| 537011301 |
537011301 |
SPRING Price: $4.99 |
| 537052501 |
544171701 |
THROTTLE CABLE This part replaces 537052501. Price: $19.99 |
