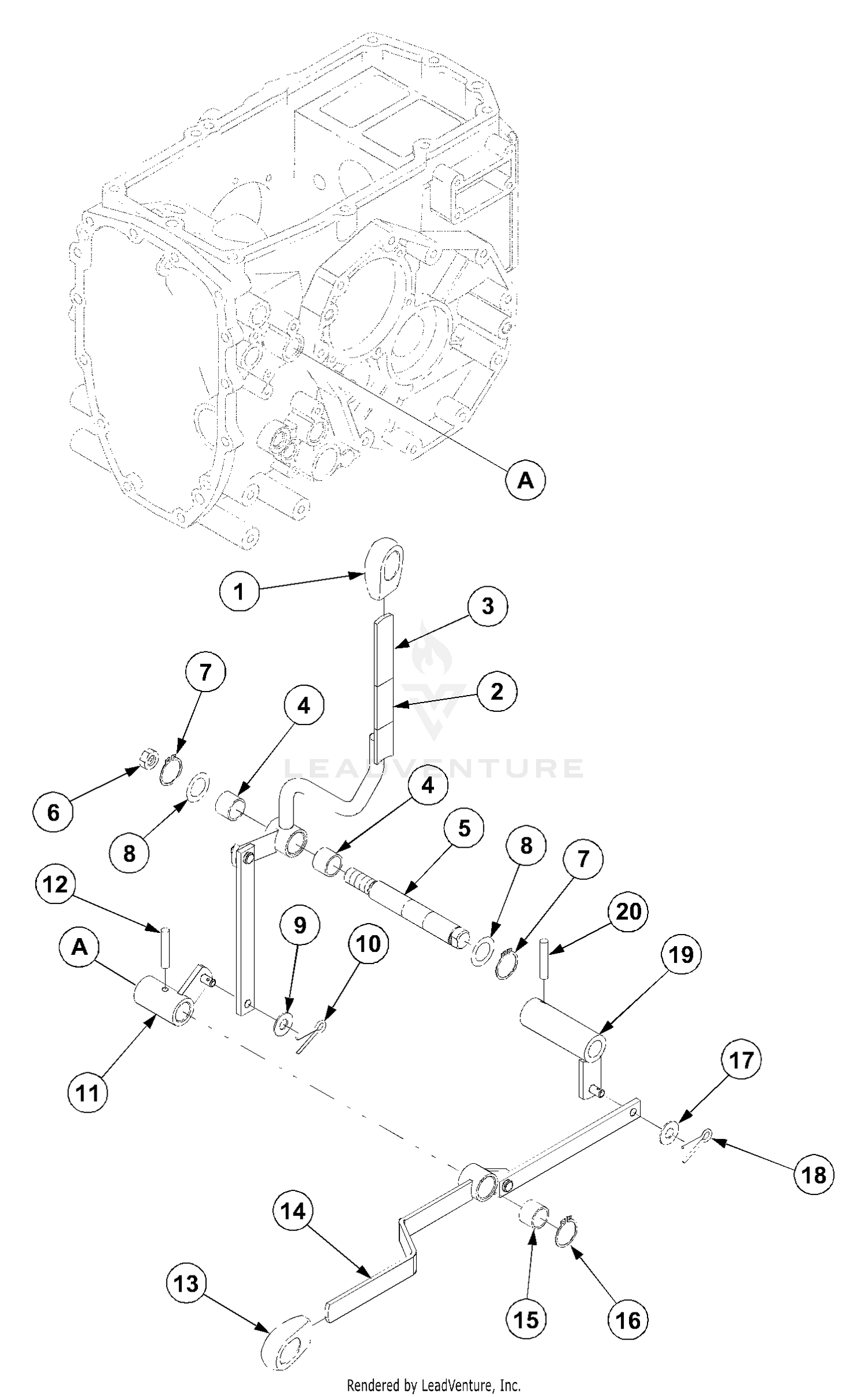

T/M Control (Part 4)
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 164067 | Control Throttle Price: Call Us |
| 1 | MA-10392491000 | GRIP-RANGE-LEVER Not Available Price: |
| 2 | MA-10442476000 | TUBE-SHIFT LEVER Not Available Price: |
| 3 | MA-19571762AG0 | LEVER-SUB Not Available Price: |
| 4 | 149723 | Muffler Asm Twin Lo-Tone Price: Call Us |
| 4 | MA-07972020100 | BUSHING Not Available Price: |
| 5 | 159955 | Pipe Exhaust LH Intek Price: Call Us |
| 5 | MA-10441762001 | SHAFT-MAIN Not Available Price: |
| 6 | 160589 | Pipe Exhaust RH Intek Price: Call Us |
| 6 | MA-A3010116003 | NUT Not Available Price: |
| 7 | MA-07400102000 | RING, SNAP Not Available Price: |
| 8 | 171877 | Bolt 5/16-18 UNC x 3/4 w/Sems Price: Call Us |
| 8 | MA-07310102010 | LINER Not Available Price: |
| 9 | MA-03500140818 | WASHER Not Available Price: |
| 10 | 162797 | Shield Browning Intek II Price: Call Us |
| 10 | MA-05200125020 | COTTER PIN Not Available Price: |
| 11 | MA-19571765AG0 | LINK-SUB R Not Available Price: |
| 12 | MA-10381725000 | SPRING PIN Not Available Price: |
| 13 | 165391 | Muffler Gasket Price: Call Us |
| 13 | MA-35773623000 | GRIP-4WD LEVER Not Available Price: |
| 14 | 148456 | Tube Drain Oil Easy Price: Call Us |
| 14 | MA-19571784AG0 | LEVER-4WD Not Available Price: |
| 15 | MA-07961020250 | BUSHING Not Available Price: |
| 16 | 11050600 | Washer Lock Ext Tooth 3/8 Price: Call Us |
| 16 | MA-07400102000 | RING, SNAP Not Available Price: |
| 17 | 17490624 | Screw Thdrol 3/8-16 x 1-1/2 Price: Call Us |
| 17 | MA-03500140818 | WASHER Not Available Price: |
| 18 | MA-05200125020 | COTTER PIN Not Available Price: |
| 19 | MA-19571783AG0 | LINK-4WD S Not Available Price: |
| 23 | 169837 | Shield Heat Price: Call Us |
| 25 | 164068 | Choke Control Price: Call Us |
| 26 | 73920600 | Nut, Keps 3/8-24 UNF Price: Call Us |
| 29 | 137180 | Kit Spark Arrestor (Flat Scrn) Price: Call Us |
| 31 | 157103 | Tank Fuel 3 50 Rear Price: Call Us |
| 32 | 140527 | Cap Asm Fuel W/sym Vented Price: Call Us |
| 33 | 123487X | Clamp Hose Black Price: Call Us |
| 34 | 106082X | Pad, Spacer Price: Call Us |
| 37 | 8543R | Line Fuel Price: Call Us |
| 38 | 148315 | Plug Drain Oil Easy Price: Call Us |
| 39 | 109227X | Pad, Idler Price: Call Us |
| 45 | 17000612 | Screw Hexwsh Thdr 3/8-16 x 3/4 Price: Call Us |
| 62 | 10040500 | Washer Lock 5/16 Price: Call Us |
| 72 | 71070512 | Screw Hex Hd Cap 5/16-18 x 3/4 Price: Call Us |
| 81 | 73510400 | Nut Keps Hex 1/4-20 UNC Price: Call Us |
