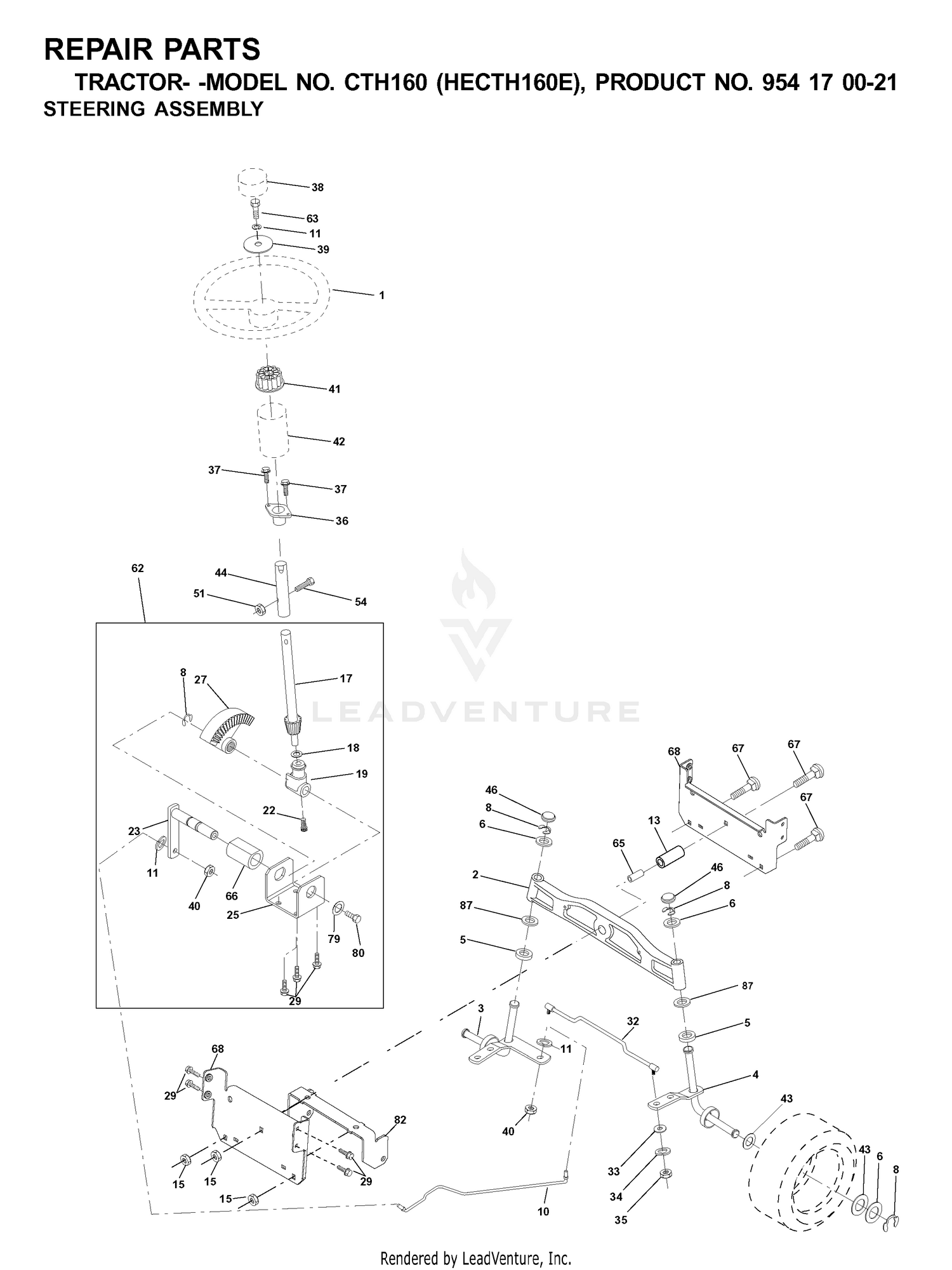

| Ref | Part Number | Description |
|---|
| 1 |
532166627 |
STEERING WHEEL Price: $64.99 |
| 1 |
54-4210 |
DISCONTINUED Price: Call Us |
| 2 |
325-5 |
SCREW-HH Price: $1.20 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532172393. Price: $119.99 |
| 3 |
323-7 |
SCREW-HH Price: $0.65 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
53-5250-01 |
HANDLE - LIFT, LONG This part replaces 53-5250. Price: $58.10 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
323-6 |
SCREW-HH Price: $0.66 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
3-7877 |
GRIP-HANDLE Price: $10.69 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 7 |
53-5260-01 |
HANDLE - LIFT, SHORT This part replaces 53-5260. Price: $107.16 |
| 7 |
819272016 |
WASHER Price: $3.99 |
| 8 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
32153-5 |
NUT-HEX Price: $1.59 |
| 10 |
5-4693 |
CHAIN Price: $30.29 |
| 10 |
532169832 |
DRAGLINK.15".TIRES Price: $64.99 |
| 11 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 12 |
282-13 |
DISCONTINUED Price: Call Us |
| 13 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 14 |
12-0010 |
U BOLT W.A. Price: $81.76 |
| 15 |
5-1108 |
BOLT-HINGE CLAMP Price: $42.89 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 16 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 17 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 17 |
531166901 |
SERVICE KIT SHAFT ASM ST This part replaces 532156546. Price: $42.99 |
| 18 |
5-1107-01 |
HINGE CAP ASM This part replaces 5-1107. Price: $161.71 |
| 18 |
532057079 |
THRUST WASHER Price: $1.99 |
| 19 |
5-1103-01 |
SOCKET ASM-HINGE, LH This part replaces 5-1103. Price: $146.47 |
| 19 |
532160395 |
STEERING SHAFT SUPPORT Price: $8.99 |
| 20 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 21 |
5-1091 |
SPACER Price: $4.98 |
| 22 |
532165857 |
SCREW.HX.WSH.HD Price: $3.99 |
| 22 |
54-4130-01 |
DRAWBAR WA This part replaces 54-4130. Price: $856.13 |
| 23 |
325-10 |
SCREW-HH Price: $1.82 |
| 23 |
531154301 |
SERVICE.KIT SHAFT ASSY SHAFT A This part replaces 532165851. Price: $22.99 |
| 24 |
5-1111 |
CASTOR WHEEL BUSHING Price: $10.11 |
| 25 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 25 |
532154406 |
BRACKET STEERING Price: $6.99 |
| 26 |
54-4110-01 |
PIVOT PIN ASM This part replaces 54-4110. Price: $71.34 |
| 27 |
53-5300-01 |
DRAWBAR PIVOT ASM This part replaces 53-5300. Price: $333.72 |
| 27 |
532136874 |
GEAR.SECTOR Price: $69.99 |
| 28 |
3-6430 |
TONGUE MEMBER WA Price: $561.73 |
| 29 |
53-5230-01 |
SUPPORT-FRAME This part replaces 53-5230. Price: $157.68 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 30 |
3296-24 |
NUT-HEX Price: $4.44 |
| 31 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 32 |
53-4970-01 |
HITCH EXTENSION This part replaces 53-4970. Price: $164.85 |
| 32 |
532170162 |
ROD.ASM.TIE.BALL.JOINT.NOVAN Price: $79.99 |
| 33 |
131-4381-01 |
HITCH-CLEVIS This part replaces 47-3550. Price: $161.64 |
| 33 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 34 |
13-6200 |
PIN-HITCH, POINTED Price: $40.83 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
327-23 |
SCREW-HH Price: $3.60 |
| 35 |
873540500 |
NUT, CROWNLOCK Price: $3.99 |
| 36 |
532155106 |
KIT.BUSHING.STEERING This part replaces 532155099. Price: $8.99 |
| 36 |
54-4250 |
DISCONTINUED Price: Call Us |
| 37 |
3272-38 |
PIN-COTTER Price: $3.05 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
532172092 |
INSERT.CAP.STRG.WH (3 2) (L B) This part replaces 532166626. Price: $12.99 |
| 39 |
819132411 |
Washer 13/32 x 1-1/20 x 11 Gauge Price: $2.99 |
| 40 |
873610600 |
NUT This part replaces 532124701. Price: $2.99 |
| 41 |
532159945 |
STEERING WHEEL ADAPTOR Price: $6.99 |
| 42 |
532145054 |
STEERING BOOT, GRAY This part replaces 532169634. Price: $11.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
532153721 |
SHAFT EXT STEERING This part replaces 532153720. Price: $54.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 47 |
532183226 |
FITTING.GREASE.TAPERED This part replaces 532124836. Price: $4.99 |
| 54 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 62 |
532167914 |
Kit, Steering Assembly, Service Price: Call Us |
| 63 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 66 |
532154404 |
BEARING ARM Price: $3.99 |
| 67 |
872110618 |
BOLT CARRIAGE This part replaces 872140618. Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 79 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 80 |
874950612 |
BOLT.HX.NYLON3/8-16X Price: $4.99 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532169835. Price: $19.99 |
| 85 |
532133835 |
FASTENER.XMAS.TREE Price: $3.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
