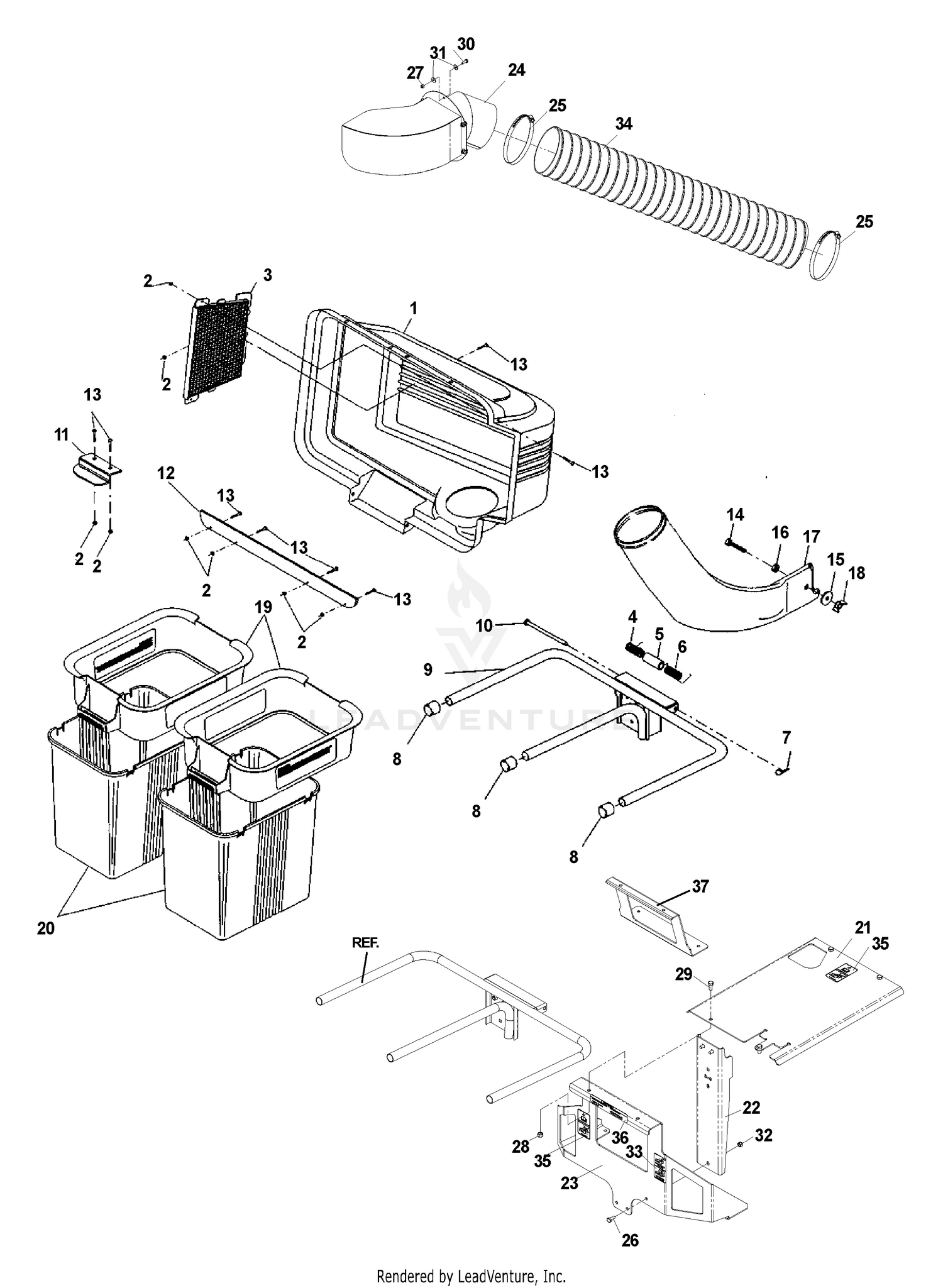

General Assembly

General Assembly

Parts (73)

RefPart NumberDescription
1 33114-016 SCREW-HH This part replaces 48-7700. Price: $0.27
2 3253-4 WASHER-LOCK This part replaces 48-9570. Price: $0.25
2 532063180 NUT, 3/10-24, CROWNLOCK Price: Call Us
3 53-6070 LEVER-BRAKE Price: $361.17
3 532127533 COVER SCREEN Price: $14.99
4 532132796 SPRING COVER LH Price: $5.99
4 59-7240 CONTROL-THROTTLE Price: $74.01
5 48-7890 NUT-HEX Price: $0.25
5 532133235 SPACER.COVER.BAGGER Price: $5.99
6 43-5930 WASHER-LOCK, SPRING Price: $0.75
6 532132983 SPRING COVER RH Price: $5.99
7 3256-22 WASHER-FLAT Price: $0.39
7 532124670 RETAINER-SPRNG RB Price: $5.99
8 25-8640 SCREW-HH Price: $1.09
8 532174083 PLUG, TUBING END Price: $5.99
9 25-9090 SWIVEL Price: $45.44
9 532179746 FRAME.ASM.BAGGER.2BIN.QC42B Price: $89.99
10 3296-13 NUT-LOCK, NI Price: $0.34
10 532192786 BAGGER.HINGE.PIN This part replaces 532128600. Price: $14.99
11 532130895 LATCH CER38 Price: $5.99
11 69-1720 ELEMENT-FILTER This part replaces 58-6610. Price: $57.78
12 2412-31 CLAMP-BODEN Price: $1.56
12 532155042 STRIP.REINFORCE.BAGGER.2BIN.BL Price: $11.99
13 596039001 Screws This part replaces 871161010. Price: $2.99
13 92-9222 CABLE-HANDBRAKE This part replaces 58-7030. Price: $220.53
14 874930620 BOLT, 3/8-16 X 1 1/4 Price: $3.99
14 HY3225 DISCONTINUED This part replaces 322-5. Price: Call Us
15 233-25 KNOB-CONTROL Price: $4.48
15 596140201 Washers This part replaces 819131616. Price: $2.99
16 68-9400 NUT-FLANGE This part replaces 48-7930. Price: $2.29
16 873770600 This part replaces 873750600. Price: $0.87
17 532131970 CHUTE.LOWER.38" This part replaces 539111005. Price: $72.99
17 58-2170-03 BAR-LINKAGE, BRAKE This part replaces 58-2170. Price: $151.21
18 3256-56 WASHER-FLAT Price: $1.15
18 532135651 WING NUT Price: $3.99
19 33094-00 WASHER-PLAIN This part replaces 48-8030. Price: $0.25
19 532183286 CONTAINER TOP This part replaces 532129585. Price: $29.99
20 32104-101 DISCONTINUED Price: Call Us
20 532129586 CONTAINER BOTTOM Price: $59.99
21 539111003 PLATE, W/DECAL Price: $109.99
21 59-7120 DISCONTINUED Price: Call Us
22 539110997 HANGER Price: $32.99
22 58-5550 DISCONTINUED Price: Call Us
23 539109930 REAR BRACKET W/ DECALS Price: $219.99
23 60-2140 SPRING Price: $26.64
24 539110992 INLET Price: $227.99
24 58-2270 NEUTRAL LOCK YOKE W.A. Price: $95.85
25 237-101 O-RING This part replaces 237-123. Price: $2.80
25 539097076 HOSE CLAMP 4-1/8 TO 7" Price: $6.99
26 340-80 FITTING-STR Price: $47.82
26 596030501 SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99
27 340-65 O-RING Price: $3.58
27 582478602 NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99
28 48-6940 SPRING Price: $30.61
28 596240901 GSPW Nuts This part replaces 539976979. Price: $2.99
29 33114-030 SCREW-HH This part replaces 48-7730. Price: $0.50
29 539990134 SCREW 3/8C X 3/4 HEX CAP Price: $3.99
30 58-6560 SIDE CONT. PANEL FACE Price: $57.25
30 596230901 Screws This part replaces 539990580. Price: $2.99
31 340-64 O-RING Price: $4.22
31 597338501 Washers This part replaces 539990598. Price: $12.99
32 58-1670 OIL FILTER BRKT *R Price: $116.06
32 596583702 Nuts This part replaces 539990717. Price: $2.99
33 340-10 Adapter (Incl. Ref. #25 31) Price: $45.09
33 539109929 DECAL, PAYLOAD/GASOLINE Price: $3.99
34 48-7880 NUT-HEX Price: $0.25
34 539110994 HOSE Price: $299.99
35 43-5920 WASHER-LOCK, SPRING This part replaces 48-8000. Price: $0.25
35 539109927 DECAL, UTILITY BOX WARNING Price: $3.99
36 52-6430 WASHER Price: $0.25
36 539109928 DECAL, UTILITY BOX PAYLOAD Price: $2.99
37 3253-4 WASHER-LOCK Price: $0.25
37 539112139 BRACKET, FRT SUPPORT, BLACK This part replaces 539110052. Price: $44.99
