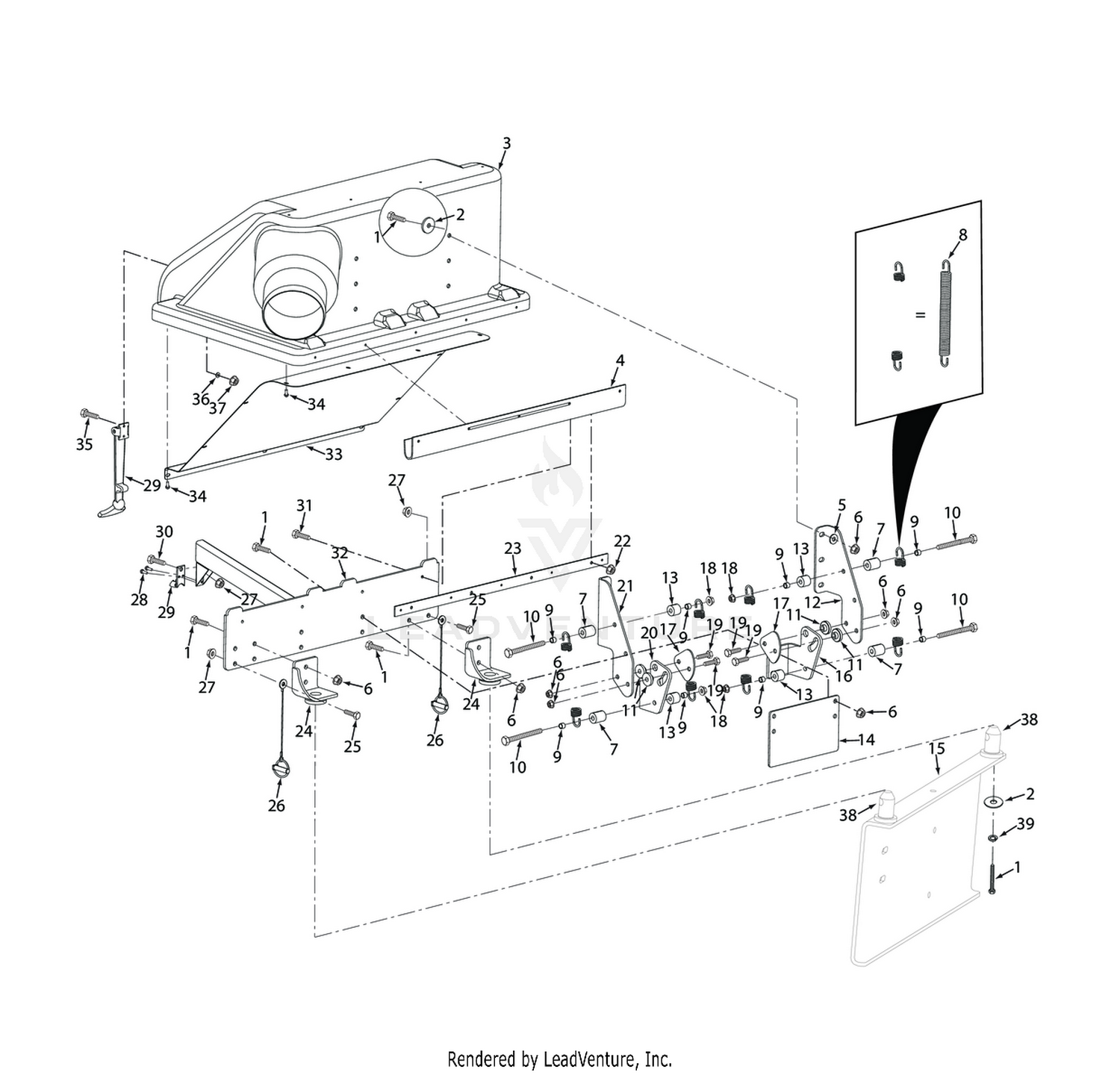

| Ref | Part Number | Description |
|---|
| 1 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 2 |
04041-11 |
Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge Price: Call Us |
| 4 |
483589 |
Diode (part of wire harness) Price: Call Us |
| 5 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 6 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 7 |
43886 |
Spacer Price: Call Us |
| 8 |
482304 |
Spring, Hood Hinge Price: Call Us |
| 9 |
43212 |
Spacer, Deck Assist Price: Call Us |
| 10 |
04001-30 |
Bolt, Hex Head 3/8-16 x 4.00 Price: Call Us |
| 11 |
43546 |
Bushing, Hopper Pivot Price: Call Us |
| 12 |
425830 |
Hinge, Upper LH Price: Call Us |
| 13 |
43277 |
SPACER, J-PULL ROD Price: Call Us |
| 14 |
427840 |
Plate, Support Price: Call Us |
| 15 |
427790 |
Bag Support Plate Price: Call Us |
| 16 |
425875 |
Hinge, Lower LH Price: Call Us |
| 17 |
425832 |
Guard, GC Hinge Price: Call Us |
| 18 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 19 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 20 |
425876 |
Hinge, Lower RH Price: Call Us |
| 21 |
425831 |
Hinge, Upper RH Price: Call Us |
| 22 |
04021-02 |
Bolt, Hex Hd. 1/2-13 x 9-1/2" Price: Call Us |
| 23 |
424753 |
Retainer, Seal Price: Call Us |
| 24 |
453016 |
Receiver, Weldment Price: Call Us |
| 25 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 26 |
483596 |
Quick Pin Assembly Price: Call Us |
| 27 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 28 |
04090-03 |
Rivot, 3/16 x .402 POP Price: Call Us |
| 30 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 31 |
04001-01 |
BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5 Price: Call Us |
| 32 |
452675 |
Frame Weldment, Bag Support Price: Call Us |
| 33 |
424731 |
Screen, GC Hood Price: Call Us |
| 34 |
04090-02 |
Pop Rivet, 3/16 x .652" Price: Call Us |
| 35 |
04010-25 |
Screw, #10-32 x 3/4" Price: Call Us |
| 36 |
04041-19 |
Flatwasher, 3/16 (.196 x .469 x .048) Price: Call Us |
| 37 |
04021-01 |
HEX NUT, ELASTIC STOP LOCK # 10-32 Price: Call Us |
| 38 |
43884 |
Pin, GC Locator Price: Call Us |
