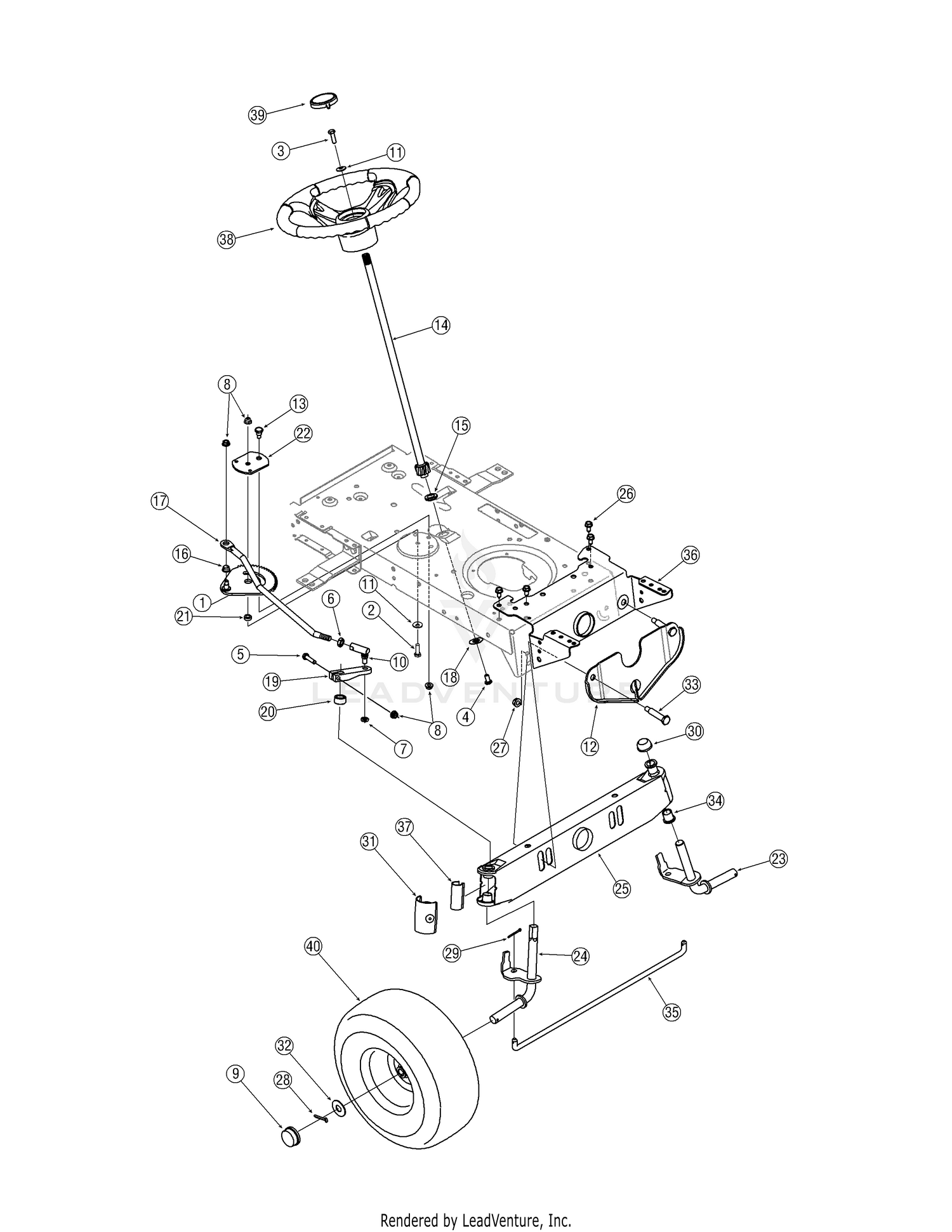

| Ref | Part Number | Description |
|---|
| 1 |
617-04024A |
Front Steering Gear Assembly Not Available This part replaces 617-04024. Price: |
| 2 |
710-0376 |
Screw, 5/16-18, 1.00, Gr5 Price: $3.66 |
| 3 |
710-0643 |
Screw, 5/16-18, 1.00, Gr5, Lock Price: $5.99 |
| 4 |
710-1309 |
Screw, Mach, 5/16-18, 0.750 Price: $3.86 |
| 5 |
710-3180 |
Screw, 5/16-18, 1.75, Gr5 Price: $4.93 |
| 6 |
912-0240 |
Nut, Jam, 7/16-20, Gr2 This part replaces 712-0240. Price: $3.90 |
| 7 |
712-0262 |
Nut, Jam Lock, 3/8-24, Gr2 Price: $3.90 |
| 8 |
712-04063 |
Nut, Flange Lock, 5/16-18, Grf, Nylon Price: $3.56 |
| 9 |
931-0484A |
HUB CAP-BLACK This part replaces 731-0484A. Price: $5.98 |
| 10 |
923-0448A |
Ball Joint, 7/16-20, Lock This part replaces 723-0448A. Price: $22.55 |
| 11 |
736-0242 |
Washer, Bell, .340 x .872 x .060 Price: $3.75 |
| 12 |
783-04568 |
Front Hanger Bracket, Deck Price: $36.53 |
| 13 |
738-04141 |
Screw, Shoulder, .435 x .3485, 5/16-18 Price: $4.89 |
| 14 |
738-0919B |
Steering Shaft This part replaces 738-0919. Price: $51.87 |
| 15 |
741-04124 |
Bearing, Flange, Hex 5/8 Price: $4.89 |
| 16 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 17 |
747-05385A |
Steering Link This part replaces 747-04298. Price: $18.41 |
| 18 |
948-0389 |
Cap, 1.25 x .16 This part replaces 748-0389. Price: $4.40 |
| 19 |
748-04278 |
Steering, Block This part replaces 748-04065. Price: $18.48 |
| 20 |
748-04068 |
Spacer, .710 ID x .125 OD x .56 Price: $3.56 |
| 21 |
750-04418 |
Spacer, .322 ID x .625 OD x .21 Price: $5.94 |
| 22 |
783P08577A |
STABILIZER PLATE This part replaces 783-04644. Price: $6.48 |
| 23 |
938-04007A-0637 |
Axle, Front LH This part replaces 638-04007. Price: $40.50 |
| 24 |
638-04008P |
Axle, Front RH This part replaces 638-04008. Price: $45.37 |
| 26 |
710-0726 |
Screw, 5/16-12, 0.750 Price: $3.82 |
| 27 |
712-04065 |
Nut, Flange Lock, 3/8-16, Gr F, Nylon Price: $3.68 |
| 28 |
714-0162 |
COTTER PIN-5/32 DIA This part replaces 714-04039. Price: $4.29 |
| 29 |
714-0470 |
Pin, Cotter, 1/8 x 1.25 Price: $3.90 |
| 30 |
726-0341 |
Push Cap, 3/4 Price: $4.26 |
| 31 |
931-1291A |
Pivot Bar End Cap w/ fitting This part replaces 731-1291A. Price: $13.96 |
| 32 |
736-0316 |
Washer, Flat, .78 x 1.59 x .060 Price: $4.02 |
| 33 |
738-04128 |
Screw, Shoulder, .500 x 2.380, 3/8-16 Price: $6.67 |
| 34 |
741-0660A |
Bearing, Flange, .760 x .941 x 1.0 Price: $2.92 |
| 35 |
747-04299A |
Tie Rod This part replaces 747-04299. Price: $26.83 |
| 36 |
783-04601C |
Bracket, Pivot This part replaces 783-04601. Price: $40.47 |
| 37 |
731-04057A |
Axle End Cap, Standard Price: $4.59 |
| 38 |
631-04028 |
Steering Wheel, Standard Grip Price: $64.50 |
| 39 |
731-04039 |
Cap, Steering Wheel (no logo) Price: $7.17 |
| 39 |
731-04040 |
Cap, Steering Wheel (sprig logo) Price: $8.69 |
| 39 |
731-04681 |
Cap, Steering Wheel (tine logo) Price: $12.40 |
| 40 |
634-05067-0911 |
Wheel Assembly Complete, 15 x 6 Price: $163.07 |
| 40 |
734-1731-0901 |
Tire Only 15 x 6 x 6 Price: $46.14 |
